Brand: Albion Casters
SKU: 16AN08228S
Size: 8" x 2"
Type: Swivel Caster
Material: MAX-Efficiency Orange Wheel
Feature: Floor Protective, USA-Rig
Load Capacity: 1250 lb
Mount Height: 9.5 in
Fastening: 4" x 4-1/2" top plate
Origin: Made in USA

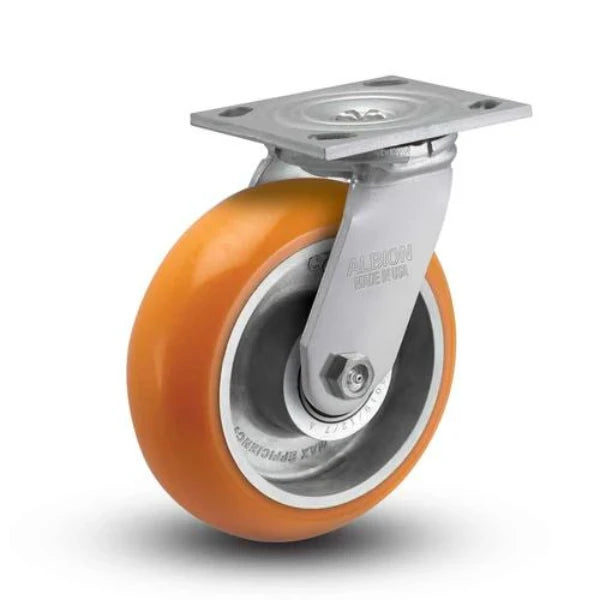

The Albion Casters 8" x 2" Swivel Caster with MAX-Efficiency Orange Wheel is crafted for superior durability and performance. Featuring a floor-protective design, this caster is ideal for high-traffic and heavy-duty applications. The 8" x 2" size, combined with advanced wheel technology, ensures smooth operation and maximum efficiency, making it perfect for industrial and commercial settings. Designed to offer robust floor protection and minimal maintenance, this caster stands out for its high load capacity and long-lasting reliability. Choose this caster for enhanced maneuverability and performance in demanding environments.
Our knowledgeable team is available Monday through Friday, 8 am - 5 pm to answer any questions and help you select the perfect caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 8" x 2" Swivel Caster with MAX-Efficiency Orange Wheel is engineered to deliver exceptional durability and performance. Designed for heavy-duty use, this caster is ideal for both industrial and commercial applications, providing smooth and reliable operation in high-traffic areas.
Our dedicated team is available Monday through Friday, 8 am - 5 pm to assist with any questions and help you select the perfect caster for your needs. Enjoy peace of mind with our 3-year warranty and exceptional support.
This Albion 16AN08228S 8" x 2" Orange Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$121.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
8" x 2" Swivel Caster Yoke 4" x 4-1/2" Top Plate Zinc 1,250 lb | CasterHQ
8" x 2" · 1250 lbs
$16
8" x 2" Phenolic Rigid Caster 4" x 4-1/2" Plate – 1,250 lb | CasterHQ
8" x 2" · 1250 lbs · Direct fit
$30
8" x 2" Semi-Steel Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2" · 1250 lbs · Direct fit
$43
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | — | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbs | 8" × 2"Polyurethane | Swivel | 9.5" | $121.00 | Viewing | |
| 1250 lbsSame capacity | 8" × 2"Phenolic | Rigid | — | $30.00 | View → | |
| 1250 lbsSame capacity | 8" × 2"Cast Iron | Rigid | 9-1/2" | $43.00 | View → |
