Technical Specifications

• SKU: 18AN08228SL
• Raceway Type: Large, sealed precision ball bearing raceway for maintenance-free operation
• Brake: None
• Load Capacity: 1500 lb

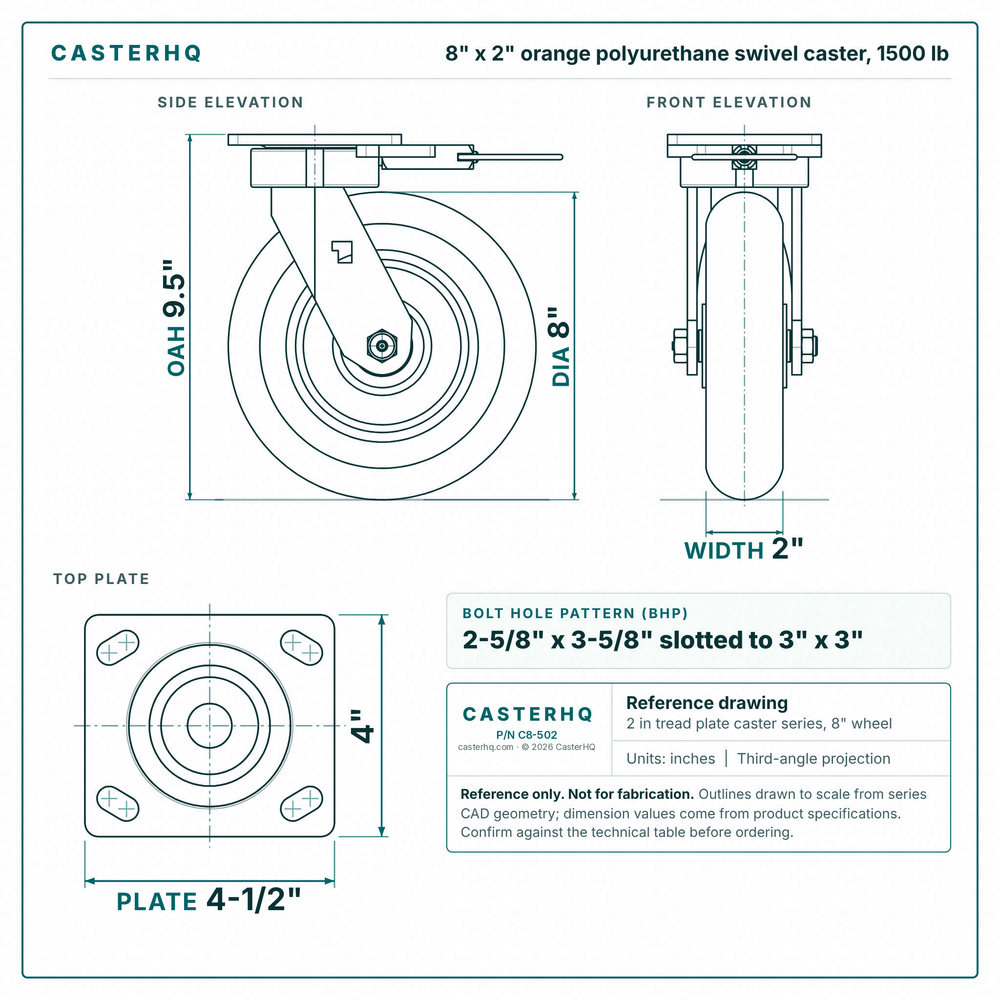

• Mounting Height: 9.5 in
• Wheel Tread Width: 2 in
• Wheel Description: AN - Round Polyurethane with Aluminum Core
• Wheel Color: Orange Tread on Aluminum Core
• Wheel Bearing: Precision Ball
• Wheel Profile: Radius Tread
• Wheel Hardness: 85 Shore A
• Wheel Thread Guards: None
• Fastening: 4-1/2'' x 4'' top plate
• Bolt Hole Pattern: 2-5/8" x 3-3/8" slotted to 3" x 3"
• Plate Bolt Size Recommended: 3/8"
• Swivel Radius: 5.75 in
• Swivel Lock: Hand Operated Swivel Lock (L)
• Toe Guard: None
• Finish: Zinc
• Operating Temperature Range: -40°F to +180°F
• Manufacturing Model: 18AN08228SL
• Warranty: 1 year
• Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

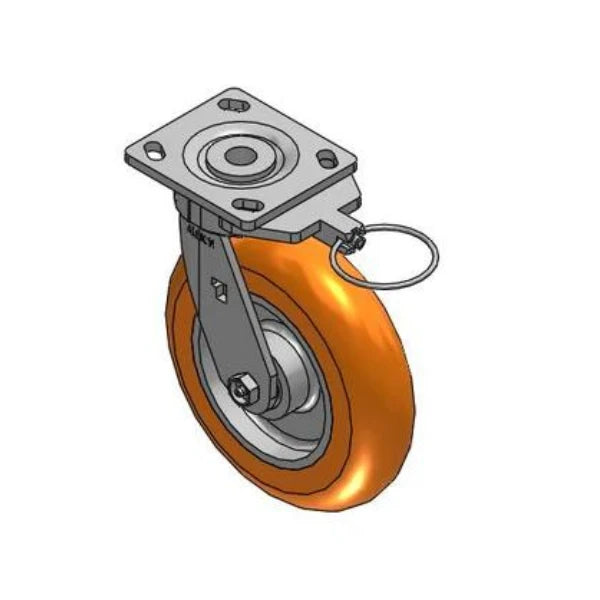

Albion Casters 8" x 2" Maintenance-Free - MAX Efficiency Orange Caster with 4" x 4.5" Plate and Swivel Lock - 18AN08228SL

Product Overview

Brand: Albion Casters

SKU: 18AN08228SL

Size: 8" x 2"

Type: Swivel Caster with Lock

Material: MAX Efficiency Orange Wheel

Feature: Maintenance-Free, Swivel Lock, Floor Protective

Load Capacity: 1500 lb

Mount Plate: 4" x 4.5"

Origin: Made in USA

Albion Casters 8" x 2" Maintenance-Free Swivel Caster with MAX Efficiency Orange Wheel and Swivel Lock is designed for enhanced performance and control. This caster combines durability with innovative wheel technology, ensuring superior floor protection and maintenance-free operation. The 4" x 4.5" mounting plate and swivel lock feature provide added stability and safety, making it ideal for heavy-duty industrial and commercial applications. With a robust load capacity of 1500 lb, this caster is engineered to support demanding tasks while reducing maintenance needs and improving maneuverability.

Dedicated Customer Support

Our knowledgeable support team is available Monday through Friday, 8 am - 5 pm to assist with any questions and help you select the optimal caster solution for your requirements.

Top 10 Features of Albion Casters 8" x 2" Maintenance-Free Swivel Caster

• Premium MAX Efficiency Orange Wheel: Provides superior performance and durability, designed for long-lasting use.
• Maintenance-Free Operation: Eliminates the need for frequent upkeep, ensuring smooth and reliable performance with minimal maintenance.
• Heavy-Duty Load Capacity: Supports up to 1500 lbs, making it suitable for handling heavy loads and demanding applications.
• Swivel Lock Feature: Enhances stability and control by allowing the caster to be locked in place, preventing unwanted movement.
• 4" x 4.5" Mounting Plate: Provides a secure and stable attachment to various surfaces, ensuring reliable operation in industrial settings.
• Floor Protective Design: Engineered to minimize damage to floors, reducing wear and tear and extending the life of your flooring.
• Made in the USA: Crafted with high-quality materials and manufacturing standards, guaranteeing superior reliability and performance.
• Versatile Swivel Caster: Ideal for both industrial and commercial applications, offering smooth maneuverability and flexibility.
• Enhanced Maneuverability: The 8" x 2" size ensures efficient movement and easy navigation under heavy loads.
• Advanced Wheel Technology: Features cutting-edge wheel design for improved efficiency and reduced rolling resistance.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Albion Casters 8" x 2" Maintenance-Free Swivel Caster

Overview

The Albion Casters 8" x 2" Maintenance-Free Swivel Caster is engineered for high performance and durability. Featuring the advanced MAX Efficiency Orange Wheel, this caster provides superior maneuverability and floor protection, making it ideal for a variety of industrial and commercial applications. Designed to handle heavy loads with ease, it combines maintenance-free operation with cutting-edge technology for exceptional reliability.

Key Features

• Maintenance-Free Operation: The sealed precision ball bearing raceway eliminates the need for routine maintenance, ensuring a hassle-free experience.
• Heavy-Duty Load Capacity: Supports up to 1500 lbs, making it suitable for heavy-duty applications and environments.
• High-Performance Wheel: The 8" x 2" MAX Efficiency Orange Wheel with a radius tread and 85 Shore A hardness provides smooth and efficient maneuverability.
• Swivel Lock Feature: Includes a hand-operated swivel lock for enhanced stability and control, ideal for applications requiring fixed positioning.
• Durable Construction: Made with an aluminum core and zinc finish, ensuring long-lasting durability and resistance to harsh conditions.
• Versatile Mounting Options: Features a 4-1/2" x 4" top plate with a bolt hole pattern slotted from 2-5/8" x 3-3/8" to 3" x 3" for flexible installation.
• Wide Operating Temperature Range: Operates effectively in temperatures ranging from -40°F to +180°F, suitable for diverse environments.
• Conformity and Standards: RoHS compliant with zinc plating and tested to ANSI ICWM:2012 standards for capacity and durability, ensuring high quality and safety.

Applications

This caster is perfect for use in industrial settings, commercial environments, and any application that requires reliable load-bearing capabilities and easy maneuverability. Whether used on equipment, machinery, or furniture, the Albion Casters 8" x 2" Swivel Caster ensures optimal performance and minimal maintenance.

Warranty and Support

The caster comes with a 1-year warranty, reflecting our commitment to quality and customer satisfaction. For any questions or assistance, our dedicated support team is available Monday through Friday, 8 am - 5 pm, to provide expert guidance and support.
