Brand: Albion Casters
SKU: 18AX08228S
Size: 8"x2"
Type: Floor Protective Maintenance-Free Swivel Caster
Wheel Type: MAX-Efficiency Maroon Wheel
Load Capacity: 1250 lb
Mount Height: 9.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

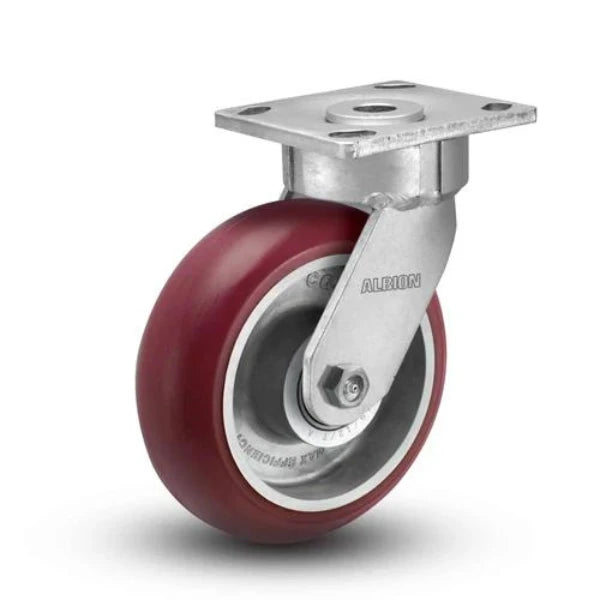

The Albion Casters 8" x 2" Floor Protective Maintenance-Free Swivel Caster with MAX-Efficiency Maroon Wheel combines advanced engineering with superior materials to provide exceptional performance. Designed to be maintenance-free, this caster offers a load capacity of 1250 lbs, making it ideal for heavy-duty applications. The 9.5" mount height and 4" x 4-1/2" top plate ensure a secure fit on a wide range of equipment. Its floor-protective design helps prevent damage to sensitive surfaces, while the maroon wheel enhances efficiency and durability. Manufactured in the USA, this caster exemplifies Albion Casters' commitment to quality and reliability in demanding industrial environments.
Our dedicated Caster Experts are available Monday through Friday, 8 am - 5 pm, to address any questions and help you select the perfect caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 8" x 2" Swivel Caster with MAX-Efficiency Maroon Wheel is engineered for superior performance and durability. Designed for heavy-duty applications, this caster offers a load capacity of 1250 lbs, making it suitable for demanding industrial environments. The maintenance-free sealed precision ball bearing raceway ensures smooth operation and long-lasting reliability.
Our team of experienced Caster Experts is available Monday through Friday, 8 am - 5 pm to assist with any questions you may have. We are committed to helping you find the perfect caster for your needs and ensuring your satisfaction with our products.
This Albion 18AX08228S 8" x 2" Maroon Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

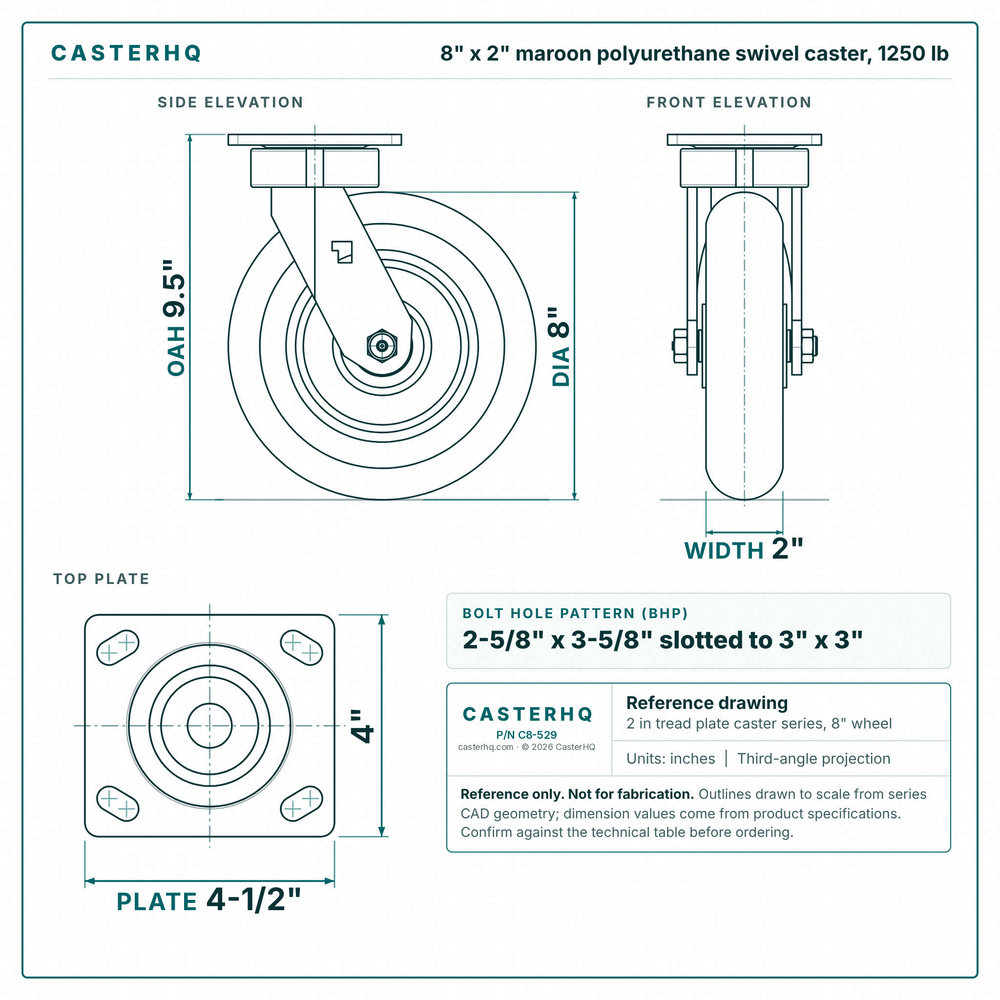

The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$123.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Frame Material | Zinc Plated Steel |
