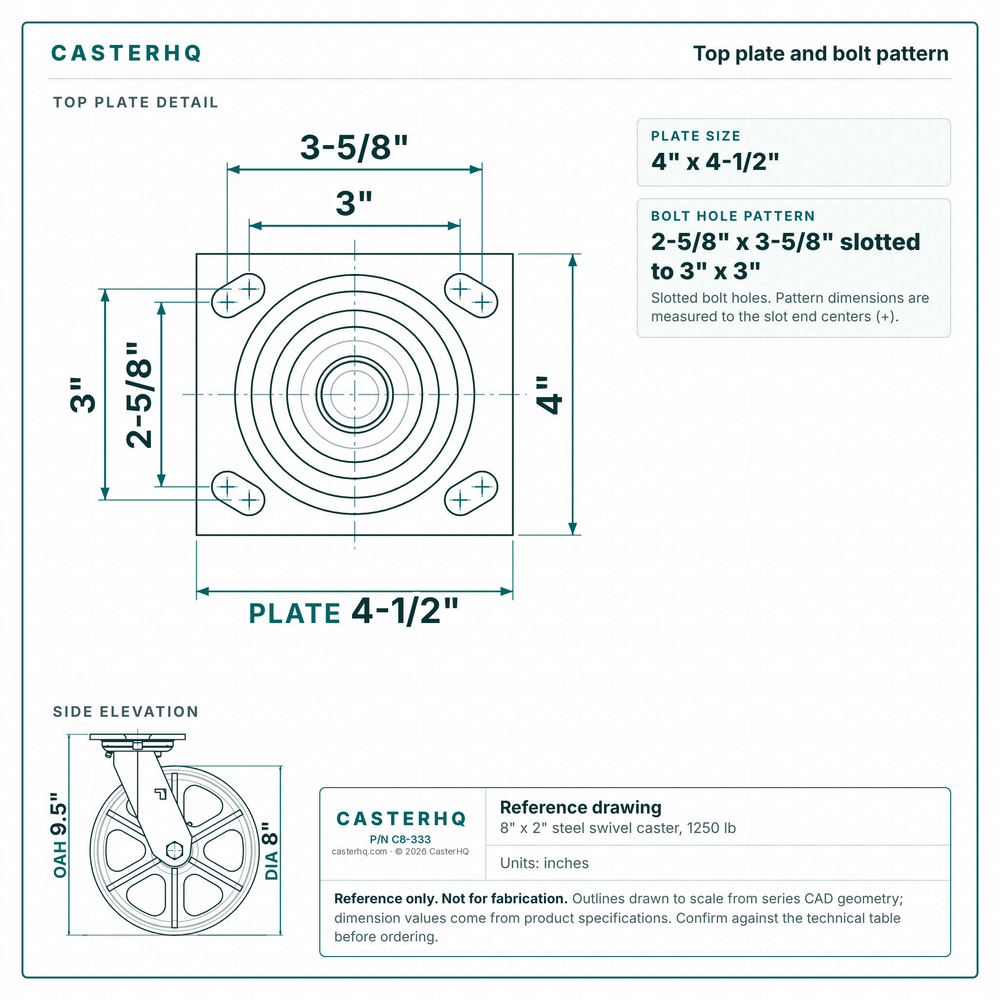

![Top plate bolt pattern drawing, ["4\" x 4-1/2\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-333-top-plate-drawing_100x.png?v=1792277961)

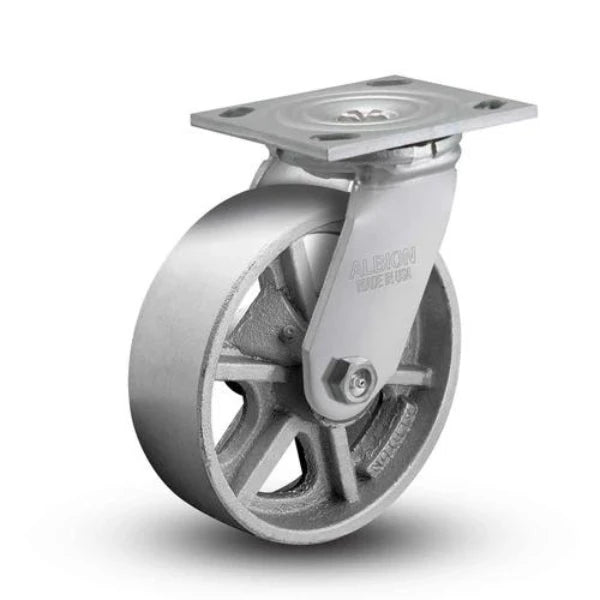

Upgrade your mobility solutions with the Albion Casters 8" x 2" USA-Rig Swivel Caster. Constructed from heavy-duty cast iron, this swivel caster ensures exceptional durability and reliability, making it ideal for industrial and commercial settings. The 4" x 4-1/2" plate provides a secure attachment, while the 360-degree swivel functionality allows for easy maneuverability, even in tight spaces.
Engineered for high load capacities, this caster is perfect for heavy machinery, carts, and equipment requiring robust support. Its precision design minimizes friction, allowing for smooth and quiet operation. Experience peace of mind knowing that your equipment is equipped with a caster built to withstand the rigors of daily use.
Enhance your equipment's performance and durability with the Albion Casters 8" x 2" USA-Rig Swivel Caster. Click below to add this high-quality caster to your cart and experience the difference in mobility and reliability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 8" x 2" USA-Rig Swivel Caster with a heavy-duty cast iron wheel is engineered to deliver exceptional performance in demanding environments. Designed specifically for industrial and commercial applications, this caster provides robust support and maneuverability for heavy machinery and equipment.
Manufactured from heavy-duty cast iron, this swivel caster is built to withstand the rigors of daily use. Its robust design ensures longevity, reducing the need for frequent replacements and contributing to overall cost savings in maintenance.
Featuring a 4" x 4.5" plate, the caster provides a secure attachment, while the 360-degree swivel functionality allows for easy navigation in tight spaces. This ensures that equipment can be maneuvered smoothly and efficiently, minimizing disruptions in workflow.
Designed for high load capacities, this caster is ideal for a variety of applications, including carts, industrial equipment, and heavy machinery. It provides the necessary support to handle demanding workloads without compromising performance.
Installation is straightforward, allowing for quick mounting on various surfaces. The caster’s design emphasizes ease of use, making it a practical choice for both professionals and DIY enthusiasts.
Choosing Albion Casters means investing in quality and reliability. This caster not only enhances mobility solutions but also provides peace of mind with its durable construction and high performance. Optimize your operations today by incorporating this essential mobility tool into your equipment lineup.
Experience the difference in mobility and durability with the Albion Casters 8" x 2" USA-Rig Swivel Caster. Click below to add this high-quality caster to your cart and enhance your equipment's performance!
This Albion 16CA08201S 8" x 2" Cast Iron Swivel Caster – 4" x 4-1/2" Plate is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$82.00
| Identification | |
|---|---|
| Part Number / SKU | 16CA08201S |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9.5" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-3/4" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-3/4" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Brinell 145 |
| Wheel Color | Grey Enamel |
| Bearing Type | Roller Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 800°F |
| Warranty | 3 Years |

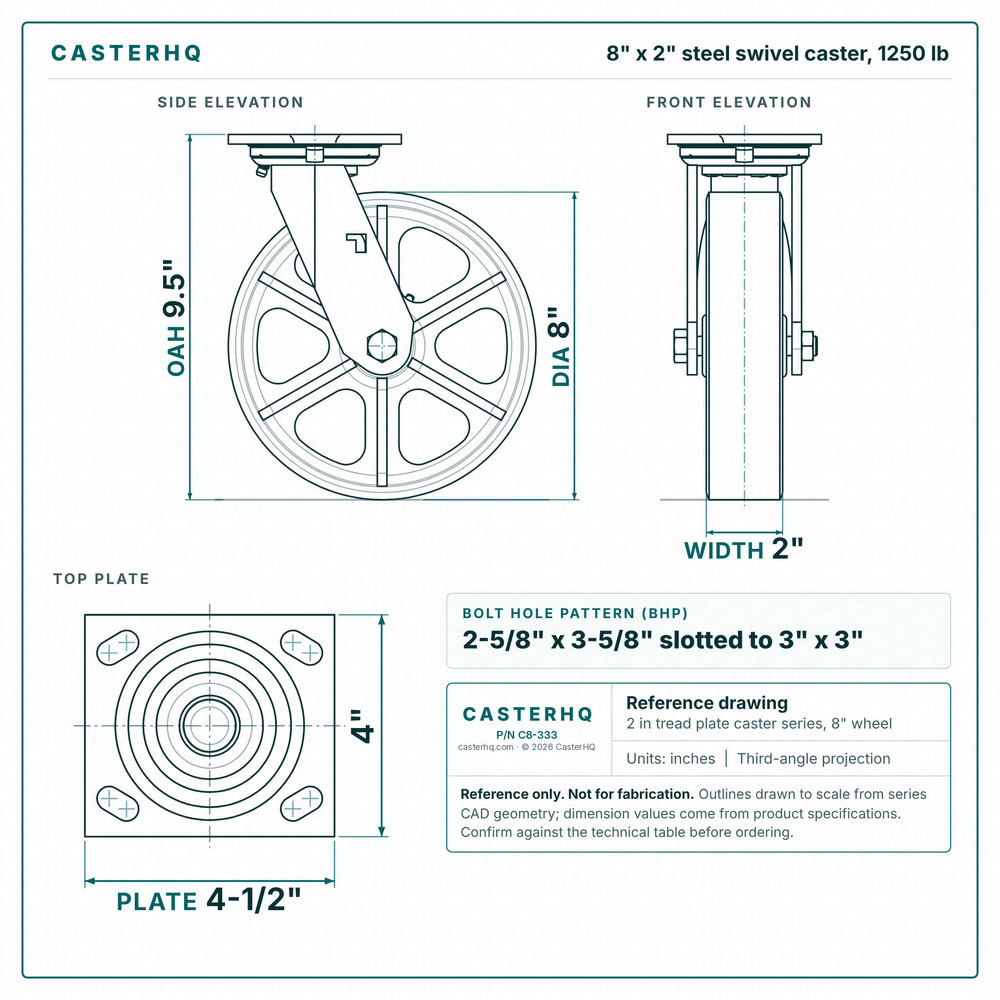

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbs | 8" × 2"Cast Iron | Swivel | 9.5" | $82.00 | Viewing | |
| 1250 lbsSame capacity | 8" × 2"Phenolic | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbsSame capacity | 8" × 2"Semi-Steel | Rigid | 9-1/2" | $43.00 | View → |
