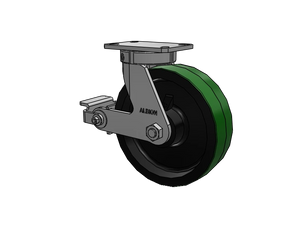

Upgrade your equipment with the Albion Casters Kingpinless 10" x 3" Green Poly-on-Iron Caster. Designed for durability and optimal performance, this caster features a kingpinless design that enhances its longevity and ensures a smoother ride. The green polyurethane wheel, combined with an iron core, offers excellent shock absorption and wear resistance. The included Poly-Cam Brake provides reliable stopping power, making it ideal for heavy-duty applications. With its large 10" diameter and robust 6.25" x 4.5" plate, this caster is perfect for equipment requiring sturdy support and easy maneuverability.
Choose the Albion Casters Kingpinless Caster to ensure smooth and reliable performance. The innovative design and high-quality materials make this caster an excellent choice for industrial and heavy-duty applications. Invest in quality and durability for improved efficiency in your operations.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

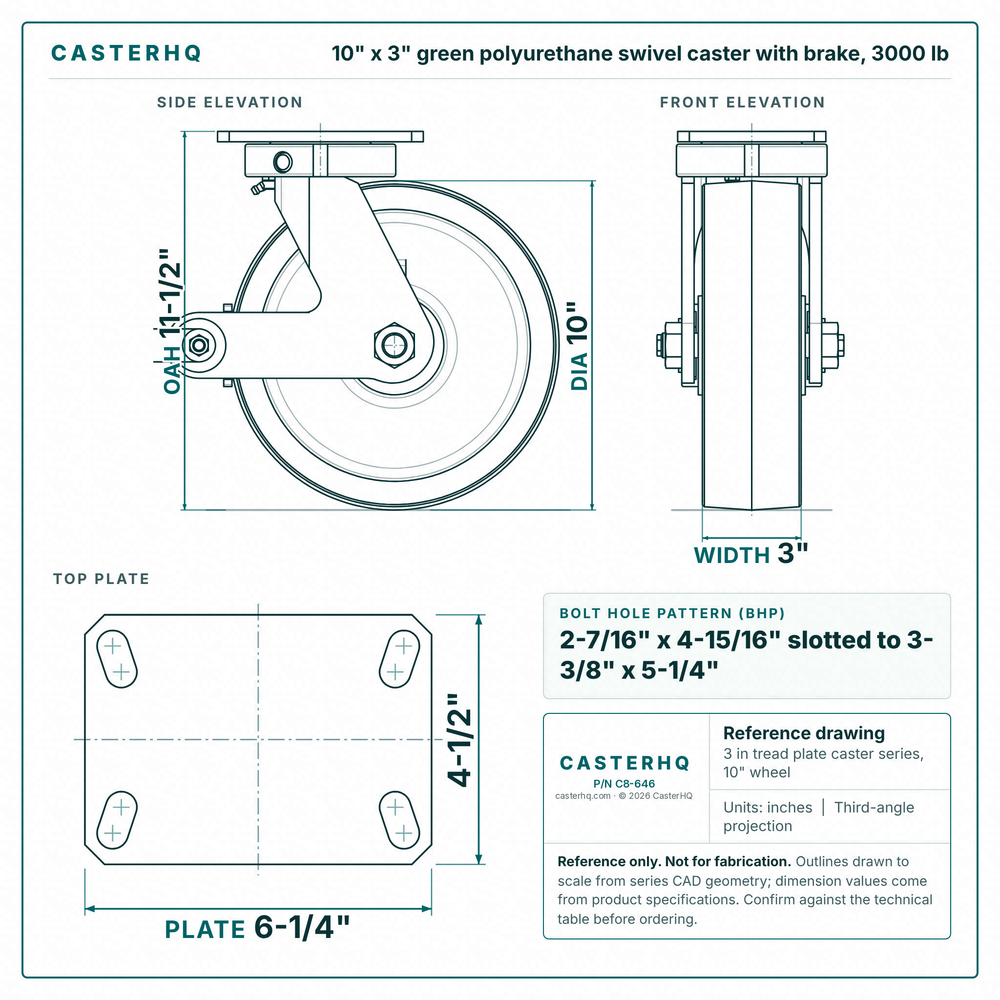

The Albion Casters Kingpinless 10" x 3" Green Polyurethane on Iron Caster is engineered for exceptional performance and durability. Ideal for heavy-duty industrial applications, this caster features a kingpinless design that enhances its lifespan and reduces maintenance needs. The 10-inch diameter and 3-inch width wheels provide excellent load support and stability, making it suitable for demanding environments.
Investing in the Albion Casters Kingpinless Caster means choosing a product designed to enhance the performance and longevity of your equipment. The innovative kingpinless design reduces maintenance requirements and extends the caster’s lifespan, while the polyurethane wheels ensure smooth, quiet operation. The Poly-Cam Brake provides added safety and control, making this caster a reliable choice for heavy-duty industrial applications.
Choose the Albion Casters Kingpinless Caster for superior durability and performance. Experience the benefits of its advanced design and high-quality materials in your industrial operations. Upgrade to the Albion Casters Kingpinless Caster today and enjoy reliable, smooth, and efficient mobility for your heavy-duty equipment.
This Albion 310PY10501SP 10"x3" Poly-on-Iron Kingpinless Caster w/ Brake is rated to 3000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 11-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$401.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 11-1/2" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Iron |
| Frame Material | Zinc Plated Steel |
