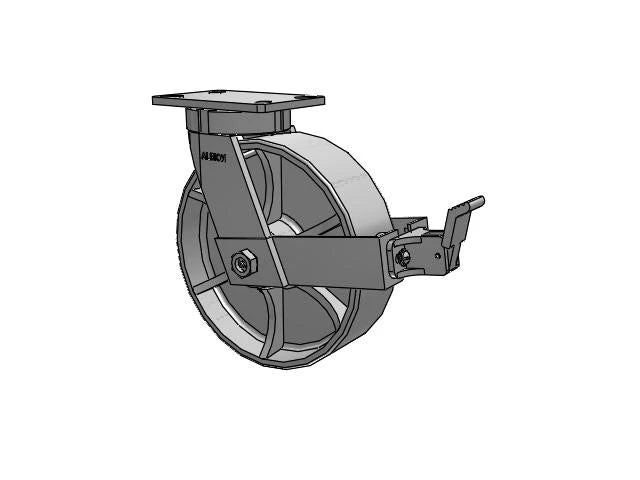

The Albion Casters Value Kingpinless 10" x 3" Cast Iron Wheel Caster with Face Brake offers robust durability and superior performance for heavy-duty applications. Featuring a large 10" diameter wheel and a sturdy 6.25" x 4.5" plate, this caster is built to withstand significant loads and provide reliable, smooth movement. The kingpinless design minimizes maintenance and increases longevity, while the integrated face brake ensures precise control and safety during operation. Ideal for industrial environments where strength and reliability are paramount, this caster combines rugged cast iron construction with an effective braking system for optimal performance.
Upgrade your industrial equipment with the Albion Casters Value Kingpinless Caster. Experience the durability and control offered by the cast iron construction and face brake, designed for heavy-duty applications and superior performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Value Kingpinless 10" x 3" Cast Iron Wheel Caster is engineered to deliver exceptional performance in demanding industrial settings. With its robust 10-inch diameter wheel and durable cast iron construction, this caster is designed to handle substantial loads while providing smooth, reliable movement.
The kingpinless design enhances durability and reduces maintenance, making it an ideal choice for environments where reliability is crucial. The 3-inch wide wheel offers increased stability and supports heavy-duty applications, while the face brake ensures precise control and safety during operation.
The caster's 6.25" x 4.5" plate provides a solid mounting base, accommodating various equipment setups. This combination of features makes the Albion Casters Value Kingpinless Caster a versatile and high-performing solution for industrial mobility needs.
The Albion Casters Value Kingpinless Caster is a top choice for professionals seeking a reliable solution for heavy-duty mobility challenges. Its cast iron construction and kingpinless design offer a combination of durability and low maintenance, while the face brake provides enhanced control for secure operation. Perfect for use in various industrial settings, this caster ensures long-lasting performance and efficiency.
This Albion 370CA10501SFBB 10" x 3" Cast Iron Kingpinless Caster w/ Brake is rated to 2800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

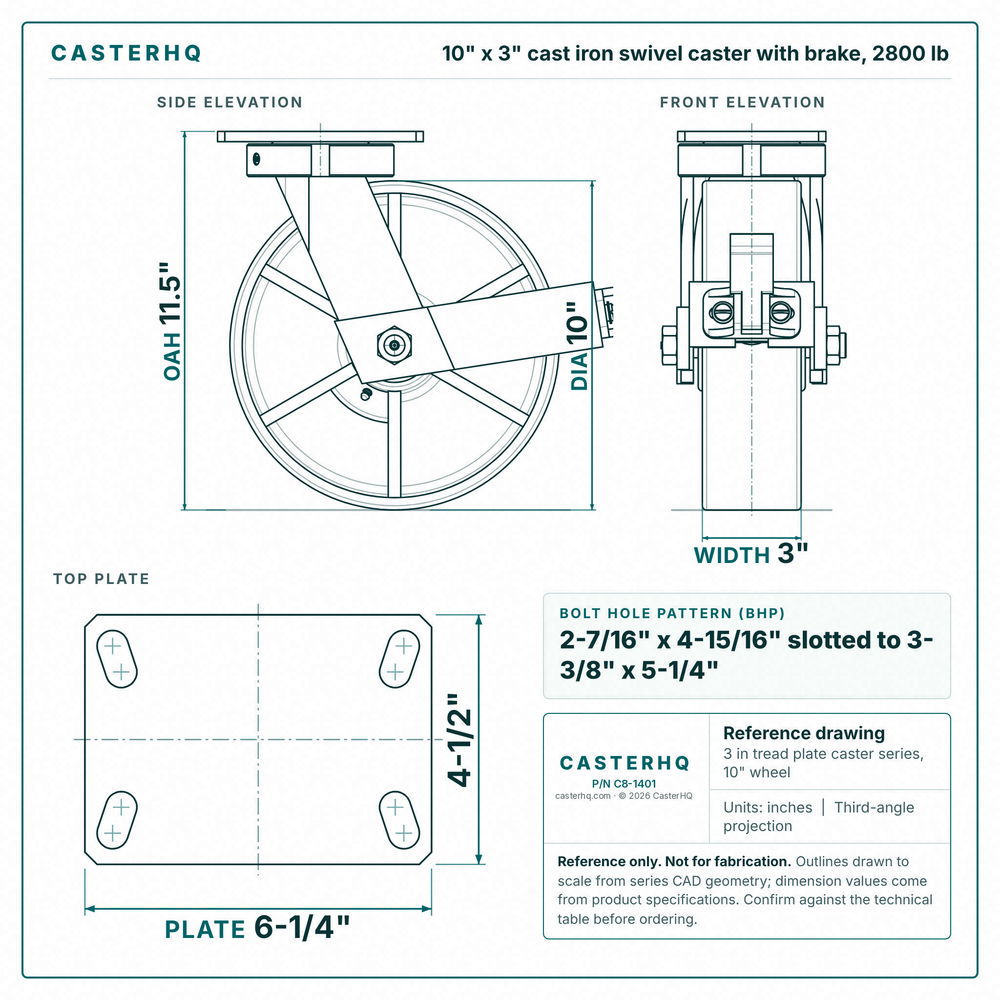

The overall height (floor to top of plate or stem) is 11.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$334.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 11.5" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 2800 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
