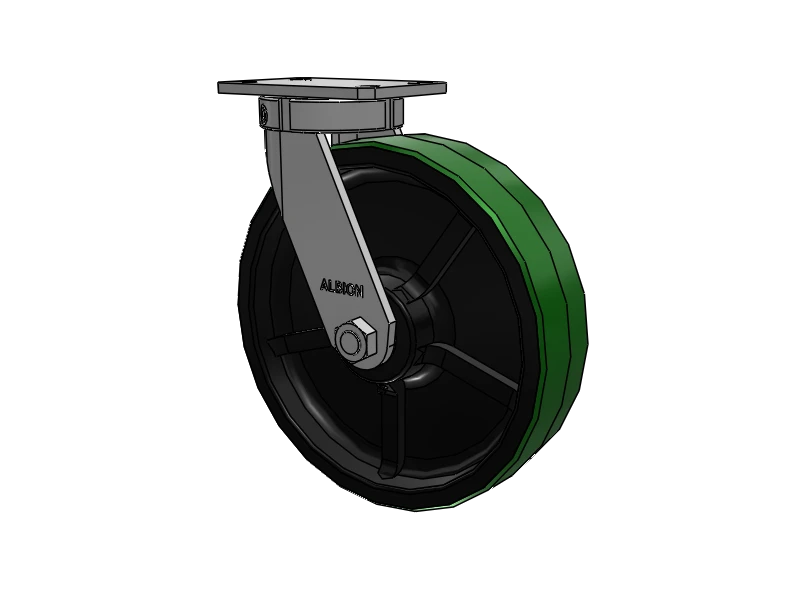

Upgrade your industrial setup with the Albion Casters Kingpinless 12" x 3" Green Poly-on-Iron Caster. This high-performance caster is built with a robust poly-on-iron design that ensures longevity and reliability in demanding environments. The 6.25" x 4.5" plate provides enhanced stability and strength, while the kingpinless feature reduces maintenance and improves maneuverability. Ideal for heavy-duty applications, this caster combines a striking green color with exceptional durability, offering smooth and stable movement even under heavy loads.
Invest in the Albion Casters Kingpinless Caster for superior performance and durability. Its poly-on-iron construction and kingpinless design are engineered to meet the needs of heavy-duty industrial applications. Experience enhanced stability, reduced maintenance, and a smooth ride with this premium caster solution.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Kingpinless 12" x 3" Green Poly-on-Iron Caster is engineered to offer unparalleled performance in demanding industrial settings. Featuring a robust 12-inch diameter and a 3-inch width, this caster is designed for heavy-duty applications, providing reliable support and stability for your equipment. Its kingpinless design enhances durability and maneuverability, reducing maintenance and extending the lifespan of the caster.
The Albion Casters Kingpinless Caster is designed to meet the rigorous demands of industrial environments. Its kingpinless design minimizes the need for frequent maintenance while providing exceptional maneuverability and durability. The poly-on-iron construction ensures long-lasting performance and the ability to handle heavy loads with ease. By choosing this caster, you invest in a product that enhances operational efficiency and reduces downtime, making it a valuable addition to your industrial equipment.
This Albion 310PY12501S 12" x 3" Poly-on-Iron Kingpinless Caster – 6.25" x 4.5" Plate is rated to 3500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

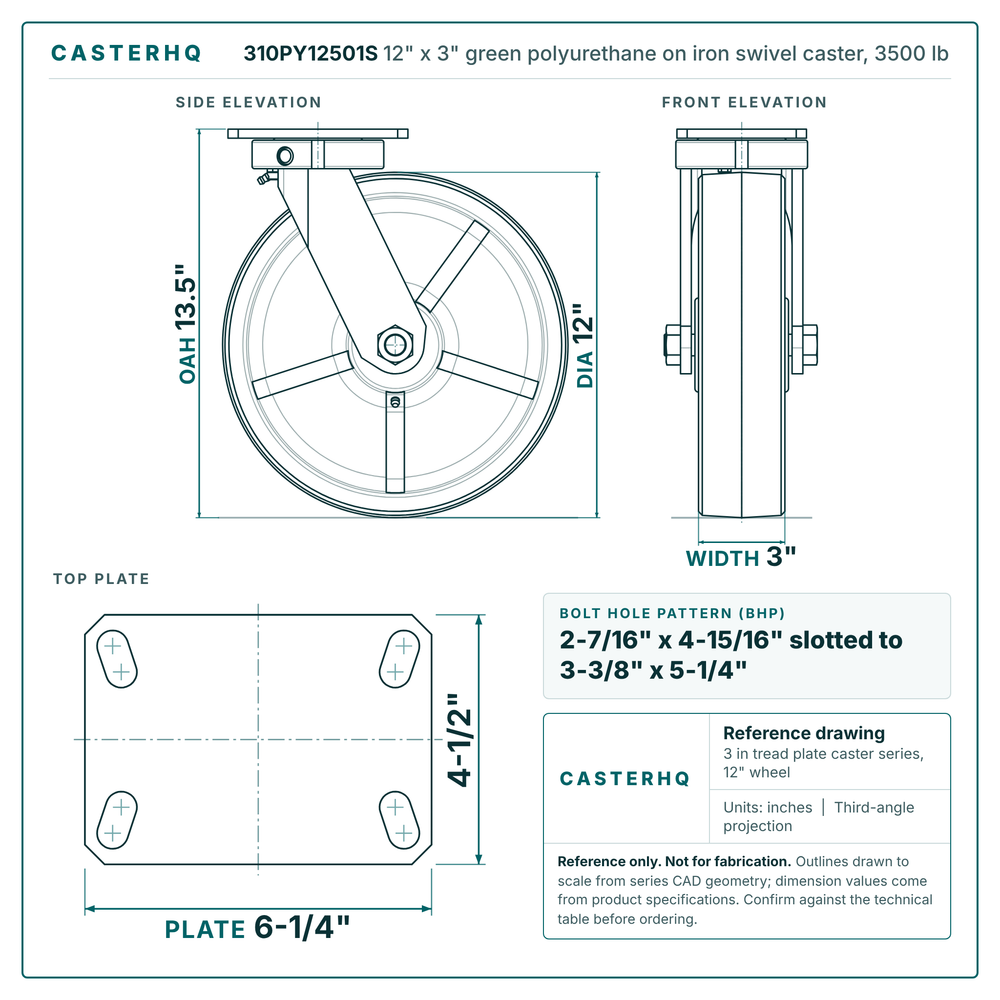

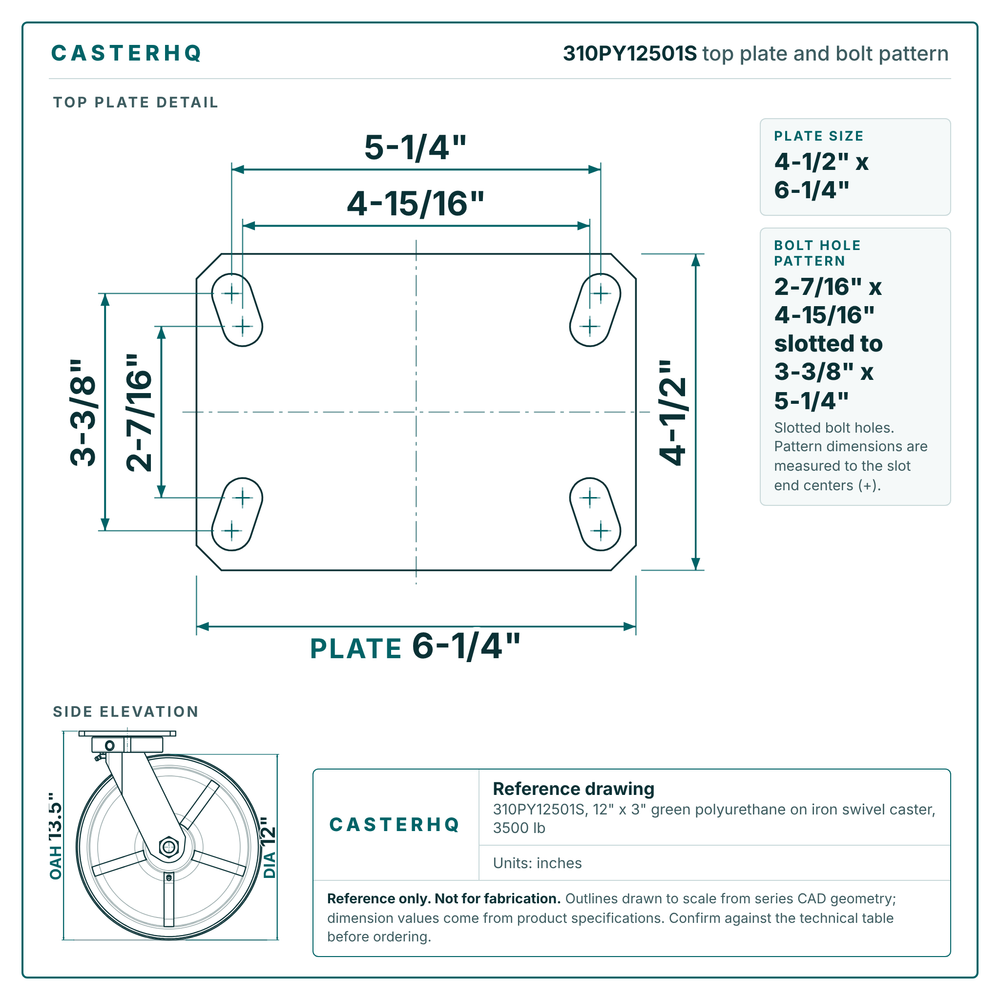

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 13.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$380.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 12" |
| Wheel Tread Width | 3" |
| Overall Height | 13.5" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 3500 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
12" x 3" Phenolic Rigid Kingpinless Caster – 3,500 lb | CasterHQ
12" x 3" · 3500 lbs · Direct fit
$158
12" x 3" Green Polyurethane Rigid Caster – 2,500 lb | CasterHQ
12" x 3" · 2500 lbs · Direct fit
$196
12" x 3" Red Ductile Steel Rigid Caster – 2,500 lb | CasterHQ
12" x 3" · 2500 lbs · Direct fit
$297
View all 12" x 3" casters & wheels · mold-on rubber, polyurethane, pneumatic →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 12" × 3"Polyurethane | Swivel | 13-1/2" | $111.00 | View → | |
| 2500 lbsLighter duty | 12" × 3"Polyurethane | Swivel | 13-1/2" | $180.00 | View → | |
| 3500 lbs | 12" × 3"Cast Iron | Swivel | 13.5" | $380.00 | Viewing | |
| 3500 lbsSame capacity | 12" × 3"Phenolic | Rigid | 13-1/2" | $158.00 | View → | |
| 6000 lbsHeavier duty | 12" × 3"Polyurethane | Rigid | 15-1/2" | $599.00 | View → |
