Brand: Albion Casters
SKU: 110XS05229SFBC
Size: 5" x 2"
Type: Kingpinless Locking Caster
Material: Ergonomic Advanced Rubber Wheel
Load Capacity: 500 lb
Mount Height: 6.5 inches
Fastening: 4" x 4-1/2" Top Plate
Origin: Made in the USA

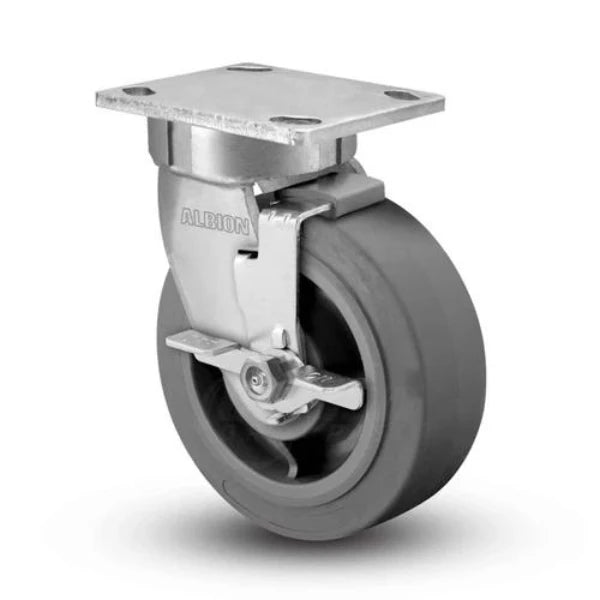

The Albion Casters Kingpinless 5" x 2" Locking Caster, equipped with an Ergonomic Advanced Rubber Wheel, is engineered to deliver superior performance and reliability. Crafted in the USA, this caster is designed to withstand rigorous use, making it ideal for high-traffic environments. With a substantial load capacity of 500 lbs and a mount height of 6.5 inches, it offers both strength and versatility. The 4" x 4-1/2" top plate ensures a secure attachment to various equipment, while the advanced rubber wheel provides smooth and quiet operation. Albion Casters' commitment to quality ensures that this caster meets the highest standards of durability and functionality.
Our knowledgeable Caster Experts are available Monday through Friday, 8 am - 5 pm, to assist with any inquiries and help you find the ideal caster for your needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters Kingpinless 5" x 2" Locking Caster with Ergonomic Advanced Rubber Wheel is engineered for exceptional durability and performance. Manufactured in the USA, this caster is designed to meet the highest standards of quality, making it ideal for demanding industrial applications.
Our dedicated team of Caster Experts is available Monday through Friday, 8 am - 5 pm to assist with any questions or concerns. We are here to ensure you find the perfect caster solution for your needs and provide exceptional support throughout your purchase experience.
This Albion 110XS05229SFBC 5" x 2" Rubber Kingpinless Caster – 500 lb is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$115.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 500 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |
