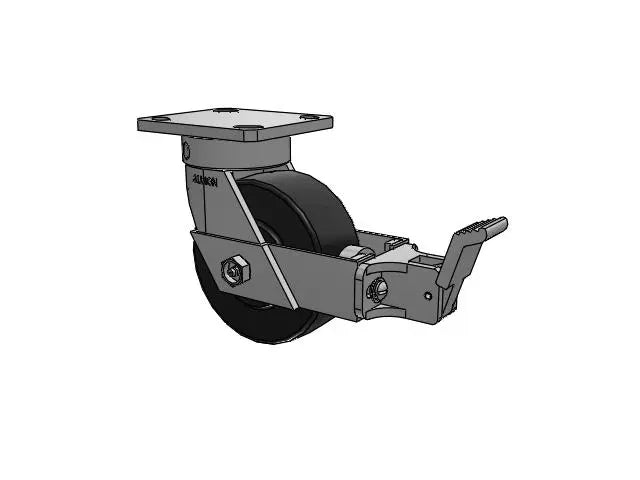

Upgrade your mobility solutions with the Albion Casters Kingpinless 5" x 2" Trionix Nylon Caster. This high-performance caster features a kingpinless design, ensuring maximum durability and a smooth, reliable movement even under heavy loads. The 5-inch diameter and 2-inch width provide excellent support, while the face brake allows for secure, controlled stopping. The robust 4" x 4.5" plate ensures easy mounting and stability. Crafted from premium nylon, this caster is ideal for a variety of industrial applications, offering exceptional resistance to impact and wear.
Invest in the Albion Casters Kingpinless Trionix Nylon Caster to improve your equipment's mobility and stability. With its advanced kingpinless design and face brake feature, it delivers superior performance and reliability for demanding industrial environments.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Enhance your industrial equipment with the Albion Casters Kingpinless 5" x 2" Trionix Nylon Caster. This high-performance caster is designed for superior durability and smooth operation, making it ideal for demanding applications. Featuring a kingpinless design, it reduces maintenance needs and extends the caster's lifespan, ensuring reliable performance even under heavy loads. The face brake provides secure stopping power, while the robust 4" x 4.5" plate facilitates easy mounting and stability. Crafted from premium nylon, this caster offers excellent resistance to impact and wear, ensuring a quiet and efficient ride.
The Albion Casters Kingpinless Trionix Nylon Caster is engineered to enhance the functionality and efficiency of your industrial equipment. Its kingpinless design minimizes maintenance, while the face brake ensures secure stopping in any application. The high-quality nylon construction delivers exceptional resistance to wear and impact, making this caster a long-lasting and reliable choice for your mobility needs. Whether you're handling heavy loads or navigating rough surfaces, this caster offers smooth and stable movement, improving overall equipment performance.
Invest in the Albion Casters Kingpinless 5" x 2" Trionix Nylon Caster for unmatched durability and performance. Optimize your equipment's mobility with this high-quality caster and experience reliable, smooth operation in even the toughest conditions.
This Albion 110NX05228SFBB 5" x 2" Nylon Kingpinless Caster with Brake is rated to 2000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 2" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$230.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 2000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
5" x 2" Polyolefin Swivel & Rigid Tool Box Caster – 2,600 lb | CasterHQ
5" x 2" · 2600 lbs · Direct fit
$113
5" x 2" Polyurethane on Iron Rigid Caster – 1100 lb | CasterHQ
5" x 2" · 1100 lbs · Direct fit
$36
View all 5′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1100 lbsLighter duty | 5" × 2"Polyurethane | Swivel with Total Lock Brake + brake | 6-1/2" | $86.00 | View → | |
| 1200 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $67.00 | View → | |
| 2000 lbs | 5" × 2"Nylon | Swivel with Face Contact Brake + brake | 6.5" | $230.00 | Viewing | |
| 2600 lbsHeavier duty | 5" × 2"Polyolefin | Rigid | 6-1/2" | $113.00 | View → | |
| 3200 lbsHeavier duty | 5" × 2"Phenolic | Swivel, Rigid | 6-1/2" | $121.00 | View → |
