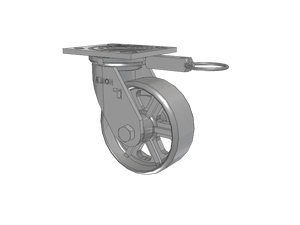

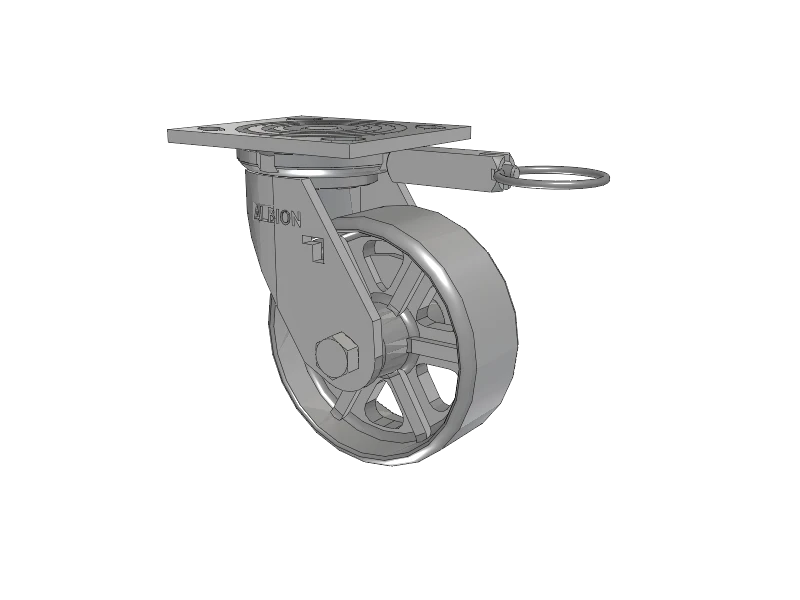

Experience superior mobility and control with the Albion Casters USA-Rig 5" x 2" Cast Iron Wheel Caster. Engineered for demanding environments, this caster features a sturdy cast iron wheel designed to support heavy loads while ensuring smooth and stable movement. The swivel lock mechanism enhances safety by allowing for secure positioning, making it ideal for equipment that requires both mobility and stability. With its 4" x 4.5" mounting plate, this caster is versatile and easy to install on various equipment, optimizing performance in warehouses, factories, and beyond.
Upgrade to the Albion Casters USA-Rig Caster for unmatched durability and ease of use. Invest in a solution that combines functionality with reliability, and ensure your equipment moves with confidence.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters USA-Rig 5" x 2" Cast Iron Wheel Caster with Swivel Lock is engineered for optimal performance in demanding industrial environments. Combining robust materials with innovative design, this caster ensures smooth mobility, stability, and safety, making it the perfect choice for heavy-duty applications.
Perfect for a variety of settings, the USA-Rig Caster is ideal for:
Designed with user convenience in mind, this caster features an easy installation process that allows for quick setup on various equipment. Users can enjoy the benefits of enhanced mobility without the hassle of complicated assembly.
Upgrade your industrial equipment's mobility with the Albion Casters USA-Rig 5" x 2" Cast Iron Wheel Caster. Its combination of durability, stability, and safety features makes it a trusted choice for professionals seeking reliable solutions for their operational needs.
This Albion 16CA05201SL 5" x 2" Cast Iron Swivel Caster – 4" x 4.5" Plate is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$153.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Overall Height | 6.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
