Elevate your equipment's mobility with our premium 3.5" HI-TECH Delrin Bearing Top-Lock Swivel Caster. Engineered for durability and smooth operation, this caster is ideal for industrial and commercial applications requiring reliable performance.
Ideal for use in various settings including:
Supports up to 250 lbs, ideal for heavy-duty industrial applications.
Ensures stability and safety when equipment needs to remain stationary.
Provides smooth, quiet operation and enhanced durability.
2.5"x3.625" plate for secure attachment to various equipment types.
3.63" radius allows for excellent maneuverability in tight spaces.
3.5"x1.25" wheel size balances load distribution and mobility.
4.69" height provides optimal ground clearance for various applications.
Designed to withstand harsh industrial environments and maintain longevity.
Engineered for long-term performance with minimal upkeep required.
Manufactured to strict quality standards for consistent performance.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

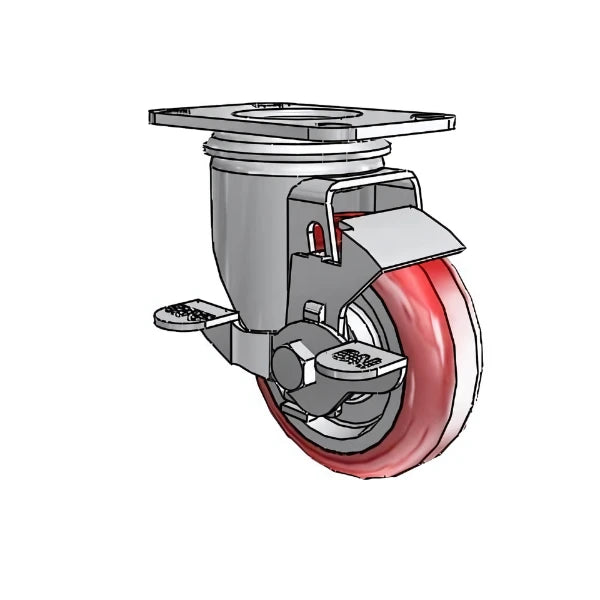

The Colson 3.5" HI-TECH Swivel Caster with Top-Lock Brake (SKU: 2.03256.91 BRK1) represents the pinnacle of industrial caster technology. Designed for environments where reliability and performance are non-negotiable, this caster combines robust construction with innovative features to deliver exceptional mobility solutions.
The Colson 3.5" HI-TECH Swivel Caster excels in a wide range of industrial and commercial environments:
This Colson 2.03256.91 BRK1 3.5" x 1.25" Hi-Tech Top Lock Swivel Caster – 250 lb is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 1-1/4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.69". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$49.00
| Identification | |
|---|---|
| Part Number / SKU | 2.03256.91-BRK1 |
| Core | |
| Load Capacity | 250 lbs |
| Wheel Diameter | 3-1/2" |
| Wheel Width | 1-1/4" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 4.69" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 2-1/2" x 3-5/8" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 1-3/4" x 2-13/16" |
| Wheel | |
| Wheel Material | Polyurethane |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -20°F to 180°F |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 230 lbsLighter duty | 3-1/2" × 1-1/4"Gray Rubber | Swivel | 4-5/8" | $19.00 | View → | |
| 230 lbsLighter duty | 3-1/2" × 1-1/4"Gray Rubber | Swivel | 4-5/8" | $16.00 | View → | |
| 250 lbs | 3-1/2" × 1-1/4"Polyurethane | Swivel with Brake + brake | 4.69" | $49.00 | Viewing | |
| 275 lbsHeavier duty | 3-1/2" × 1-1/4"Polyurethane | Swivel | 4-5/8" | $19.00 | View → |
