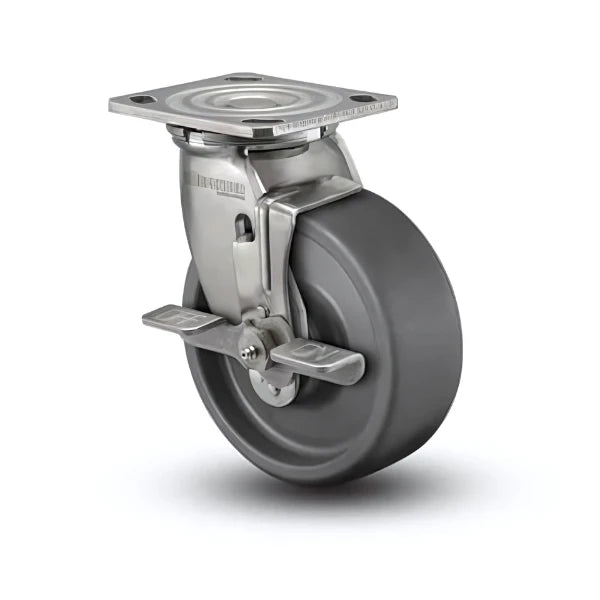

Introducing the Colson Casters Stainless 8" x 2" Solid Elastomer Roller Bearing Top-Lock Caster. This premium caster is designed to meet the demanding needs of various industrial applications, providing exceptional durability and functionality. The solid elastomer wheel offers excellent grip and maneuverability, allowing for smooth movement across multiple surfaces without the risk of damage.
Crafted from high-grade stainless steel, this caster ensures resistance to corrosion and wear, making it perfect for environments where hygiene and cleanliness are paramount. The integrated top-lock mechanism secures the caster in place, providing peace of mind when transporting heavy equipment and materials.
With a 4" x 4.5" plate, the Colson Caster easily attaches to various carts and equipment, enhancing mobility solutions in warehouses, hospitals, and manufacturing facilities. Trust in the quality and reliability of Colson Casters to improve your operational efficiency and safety.
Experience the durability and performance of the Colson Casters Stainless 8" x 2" Solid Elastomer Roller Bearing Top-Lock Caster. Upgrade your mobility equipment and streamline your operations with confidence.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Colson Casters 8" x 2" Solid Elastomer Top-Lock Caster is engineered for exceptional durability and performance in heavy-duty applications. This caster combines high-quality materials with advanced design features, making it the perfect choice for industrial, medical, and commercial environments.
Choosing the Colson Casters Stainless 8" x 2" Solid Elastomer Top-Lock Caster means investing in a product designed with quality, performance, and user satisfaction in mind. Whether for industrial, medical, or commercial use, this caster provides the reliability and functionality you need. Enhance your mobility solutions today and experience the Colson difference!
This Colson D4.08109.839 8" x 2" Solid Elastomer Stainless Caster is rated to 1200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Elastomer wheel with a 2" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.

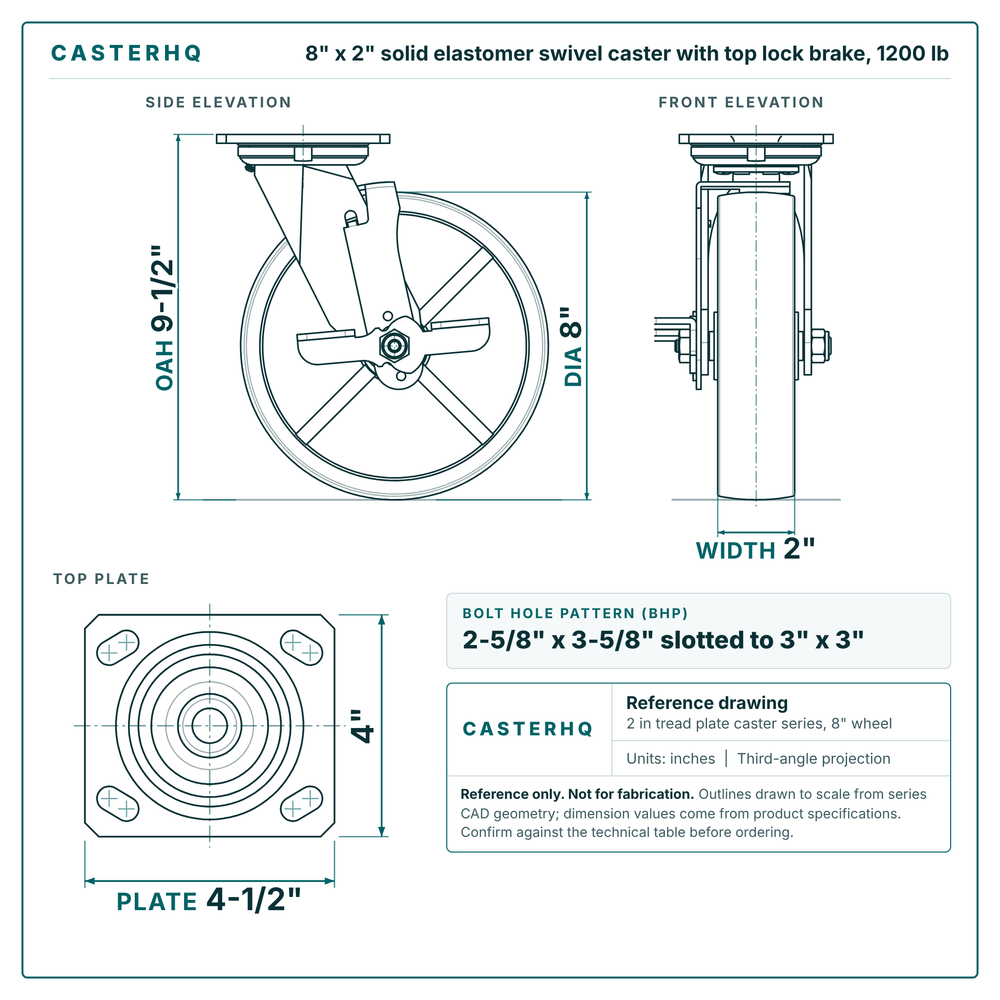

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 230°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Elastomer wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$294.00
| Identification | |
| Brand | colson header |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 1200 lbs |
| Temp Range | -45°F to 230°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Wheel Material | Solid Elastomer |
| Frame Material | Stainless Steel |
8" x 2" Swivel Caster Yoke 4" x 4-1/2" Top Plate Zinc 1,250 lb | CasterHQ
8" x 2" · 1250 lbs
$16
8" x 2" Phenolic Rigid Caster 4" x 4-1/2" Plate – 1,250 lb | CasterHQ
8" x 2" · 1250 lbs · Direct fit
$30
8" x 2" Semi-Steel Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2" · 1250 lbs · Direct fit
$43
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | — | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1200 lbs | 8" × 2"Solid Elastomer | Swivel with Brake + brake | 9-1/2" | $294.00 | Viewing | |
| 1250 lbsHeavier duty | 8" × 2"Phenolic | Rigid | — | $30.00 | View → | |
| 1250 lbsHeavier duty | 8" × 2"Cast Iron | Rigid | 9-1/2" | $43.00 | View → |
