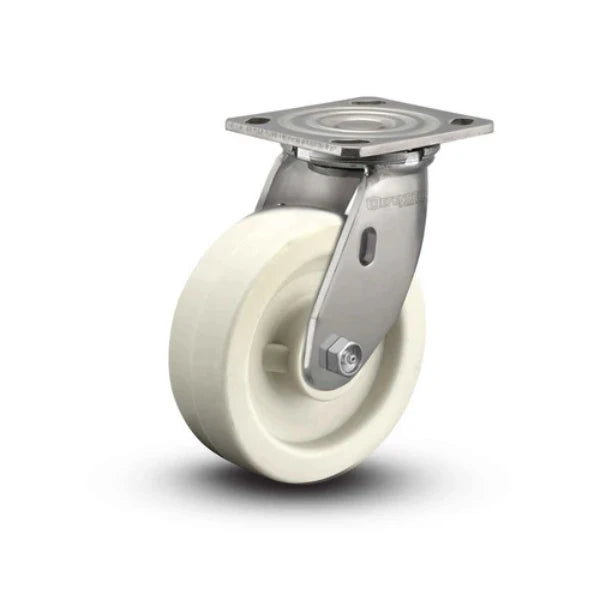

Enhance your operational efficiency with the Colson Casters Stainless 4" x 2" Hi-Temp Retort Delrin Bearing Caster. Built to withstand extreme conditions, this caster is engineered with high-quality stainless steel and a Delrin bearing for smooth, quiet operation. It features a Hi-Temp Retort design that can endure temperatures up to 500°F, making it an ideal choice for applications in food processing, retort rooms, and other high-temperature industrial settings.
The 4" x 2" caster size, combined with the 4" x 4.5" plate, ensures versatile compatibility with various equipment, offering superior load handling and maneuverability. The Delrin bearing provides excellent durability and ensures your operations run smoothly without the added noise and friction of traditional bearings.
Whether you're working in a high-temp environment or need reliable, long-lasting mobility solutions, the Colson Casters Stainless 4" x 2" Hi-Temp Retort Delrin Bearing Caster is engineered to meet the highest standards. Choose this caster for its exceptional durability, high performance, and reliability in demanding applications.
Upgrade your equipment mobility with the Colson Casters Stainless 4" x 2" Hi-Temp Retort Delrin Bearing Caster. Perfect for high-temperature environments, this caster offers superior performance and durability.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Colson Casters 4" x 2" Hi-Temp Retort Delrin Bearing Caster with a 4" x 4.5" plate is an advanced mobility solution designed for environments where high temperatures and demanding conditions are prevalent. Constructed with high-quality stainless steel and Delrin bearings, this caster offers superior performance in industrial settings, particularly in food processing and retort applications.
Engineered to handle extreme heat (up to 500°F), this caster ensures smooth, reliable mobility even in the most challenging industrial environments. With its robust design and focus on performance, it delivers enhanced durability, minimal maintenance, and superior maneuverability, making it an essential component for any operation requiring high-temperature resilience.
The Colson Casters 4" x 2" Hi-Temp Retort Delrin Bearing Caster is perfect for a wide range of applications in industries where high temperature and heavy-duty performance are critical:
Designed for demanding conditions, this caster provides top-tier performance and longevity. Its stainless steel construction ensures rust resistance, while the Hi-Temp Retort design offers reliable use in temperatures up to 500°F. The Delrin bearing ensures quiet operation with minimal maintenance. Whether navigating tight spaces or high-temperature zones, this caster provides smooth, consistent movement, even in the most challenging industrial conditions.
Choose the Colson Casters 4" x 2" Hi-Temp Retort Delrin Bearing Caster for reliable, high-performance mobility in high-heat and demanding industrial environments. Built for durability and engineered to meet the highest standards, this caster offers superior performance for a range of applications, from food processing to heavy-duty industrial use.
With its corrosion-resistant construction, Hi-Temp Retort design, and smooth, durable operation, the Colson Casters Hi-Temp Retort Delrin Bearing Caster is the ideal choice for any operation requiring precision and long-lasting reliability. Trust Colson to deliver quality and performance you can count on.
This Colson D4.04109.831 RW SS 4" x 2" Hi-Temp Stainless Caster – CasterHQ is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

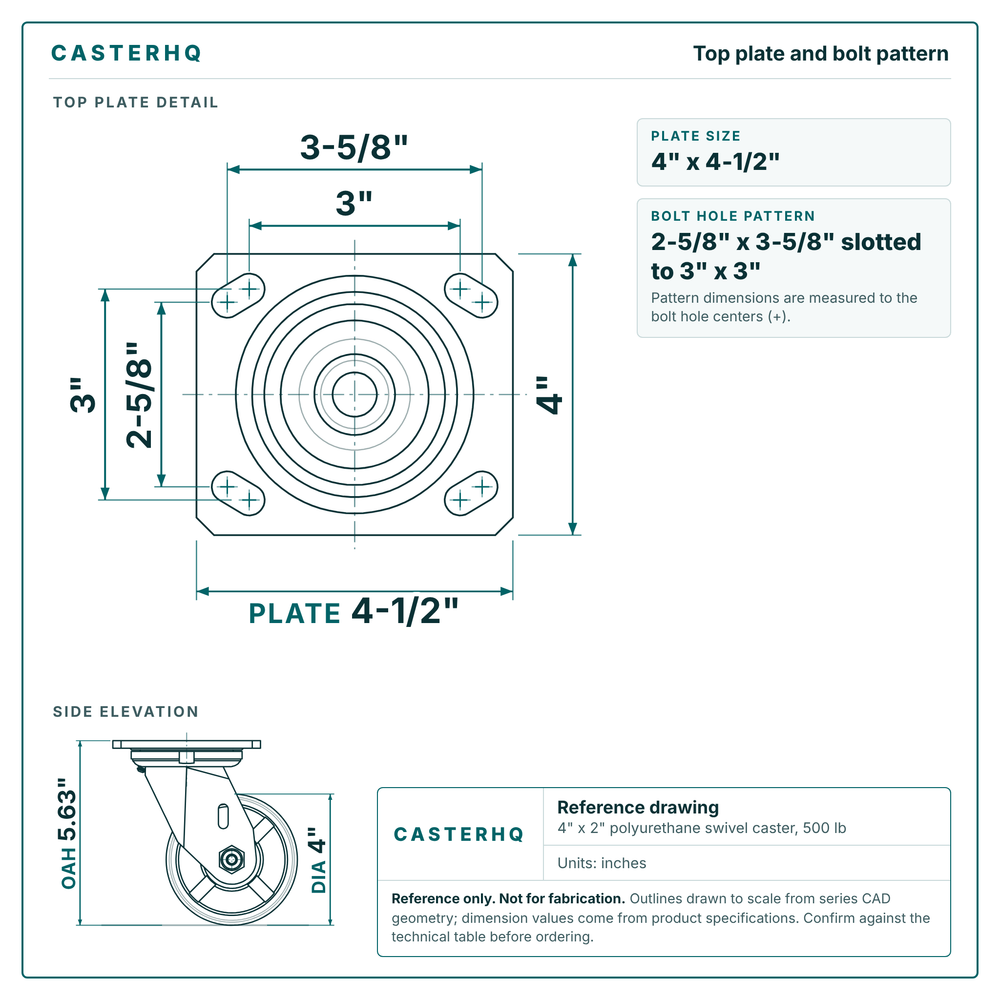

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.63". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.
Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.
A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.
$225.00
| Identification | |
|---|---|
| Part Number / SKU | D4.04109.831-RW-SS |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 500 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5.63" |
| Rig Type | Swivel |
| Brake | No Brake |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Wheel | |
| Wheel Material | Polyurethane |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 180°F |
| Compliance | |
| Buy American | Yes |

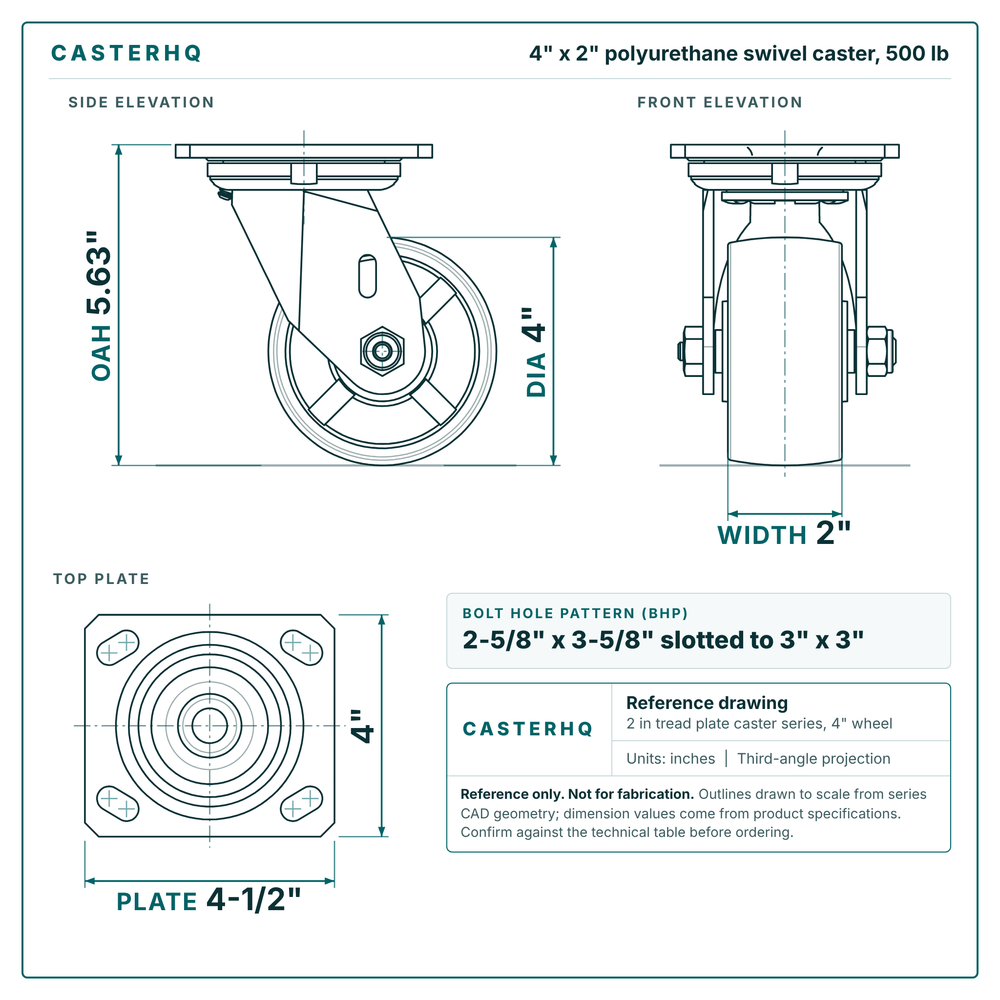

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 400 lbsLighter duty | 4" × 2"Rubber | Rigid | 5-5/8" | $23.00 | View → | |
| 400 lbsLighter duty | 4" × 2"Rubber | Swivel | 5-5/8" | $24.00 | View → | |
| 500 lbs | 4" × 2"Polyurethane | Swivel | 5.63" | $225.00 | Viewing | |
| 600 lbsHeavier duty | 4" × 2"High Temp Phenolic | Swivel with Brake + brake | 5-5/8" | $265.00 | View → | |
 Direct fit4" x 2" Semi-Steel Rigid Caster – 700 lb |
700 lbsHeavier duty | 4" × 2"Semi-Steel | Rigid | 5-5/8" | $38.00 | View → |
