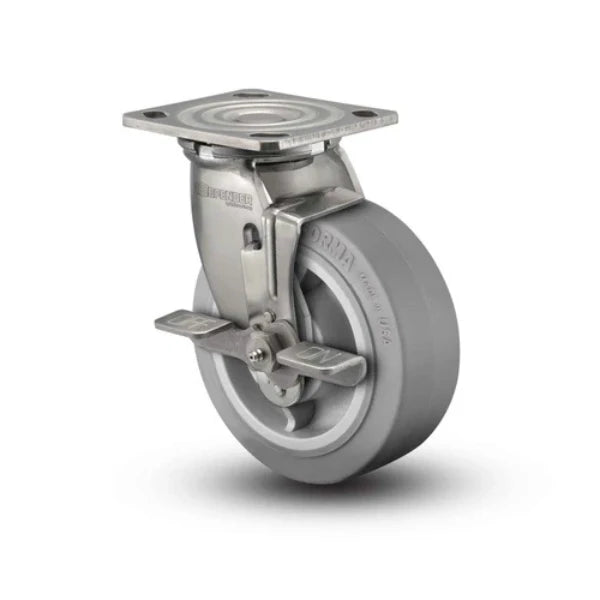

Experience exceptional performance with the Colson Casters Stainless 5" x 2" Performa Rubber Roller Bearing Top-Lock Caster. Designed for both efficiency and safety, this caster is an ideal choice for a wide range of applications, including industrial and commercial settings.
Engineered with a robust stainless steel construction, this caster resists corrosion and wear, ensuring a long-lasting solution for your mobility needs. The 5" x 2" Performa rubber wheel provides smooth and reliable movement, enhancing your operational efficiency while minimizing the risk of floor damage.
The innovative top-lock feature secures the caster in place, preventing unintended movement and ensuring stability during use. With a load capacity of 500 lbs, it is perfect for handling heavy loads in warehouses, factories, and healthcare facilities. Its 4" x 4.5" plate offers versatile compatibility, making it easy to integrate into existing setups.
Trust Colson Casters for your mobility solutions. Our commitment to quality, performance, and customer satisfaction sets us apart in the industry. Upgrade your equipment today and experience the difference!
Invest in the reliability and performance of Colson Casters. With superior engineering and thoughtful design, our top-lock caster will elevate your operational capabilities. Shop now to explore our full range of products!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Colson Casters Stainless 5" x 2" Performa Rubber Roller Bearing Top-Lock Caster is designed for durability, efficiency, and safety in various environments. Whether you're operating in a warehouse, factory, or healthcare setting, this caster provides unmatched reliability, making it an essential tool for enhancing mobility solutions.
Choosing Colson Casters means investing in a product that emphasizes quality, performance, and safety. Our commitment to excellence ensures that you receive a product designed to meet the demands of your workspace while enhancing overall efficiency. With our top-lock caster, you can trust that your equipment will remain secure, allowing you to focus on your work without worry.
Don’t compromise on quality. Upgrade your mobility solutions with the Colson Casters Stainless 5" x 2" Performa Rubber Top-Lock Caster. Experience the difference that high-quality materials and thoughtful design can make. Shop now and transform your operations!
This Colson D4.05109.459 5" x 2" Performa Stainless Caster – 500 lb is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

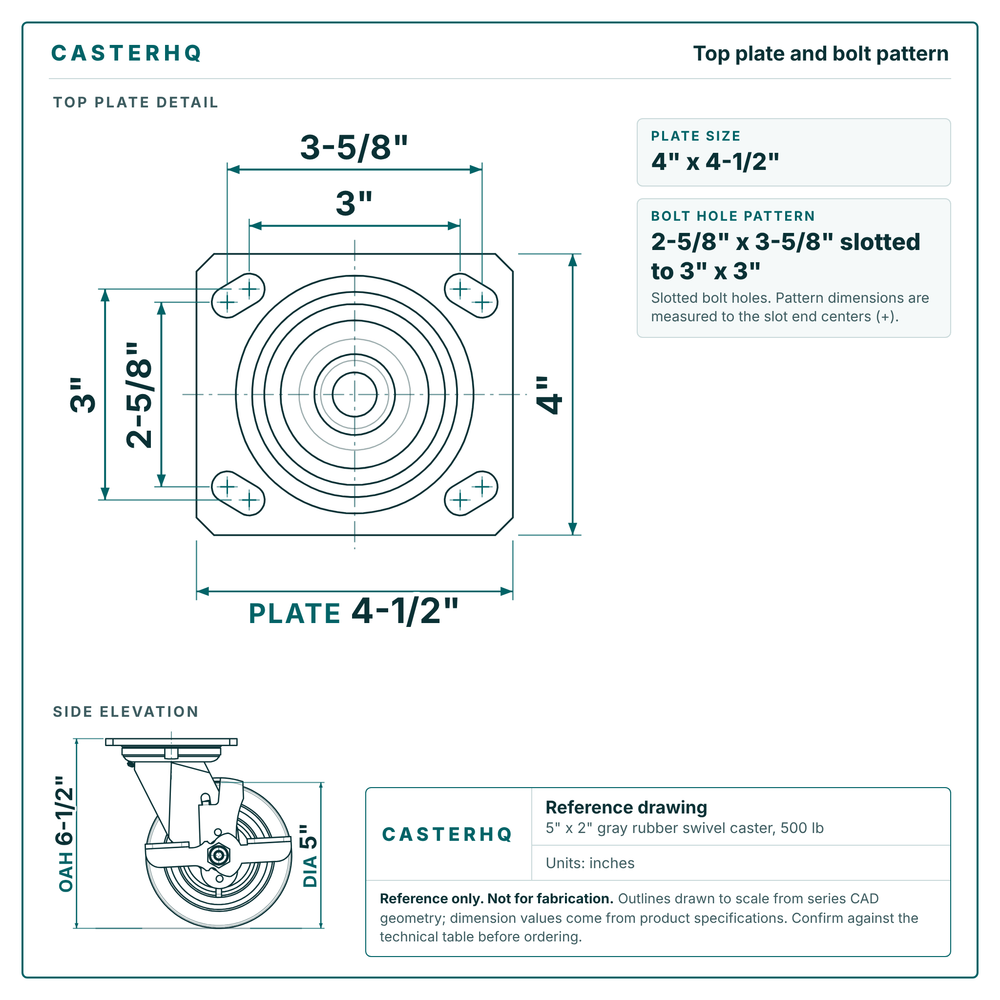

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$220.00
| Identification | |
|---|---|
| Part Number / SKU | D4.05109.459-BRK7-SS-WB29 |
| Product Series | Colson 4 Series |
| Core | |
| Load Capacity | 500 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel with Brake |
| Brake | Top Lock Brake (locks wheel) |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 5-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 65 Shore A (+/- 5) |
| Wheel Color | Grey Tread on Grey Core |
| Bearing Type | Roller |
| Thread Guard | None |
| Construction | |
| Frame / Finish | 304 Stainless Steel |
| Temperature Range | -40°F to 600°F |
| Warranty | 3 Years |
| Compliance | |
| Conformity | RoHS compliant; NSF component (less thread guards) |
| Buy American | Yes |

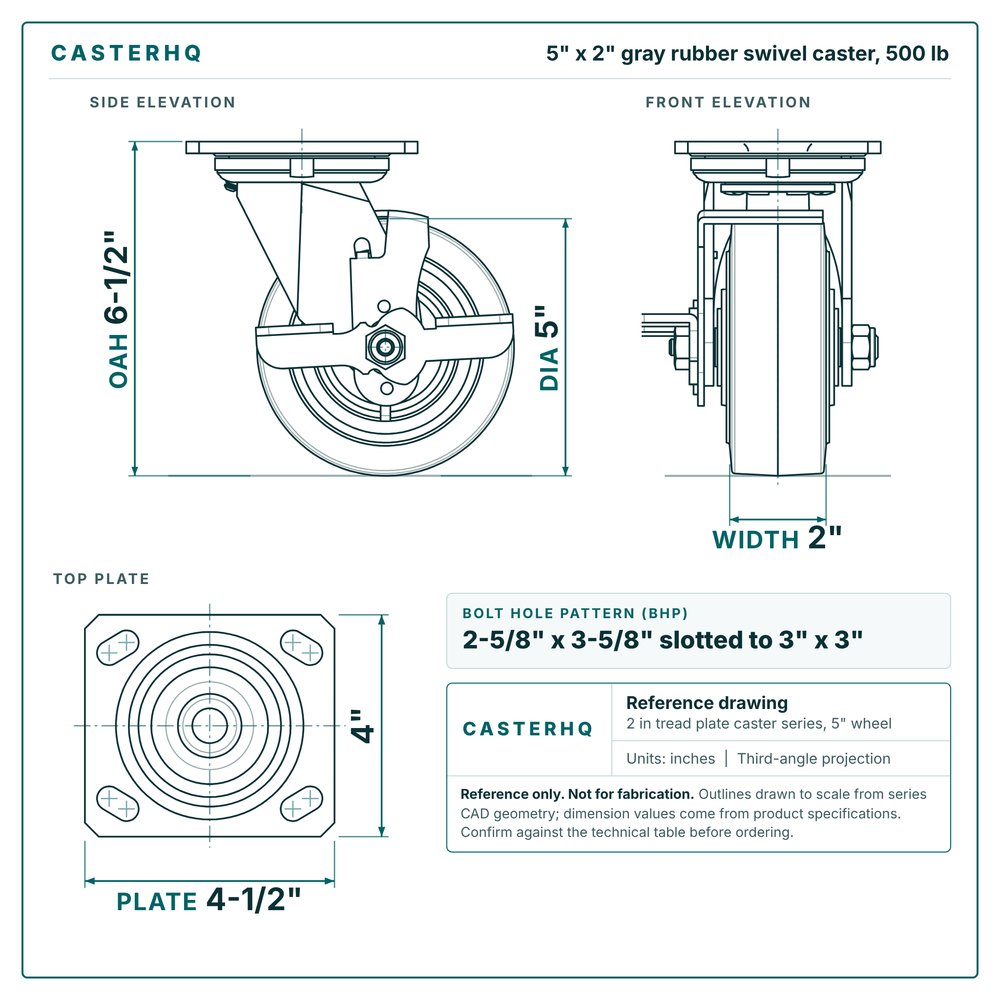

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 400 lbsLighter duty | 5" × 2"Rubber | Rigid | 6-1/2" | $23.00 | View → | |
| 450 lbsLighter duty | 5" × 2"Rubber | Swivel | 6-1/2" | $25.00 | View → | |
| 500 lbs | 5" × 2"Gray Rubber | Swivel with Brake + brake | 6-1/2" | $220.00 | Viewing | |
| 500 lbsSame capacity | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 650 lbsHeavier duty | 5" × 2"Polyolefin | Swivel | 6-1/2" | $24.00 | View → |
