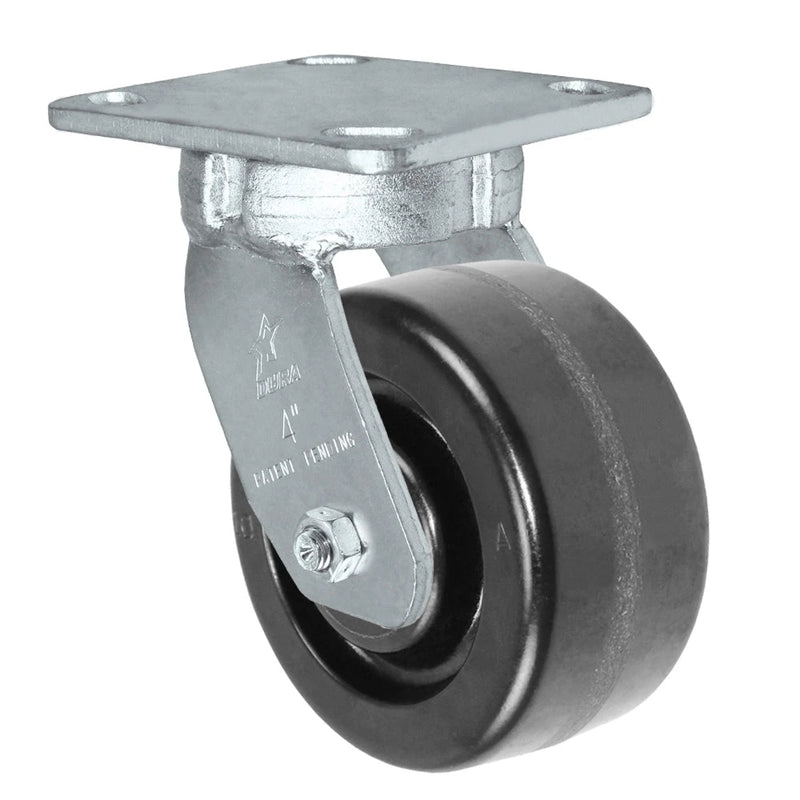

Introducing the Kingpinless Heavy Duty 40 Series 4" x 2" Phenolic Swivel Caster, designed for tough, heavy-duty applications. With a robust 800 lb capacity, these casters are built to handle the most demanding environments, offering exceptional performance and durability. The phenolic wheel material ensures impact resistance and smooth rolling across various surfaces, making them perfect for industrial and commercial use.
Choose between different top plate sizes and bearing types to customize your caster solution based on your specific operational needs. Whether you require precision ball bearings for smooth movement or other bearing options for your application, the Kingpinless Heavy Duty 40 Series casters provide the flexibility and strength you need.
Engineered for superior maneuverability, the swivel design of the caster allows for effortless turns and easy positioning, reducing the strain on users. Whether you're outfitting machinery, carts, or equipment in high-traffic or industrial environments, these casters are built to perform under pressure.
Experience the durability and versatility of Kingpinless's Heavy Duty 40 Series casters, and trust in their ability to handle your toughest tasks. Upgrade your mobility solutions with casters designed for the most demanding applications today.
Transform your operational efficiency with the Kingpinless Heavy Duty 40 Series casters. Built to last, designed to perform—get yours now and enjoy smooth, reliable movement across your workplace.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Heavy Duty 40 Series 4" x 2" Phenolic Swivel Caster is engineered for superior performance and durability, designed to handle up to 800 lbs of weight with ease. This caster offers excellent maneuverability, making it the ideal choice for high-traffic and heavy-duty applications in industrial, commercial, and warehouse environments. Its sturdy phenolic wheels provide reliable support while ensuring smooth operation, even in demanding conditions.
Whether you're outfitting machinery, carts, or other equipment, the Durastar Heavy Duty Caster is designed to meet the needs of your toughest applications. The caster features a variety of customizable options, including top plate sizes and bearing types, allowing you to tailor the product to your exact specifications.
Engineered for industrial environments, the Durastar Heavy Duty 40 Series caster combines strength with performance. The phenolic wheels offer excellent durability and are specifically crafted to resist wear and tear from constant use. The 800 lb weight capacity ensures that it can handle the load demands of large machinery, carts, and other equipment, even in environments with high-frequency movement.
These casters are ideal for use in warehouses, factories, hospitals, and retail spaces where reliability and smooth maneuverability are essential. Their shock-mitigating design further enhances their longevity and performance, making them a long-lasting solution for your mobility needs.
The Durastar Heavy Duty 40 Series caster offers unmatched flexibility with its customizable top plate sizes and bearing options. Whether you need a smaller plate for compact equipment or a larger one for heavier machinery, you can select the perfect fit. Additionally, choosing between different bearing types allows you to optimize performance based on your specific needs, whether you prioritize smoothness, efficiency, or long-term durability.
Upgrade your operations with the Durastar Heavy Duty 40 Series 4" x 2" Phenolic Swivel Caster. Whether you're outfitting industrial machinery or ensuring efficient equipment movement in commercial settings, these casters offer exceptional performance, durability, and maneuverability. Invest in a reliable solution today for smoother, more efficient operations.
This 4" x 2" Phenolic Swivel Kingpinless Caster – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.

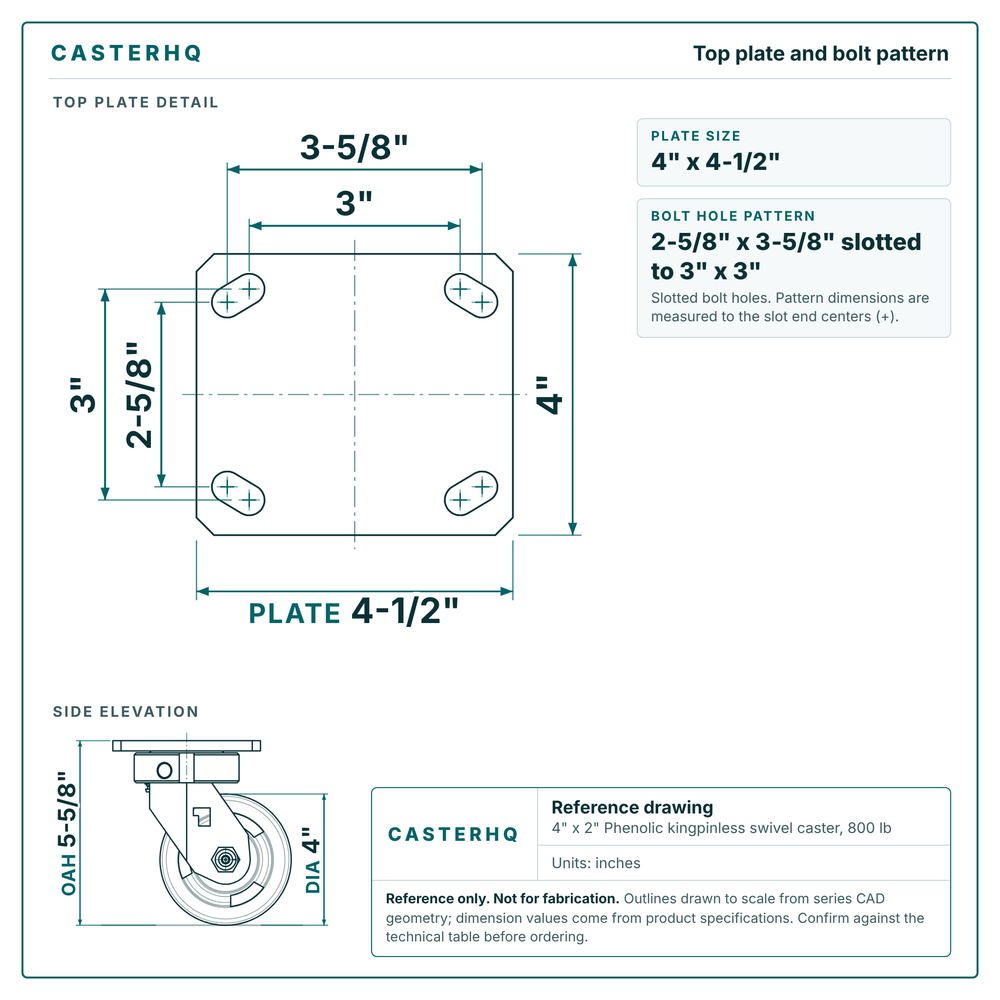

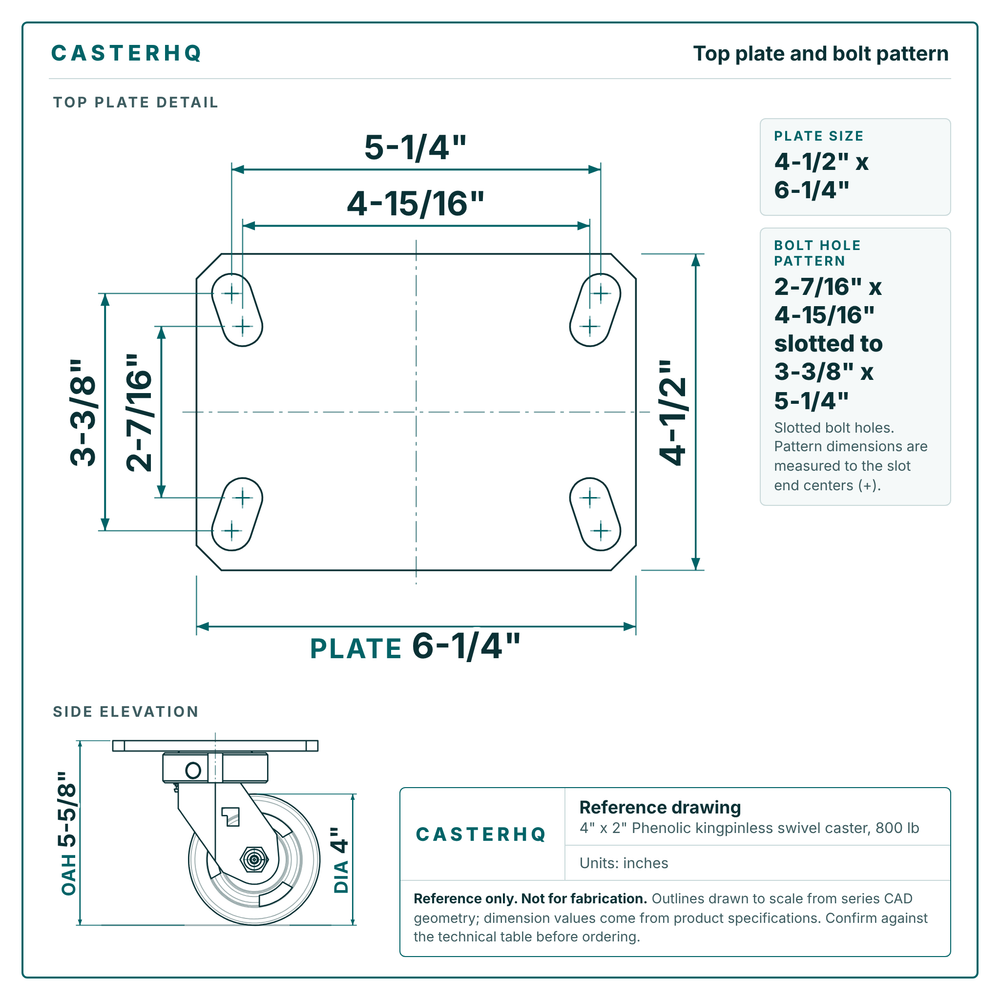

This caster uses a top-plate mount with a 4" x 4-1/2", 4-1/2" x 6-1/4" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$65.00
| Identification | |
|---|---|
| Part Number / SKU | 40-S-420-PH |
| Product Series | Durastar 40 Series |
| Core | |
| Load Capacity | 800 lbs |
| Wheel Diameter | 4" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 5-5/8" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-1/8" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2", 4-1/2" x 6-1/4" |
| Wheel | |
| Wheel Material | Phenolic |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 250°F |

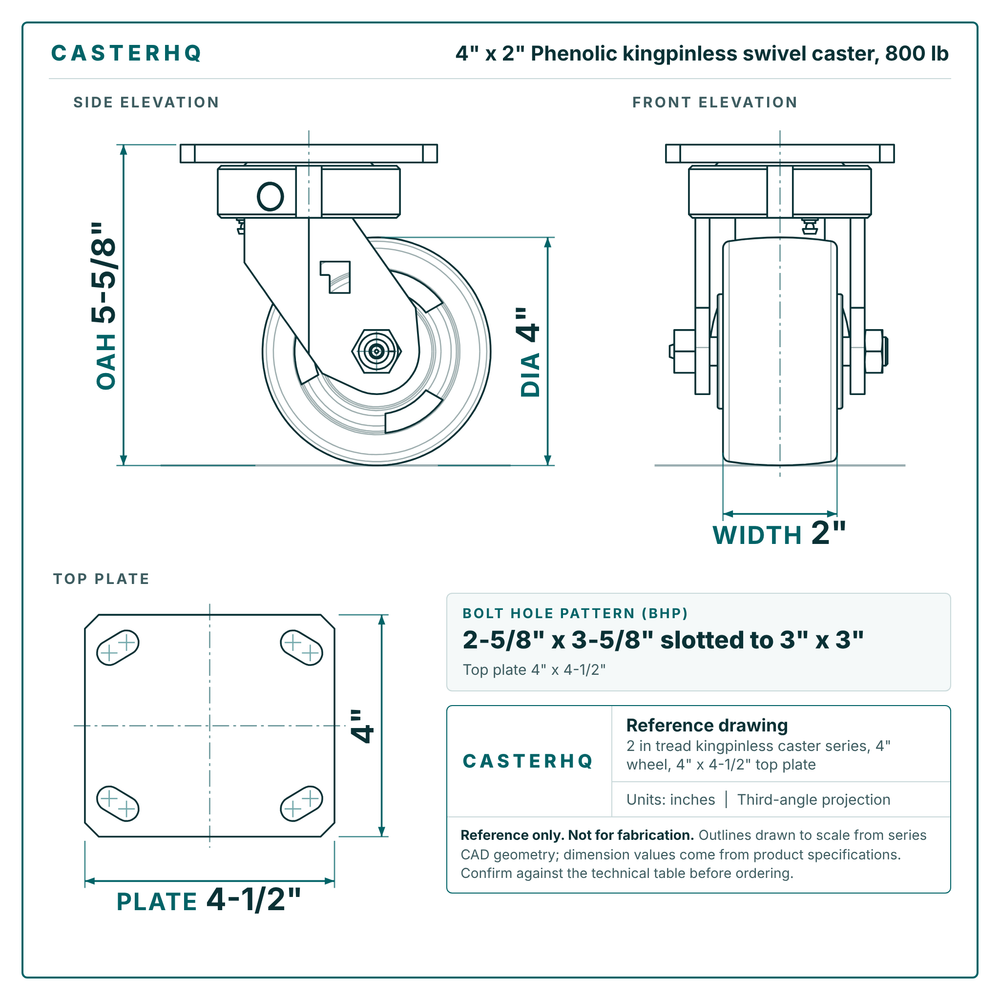

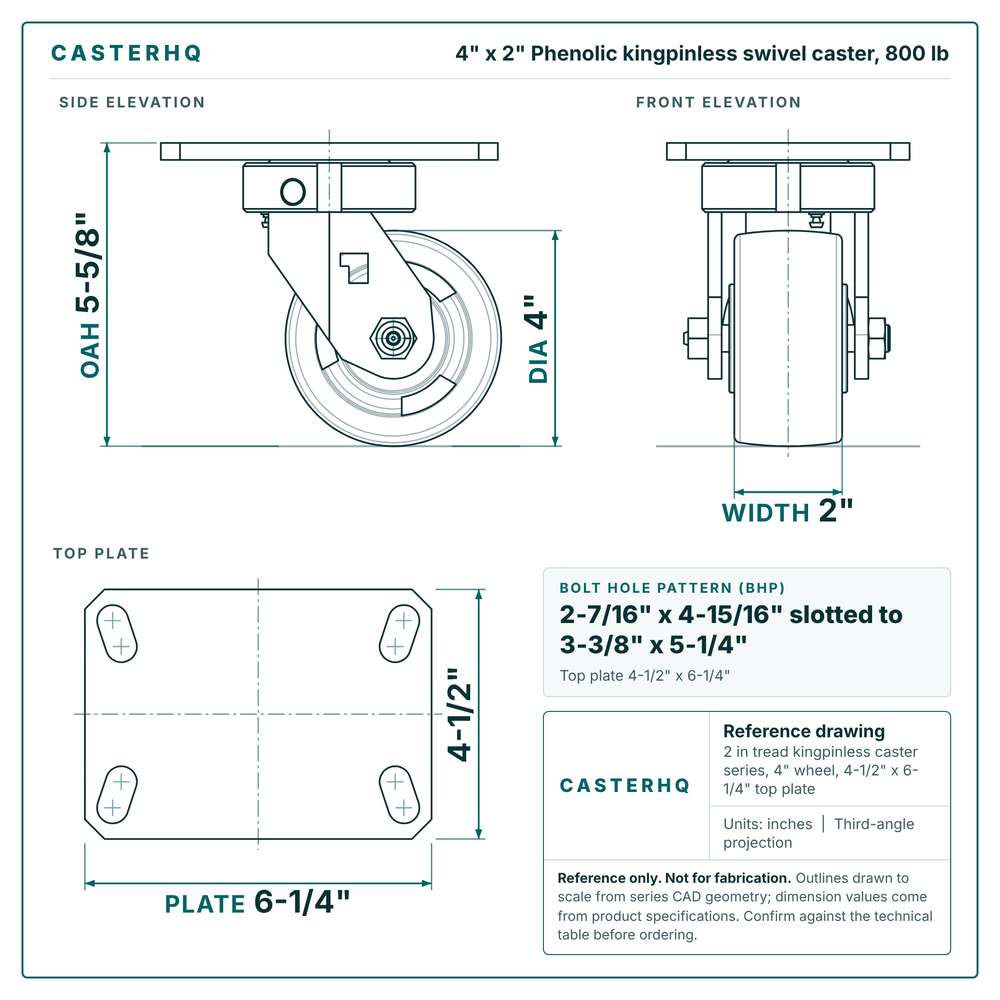

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | Brake | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Phenolic | Swivel | 5-5/8" | $65.00 | Viewing | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
