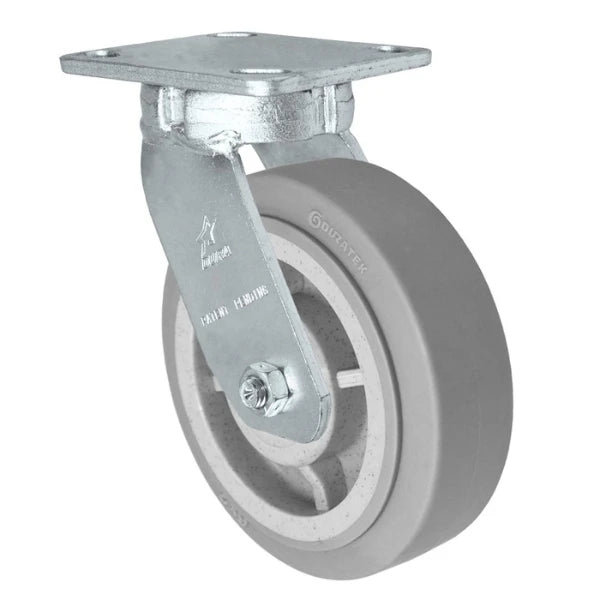

Discover the unparalleled strength and versatility of the Kingpinless Heavy Duty 40 Series 5" x 2" Duratek High Tech Rubber Swivel Caster. Designed to withstand heavy loads of up to 500 lbs per caster, this product is ideal for industrial and commercial environments where durability and performance are paramount.
The Duratek rubber wheel offers excellent resistance to wear, providing smooth rolling even in the most demanding conditions. Whether you're transporting heavy machinery or setting up a mobile work platform, this caster ensures effortless mobility and enhanced load-bearing capacity.
Available in various top plate sizes, this caster offers flexibility to meet your specific needs. Additionally, you can choose between precision-bearing options to optimize performance, ensuring a tailored solution for your mobility requirements.
Whether used in factories, warehouses, or heavy equipment transport, the Kingpinless Heavy Duty 40 Series caster guarantees longevity and reliability, making it the perfect choice for applications that demand high performance and robust construction.
Choose the Kingpinless Heavy Duty 40 Series caster for superior performance, durability, and ease of mobility. Designed to meet the toughest demands, this caster is a trusted solution for all your industrial needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Heavy Duty 40 Series 5" x 2" Duratek High Tech Rubber Swivel Caster is designed for heavy-duty applications where reliability, durability, and smooth mobility are essential. Built to support up to 500 lbs per caster, this high-performance caster is perfect for industrial machinery, warehouse equipment, medical carts, and more. With a range of customizable options, this caster ensures efficient mobility in even the most demanding environments.
The Durastar Heavy Duty 40 Series is engineered to perform in the most demanding environments. Whether you're working in a factory, warehouse, or healthcare setting, this caster is built to endure the toughest conditions. The Duratek high-tech rubber wheel offers exceptional resistance to wear, helping to reduce maintenance costs and downtime. The precision bearings and ergonomic design ensure that the caster rolls smoothly with minimal effort, reducing strain and improving productivity.
With customizable top plate sizes, the Durastar Heavy Duty 40 Series caster adapts to your specific needs. Choose from top plate sizes to ensure a perfect fit for your equipment. This flexibility makes it a perfect choice for a variety of industrial applications, from warehouse carts to medical equipment.
Furthermore, the caster is designed with safety and ease of use in mind. Its smooth rolling action and low rolling resistance make it ideal for environments where constant movement is required. Whether moving heavy equipment or maneuvering within tight spaces, this caster ensures a hassle-free operation every time.
Durastar casters are trusted by professionals across various industries due to their exceptional performance and durability. These casters are engineered with precision and quality in mind, ensuring they can handle the toughest tasks. The 500 lb capacity and Duratek high-tech rubber wheels make them ideal for both light and heavy-duty applications. Choose Durastar for a mobility solution that works as hard as you do.
Invest in the Durastar Heavy Duty 40 Series caster to improve efficiency and reliability in your operations. With its superior load capacity, customizable features, and durable construction, this caster is built to meet the demands of any professional setting. Upgrade your mobility solutions today and experience the difference Durastar can make in your workplace.
This 5" x 2" Duratek Rubber Swivel Kingpinless Caster – 500 lb is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Rubber wheel with a 2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

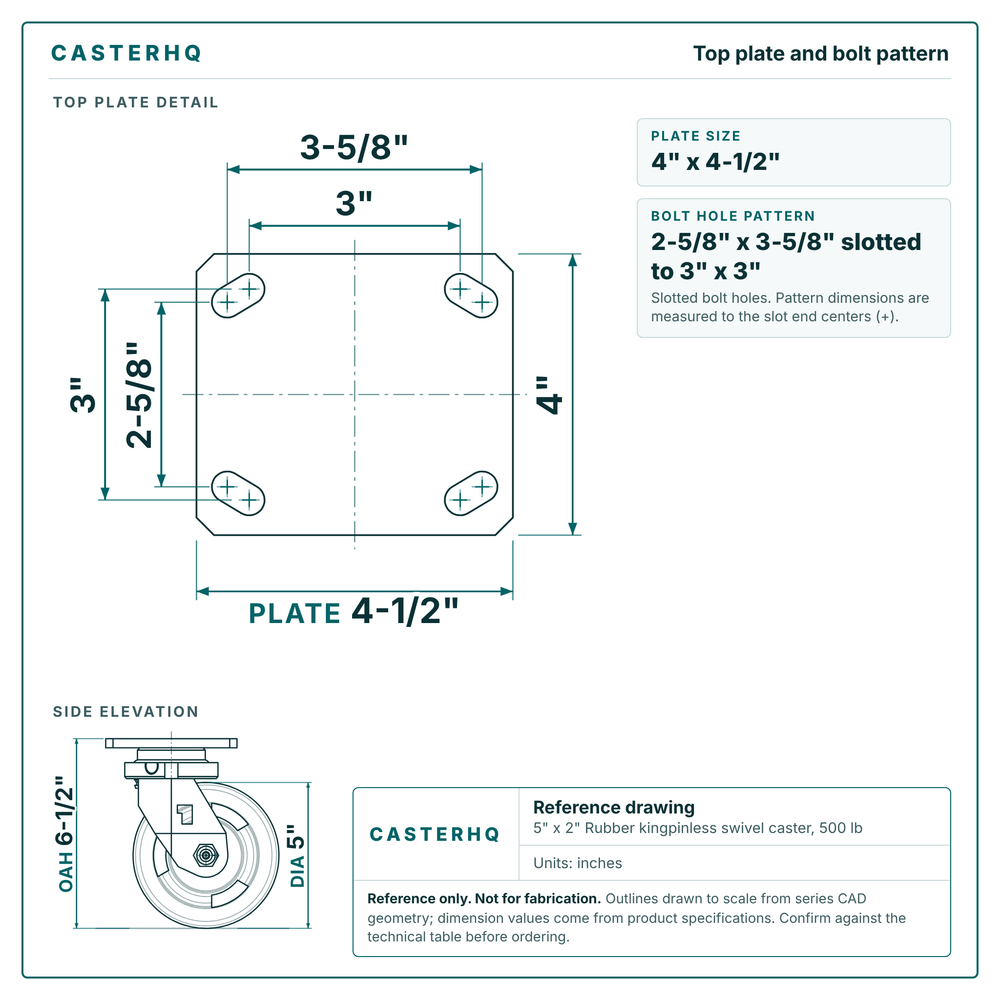

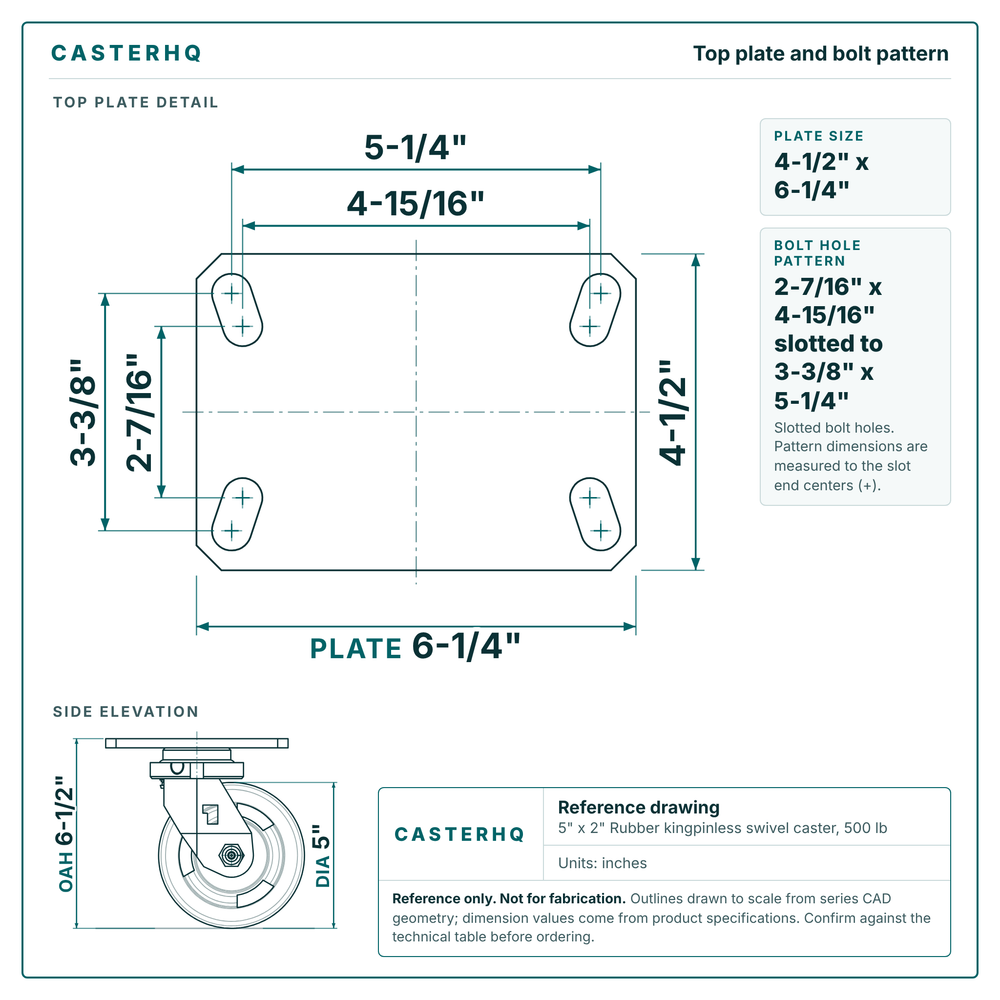

This caster uses a top-plate mount with a 4" x 4-1/2", 4-1/2" x 6-1/4" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$68.00
| Identification | |
|---|---|
| Part Number / SKU | 40-S-520-PPR |
| Product Series | Durastar 40 Series |
| Core | |
| Load Capacity | 500 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-3/4" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2", 4-1/2" x 6-1/4" |
| Wheel | |
| Wheel Material | Rubber |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45°F to 180°F |

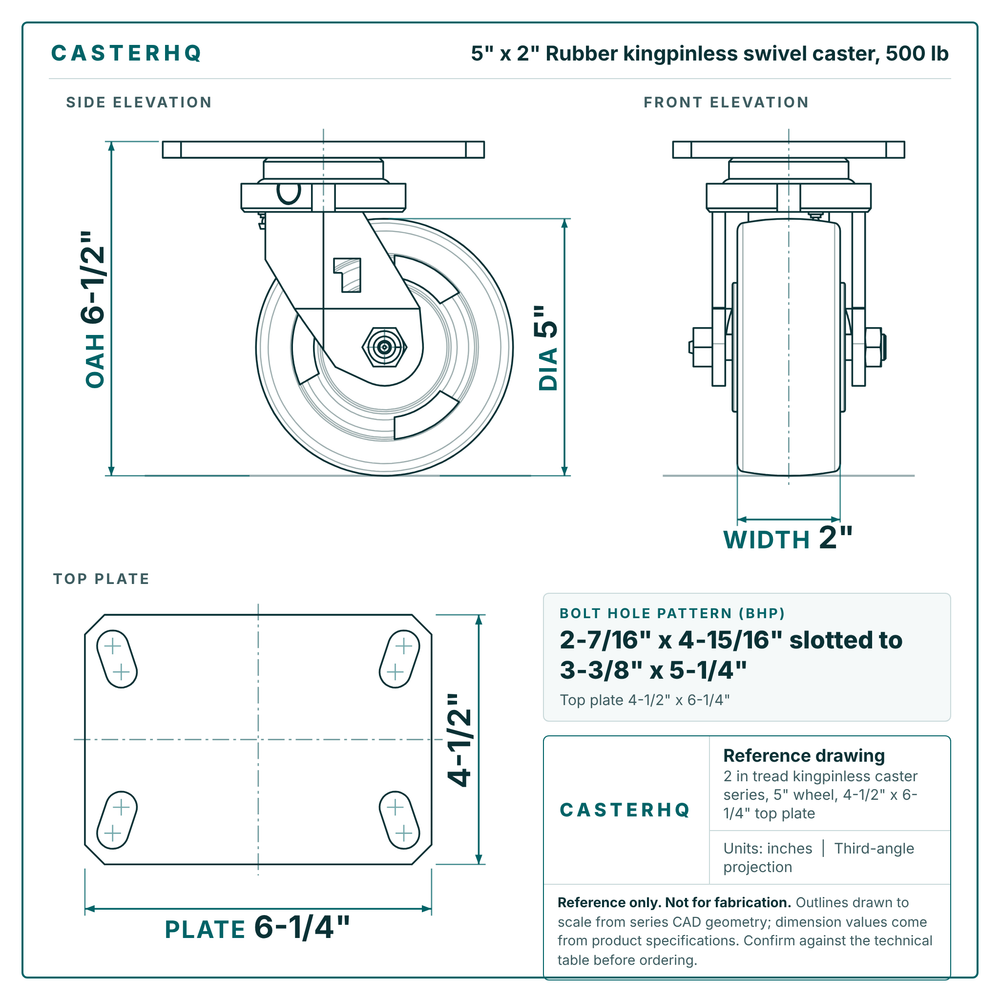

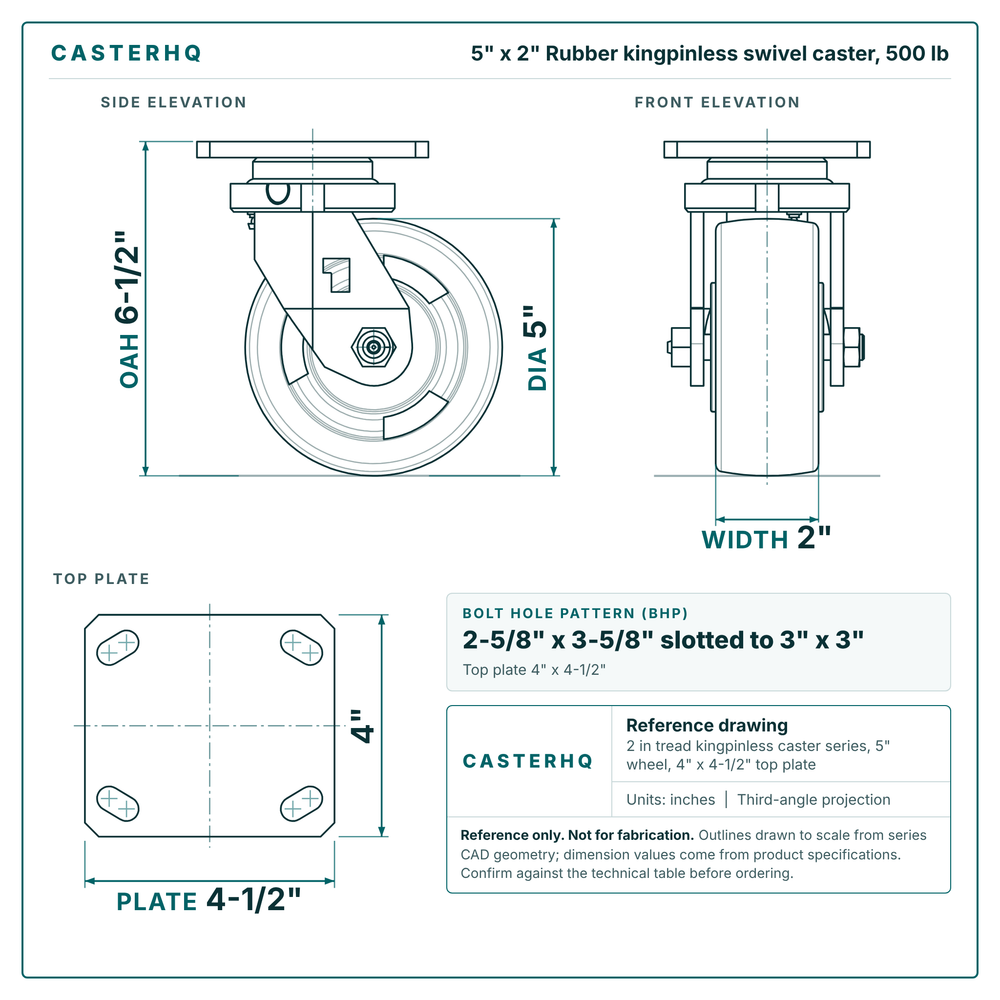

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 400 lbsLighter duty | 5" × 2"Rubber | Rigid | 6-1/2" | $23.00 | View → | |
| 450 lbsLighter duty | 5" × 2"Rubber | Swivel | 6-1/2" | $25.00 | View → | |
| 500 lbs | 5" × 2"Rubber | Swivel | 6-1/2" | $68.00 | Viewing | |
| 500 lbsSame capacity | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 650 lbsHeavier duty | 5" × 2"Polyolefin | Swivel | 6-1/2" | $24.00 | View → |
