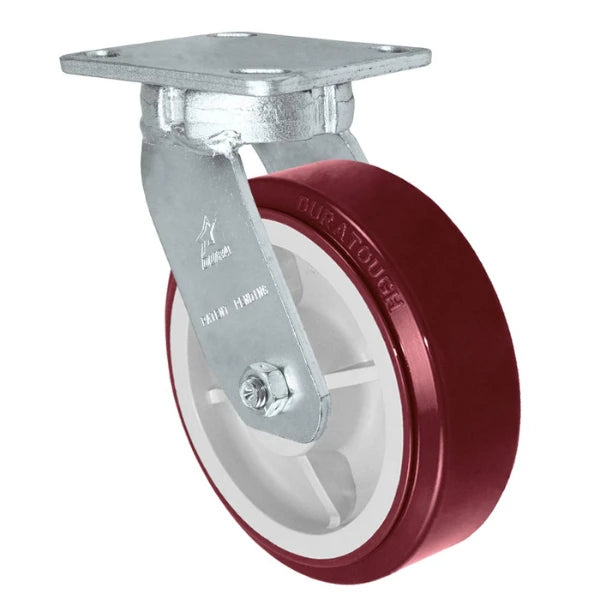

Experience unparalleled performance with the Kingpinless Heavy Duty 40 Series caster. Built for high-stress applications, this 5" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster offers an impressive 750 lb load capacity, making it ideal for industrial, commercial, and other demanding environments. The durable construction ensures long-lasting reliability, while the swivel design enhances maneuverability, making it the perfect choice for carts, trolleys, and heavy machinery.
Designed with versatility in mind, the Kingpinless 40 Series caster allows you to choose between a variety of top plate sizes and bearing types, providing the flexibility to customize your caster solution based on specific operational requirements. The DURATOUGH Polyurethane on Polyolefin material offers excellent floor protection, reducing wear and tear on surfaces while maintaining durability under heavy loads.
Whether you're outfitting a warehouse, factory, or medical facility, the Kingpinless Heavy Duty 40 Series Caster is built to endure tough environments and heavy-duty usage. Trust in the quality and performance of this caster to enhance your mobility solutions and keep your operations running smoothly.
Invest in the Kingpinless Heavy Duty 40 Series Caster today for exceptional durability, performance, and a customized solution to meet the needs of your toughest tasks.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Heavy Duty 40 Series 5" x 2" DURATOUGH Polyurethane on Polyolefin Swivel Caster is designed to deliver exceptional durability and reliability in heavy-duty applications. With a robust 750 lb load capacity, this caster ensures that your equipment can handle tough tasks with ease. Whether used in industrial, commercial, or demanding environments, this caster provides the mobility you need to keep your operations running smoothly.
The Durastar Heavy Duty 40 Series Swivel Caster is designed for use in demanding environments. Whether you're working in a warehouse, factory, or medical facility, this caster excels in heavy-duty applications. Its load-bearing capacity and versatile design make it ideal for:
The Durastar 40 Series caster is engineered for those who require reliable, high-performance mobility solutions. With its combination of superior materials, customizable options, and high load capacity, it stands out as an excellent choice for any application that demands both durability and ease of use. The durable construction ensures that this caster will stand up to the toughest challenges, making it a long-lasting investment for your business.
Whether you're outfitting industrial equipment or enhancing the mobility of hospital beds and medical carts, the Durastar Heavy Duty 40 Series Caster provides the versatility and performance you need. With customizable sizes and bearings, this caster is a flexible solution that adapts to your unique requirements, ensuring you get the most out of your investment.
Invest in the Durastar Heavy Duty 40 Series Caster today and experience the difference in quality, performance, and durability. Designed to meet the demands of heavy-duty applications, this caster provides exceptional value and long-lasting results. Enhance your equipment’s mobility and efficiency with a reliable solution that you can trust for years to come.
This 5" x 2" DURATOUGH Polyurethane Swivel Kingpinless Caster – 750 lb is rated to 750 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

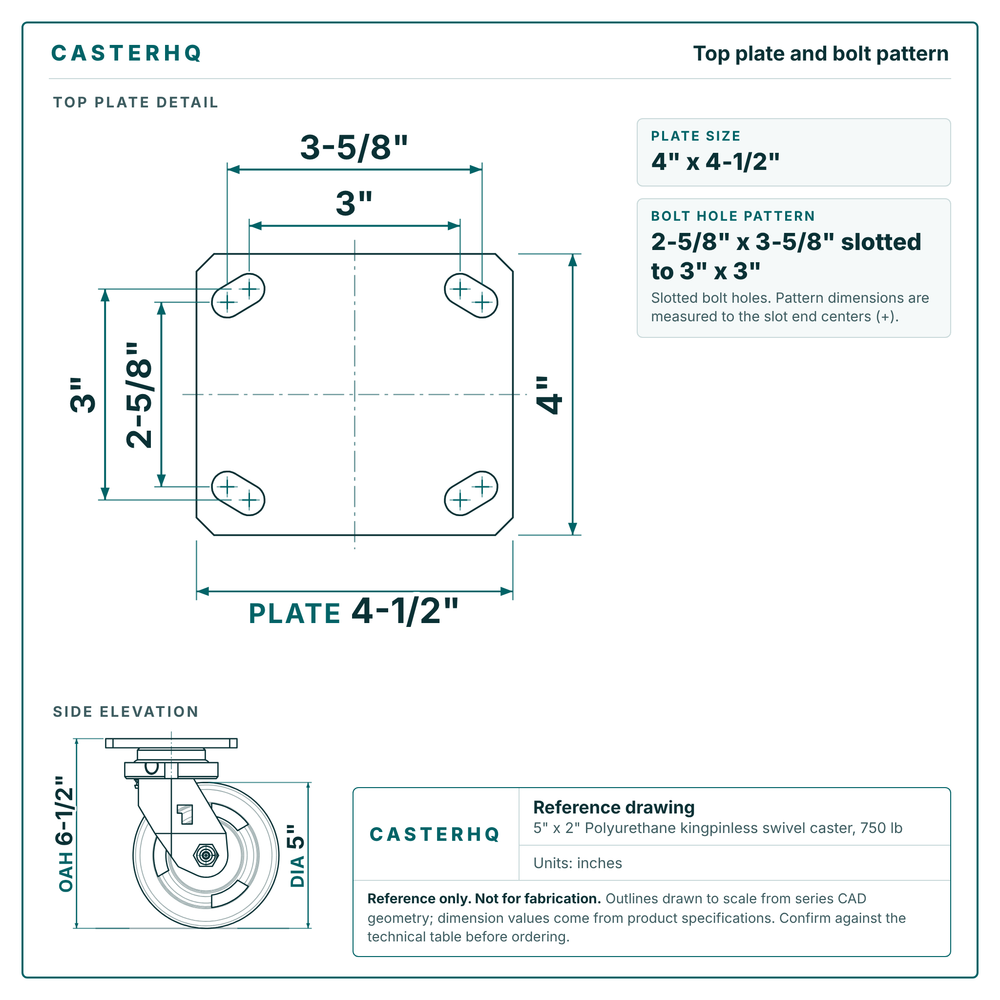

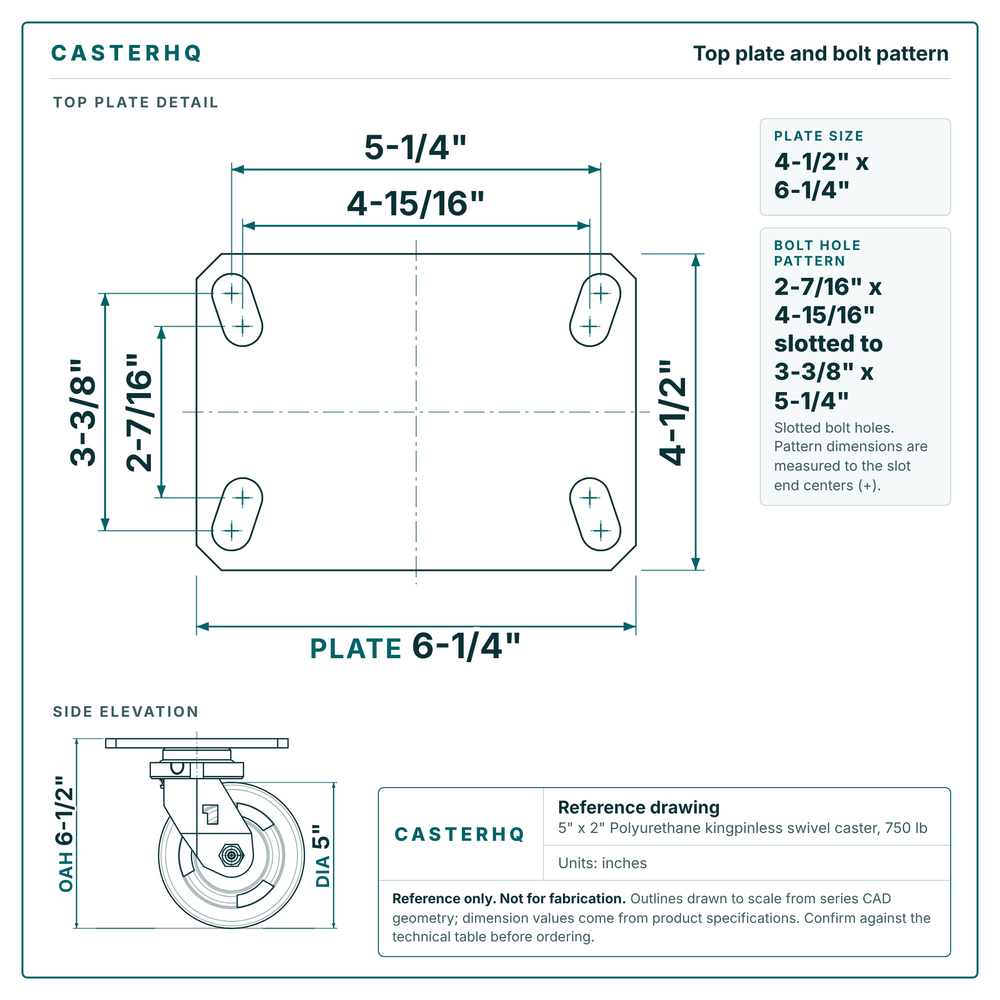

This caster uses a top-plate mount with a 4" x 4-1/2", 4-1/2" x 6-1/4" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$95.00
| Identification | |
|---|---|
| Part Number / SKU | 40-S-520-PTU |
| Product Series | Durastar 40 Series |
| Core | |
| Load Capacity | 750 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 3-3/4" |
| Swivel Construction | Kingpinless |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2", 4-1/2" x 6-1/4" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45°F to 180°F |

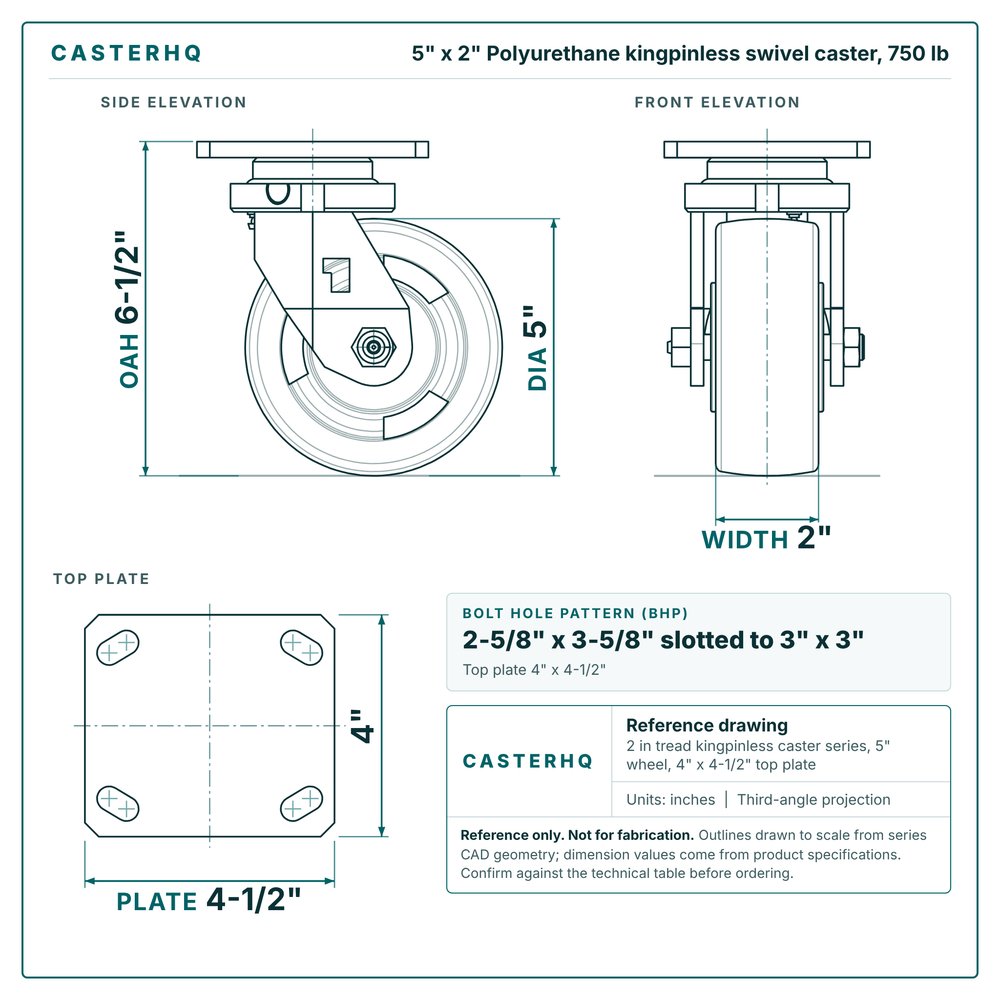

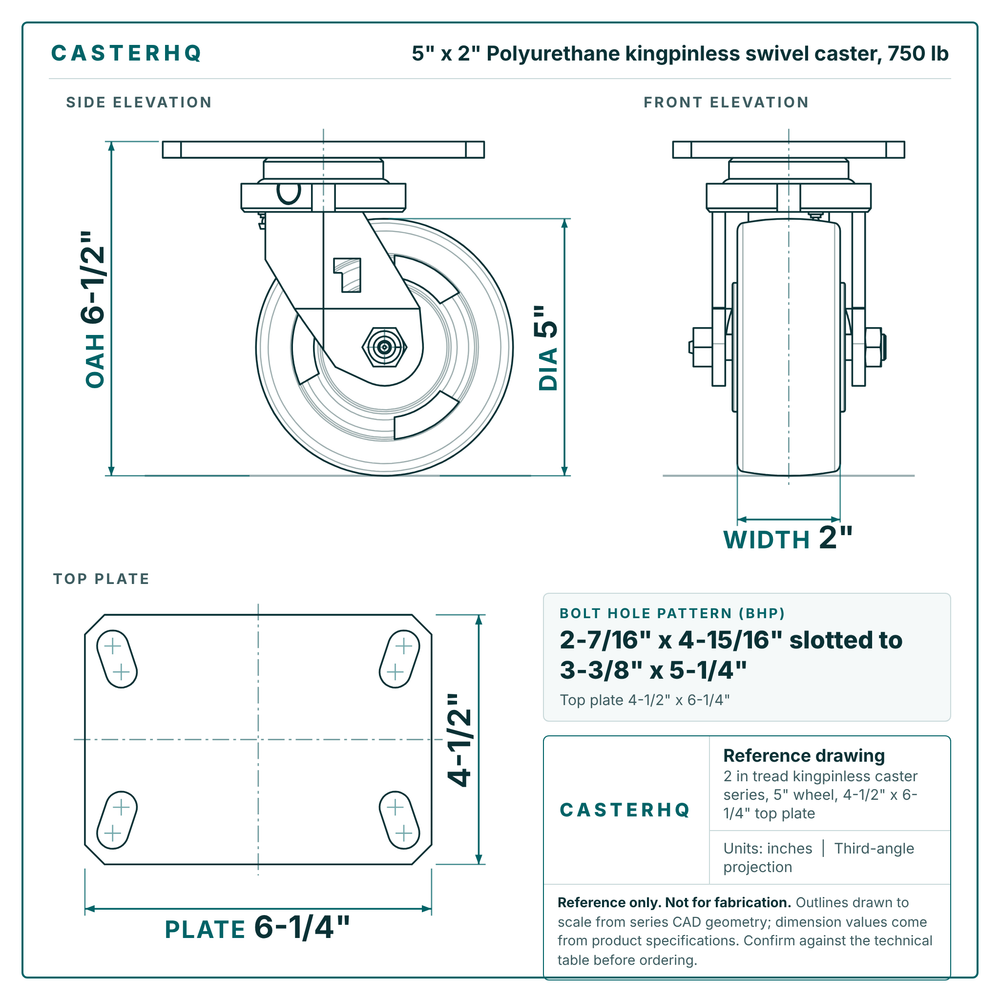

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 500 lbsLighter duty | 5" × 2"Gray Rubber | Rigid | 6-1/2" | $27.00 | View → | |
| 650 lbsLighter duty | 5" × 2"Polyolefin | Swivel | 6-1/2" | $24.00 | View → | |
| 750 lbs | 5" × 2"Polyurethane | Swivel | 6-1/2" | $95.00 | Viewing | |
| 750 lbsSame capacity | 5" × 2"Polyurethane | Rigid | 6-1/2" | $20.00 | View → | |
| 800 lbsHeavier duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $28.00 | View → |
