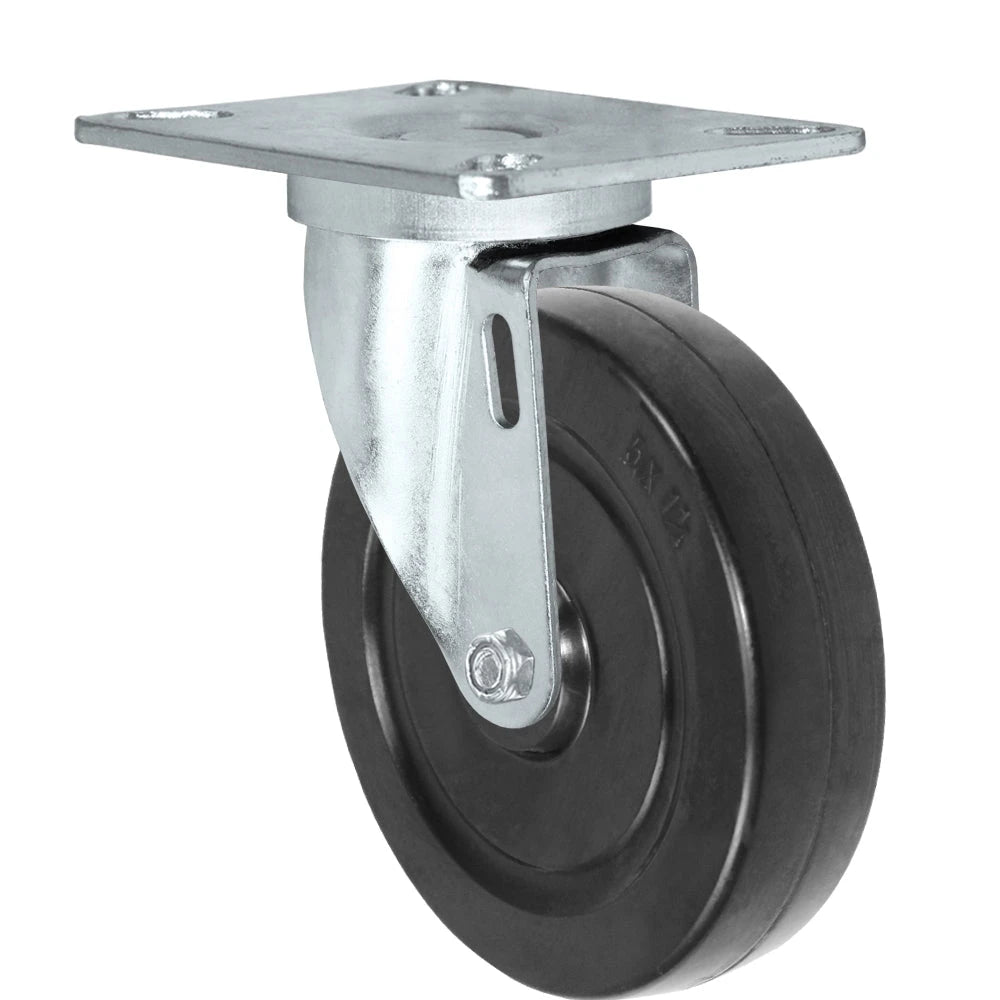

The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Soft Rubber wheel offers exceptional performance and versatility for various industrial and commercial applications. With a robust 250 lb load capacity and customizable top plate options, this swivel caster is engineered to meet the demands of light to medium-duty environments while providing smooth and reliable mobility.
The Soft Rubber wheel offers excellent resistance to wear, chemicals, and moisture, ensuring long-lasting performance in challenging conditions. Its non-marking properties make it suitable for various floor types, while the smooth operation reduces noise levels, enhancing the overall user experience.
This versatile caster excels in numerous settings, including:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Light Medium Duty 24 Series caster with a 5" x 1-1/4" Soft Rubber wheel exemplifies versatility and reliability in material handling solutions. Engineered for light to medium-duty applications, this caster combines durability, efficiency, and floor protection, making it an excellent choice for businesses seeking dependable mobility in diverse environments.
The 24 Series with Soft Rubber wheels excels in a wide range of industries and applications, including:
Durastar's commitment to quality and innovation ensures that the 24 Series casters meet rigorous performance standards. With over 35 years of manufacturing experience, Durastar has established itself as a trusted provider of high-quality casters and wheels across various industries. The combination of durability, smooth operation, and versatility makes these casters an excellent choice for businesses seeking reliable mobility solutions.
Upgrade your material handling capabilities with the Durastar Light Medium Duty 24 Series 5" x 1-1/4" Soft Rubber Swivel Caster. Experience the perfect balance of load-bearing capacity, floor protection, and quiet operation, ideal for a wide range of industrial and commercial applications. Invest in casters that combine strength and ease of use to elevate your workflow efficiency today.
This 5" x 1-1/4" Soft Rubber Swivel Caster – 250 lb is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 1-1/4" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

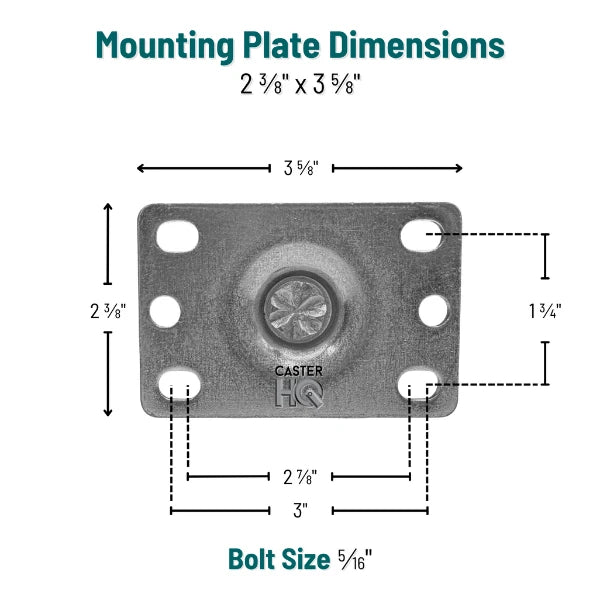

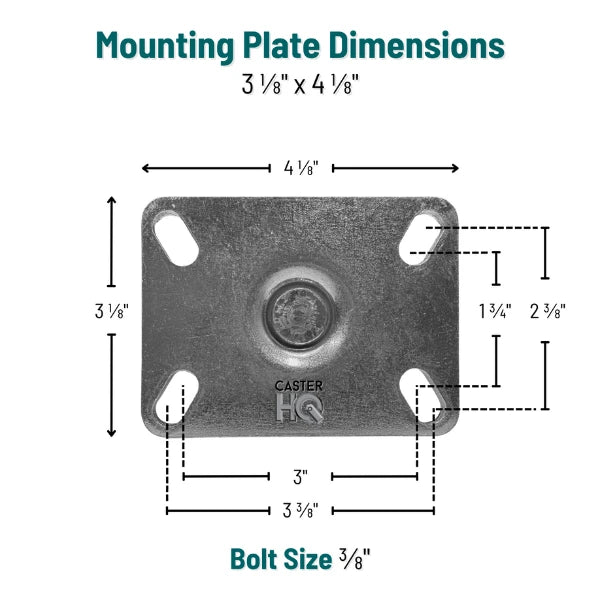

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$32.00
| Identification | |
| Brand | Durastar |
| Dimensions & Mounting | |
| Wheel Diameter | 5" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 6-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |
