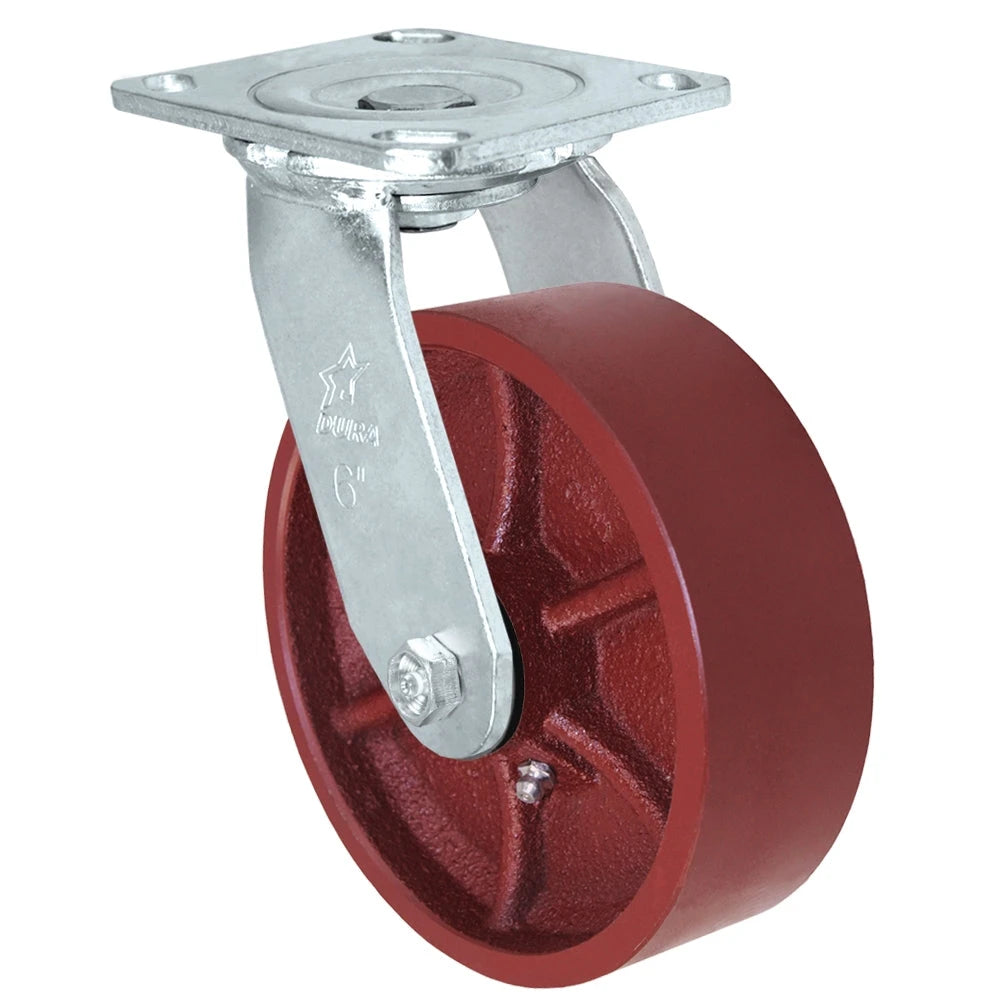

Durastar Medium Heavy Duty 30 Series - 6" x 2" Ductile Steel Swivel Caster - 1250 lb Capacity, 4 x 4-1/2 Top Plate

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 30-S-620-DS-03

Product Overview

Durastar Medium Heavy Duty 30 Series - 6" x 2" Ductile Steel Swivel Caster


Product Overview

The Durastar Medium Heavy Duty 30 Series 6" x 2" Ductile Steel Swivel Caster is an industrial-grade mobility solution engineered for demanding environments. With a robust 1250 lb load capacity, this caster delivers exceptional performance, durability, and reliability for various heavy-duty applications.

Key Features

  • High Load Capacity: Supports up to 1250 lbs, ideal for medium to heavy-duty industrial use
  • Durable Wheel Construction: 6" x 2" Ductile Steel wheel offers superior strength and wear resistance
  • Smooth Swivel Mechanism: Double ball bearing raceways ensure effortless 360-degree rotation
  • Versatile Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  • Corrosion Resistance: Zinc plated finish protects against rust and environmental factors
  • Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  • Precision Engineering: 5/8" diameter nut and bolt kingpin for enhanced stability and durability

Applications

This versatile caster excels in various industrial settings, including:

  • Material handling equipment and heavy-duty conveyors
  • Manufacturing facilities and assembly lines
  • Warehouse and distribution center operations
  • Heavy machinery and equipment mobility
  • Industrial platform trucks and carts
  • Food service equipment and bakery racks

Elevate your equipment's mobility with the Durastar Medium Heavy Duty 30 Series Ductile Steel Swivel Caster. Experience unmatched durability, reliability, and performance in your challenging industrial applications.

Technical Specs

Technical Specifications

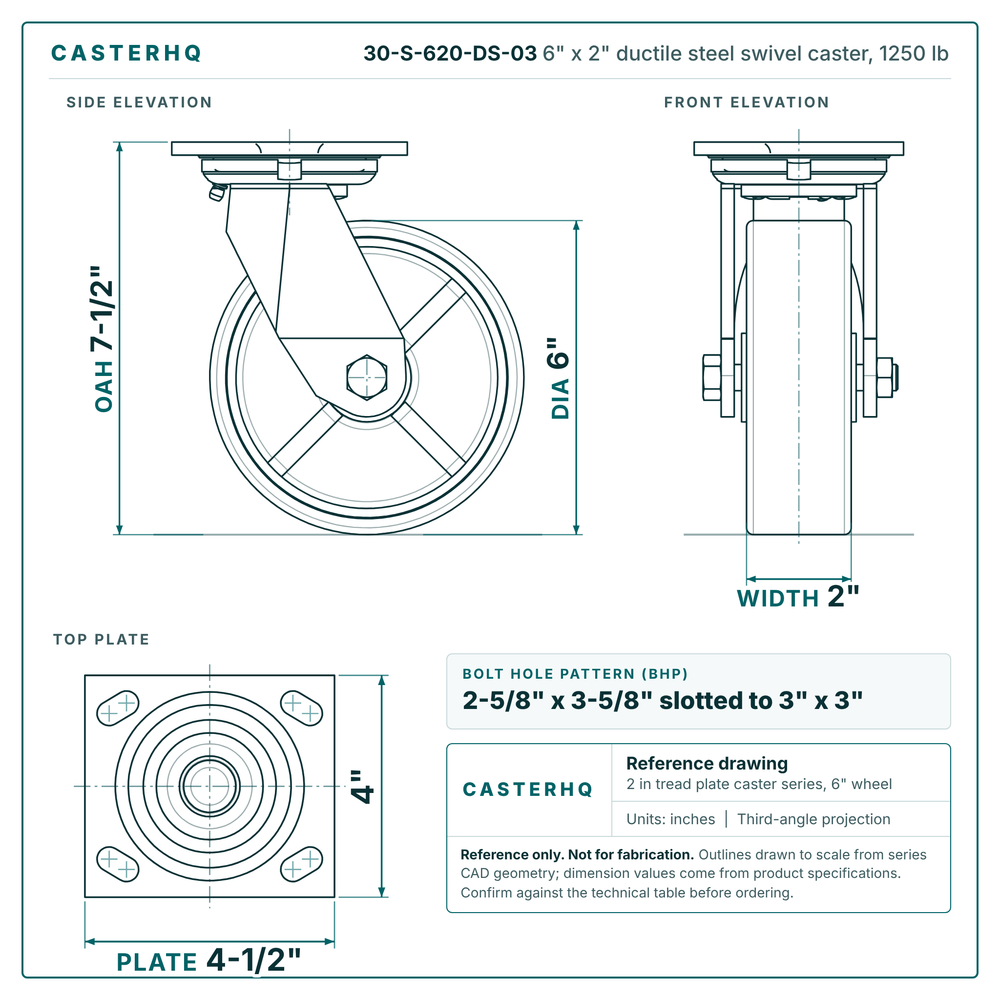

  • Wheel Diameter: 6"
  • Tread Width: 2"
  • Wheel Type: Ductile Steel

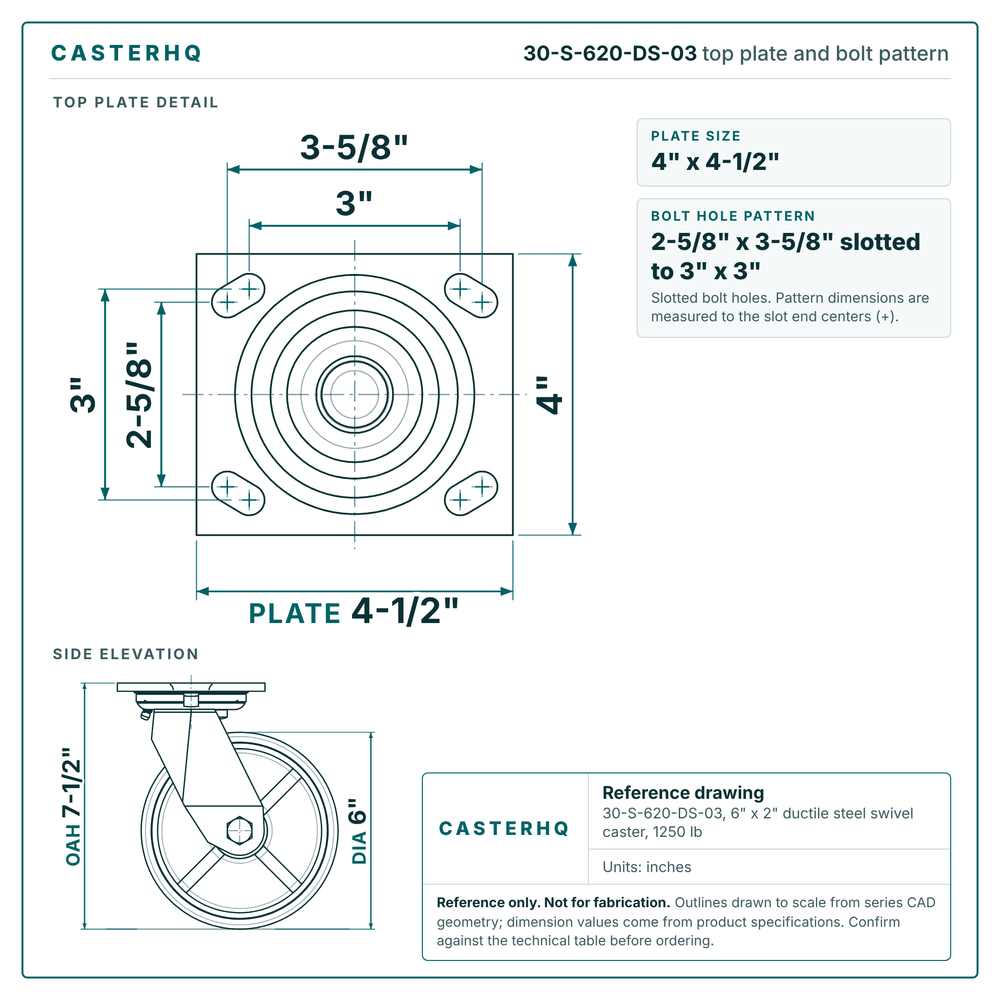

  • Plate Size: 4" x 4-1/2"
  • Load Capacity: 1250 lbs
  • Overall Height (OAH): 7-1/2"
  • Swivel Radius: 4-9/16"
  • Bearing Options: Roller or Q34 Precision Ball
  • Caster Type: Swivel
  • Attaching Bolt Diameter: 3/8"
  • Bolt Pattern: 2-5/8" x 3-5/8" to 3" x 3"
Key Features

Top 10 Product Features

  • High Load Capacity: Supports up to 1250 lbs, ideal for demanding industrial applications
  • Durable Wheel Construction: 6" x 2" Ductile Steel wheel offers superior strength and wear resistance
  • Smooth Swivel Mechanism: Double ball bearing raceways ensure effortless 360-degree rotation
  • Versatile Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  • Corrosion Resistance: Zinc plated finish protects against rust and environmental factors
  • Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  • Precision Engineering: 5/8" diameter nut and bolt kingpin for enhanced stability and durability
  • Multiple Bearing Options: Choose from Roller, Q34 Precision Ball, or Delrin bearings to suit specific needs
  • Versatile Applications: Ideal for material handling, manufacturing, and warehouse operations
  • Quality Assurance: Backed by Durastar's commitment to durability and performance in industrial environments
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 30 Series - 6" x 2" Ductile Steel Swivel Caster


Product Overview

The Durastar Medium Heavy Duty 30 Series 6" x 2" Ductile Steel Swivel Caster is an industrial-grade mobility solution engineered for demanding environments. With a robust 1250 lb load capacity, this caster delivers exceptional performance, durability, and reliability for various heavy-duty applications in industrial settings.

Key Features

  • High Load Capacity: Supports up to 1250 lbs, ideal for medium to heavy-duty industrial use
  • Durable Wheel Construction: 6" x 2" Ductile Steel wheel offers superior strength and wear resistance
  • Smooth Swivel Mechanism: Double ball bearing raceways ensure effortless 360-degree rotation
  • Versatile Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  • Corrosion Resistance: Zinc plated finish protects against rust and environmental factors
  • Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  • Precision Engineering: 5/8" diameter nut and bolt kingpin for enhanced stability and durability

Applications

This versatile caster excels in various industrial settings, including:

  • Material handling equipment and heavy-duty conveyors
  • Manufacturing facilities and assembly lines
  • Warehouse and distribution center operations
  • Heavy machinery and equipment mobility
  • Industrial platform trucks and carts
  • Food service equipment and bakery racks

Why Choose Durastar?

With over 35 years of experience in caster manufacturing, Durastar has established itself as a trusted name in industrial mobility solutions. The Medium Heavy Duty 30 Series combines cutting-edge technology with time-tested durability, ensuring enhanced operational efficiency and reduced maintenance costs in your demanding work environment.

Quality Assurance

Durastar casters are backed by a comprehensive warranty and are designed to meet or exceed industry standards. Our commitment to quality ensures that each caster undergoes rigorous testing to guarantee optimal performance in challenging industrial environments.

Customer Support

Our team of experienced professionals is ready to assist you with any questions or concerns. We pride ourselves on providing exceptional customer service and technical support to ensure you get the most out of your Durastar casters.

Elevate your equipment's mobility with the Durastar Medium Heavy Duty 30 Series Ductile Steel Swivel Caster. Experience unmatched durability, reliability, and performance in your challenging industrial applications.

Durastar Medium Heavy Duty 30 Series - 6
Durastar Medium Heavy Duty 30 Series - 6" x 2" Ductile Steel Swivel Caster - 1250 lb Capacity, 4 x 4-1/2 Top Plate

$49.00
