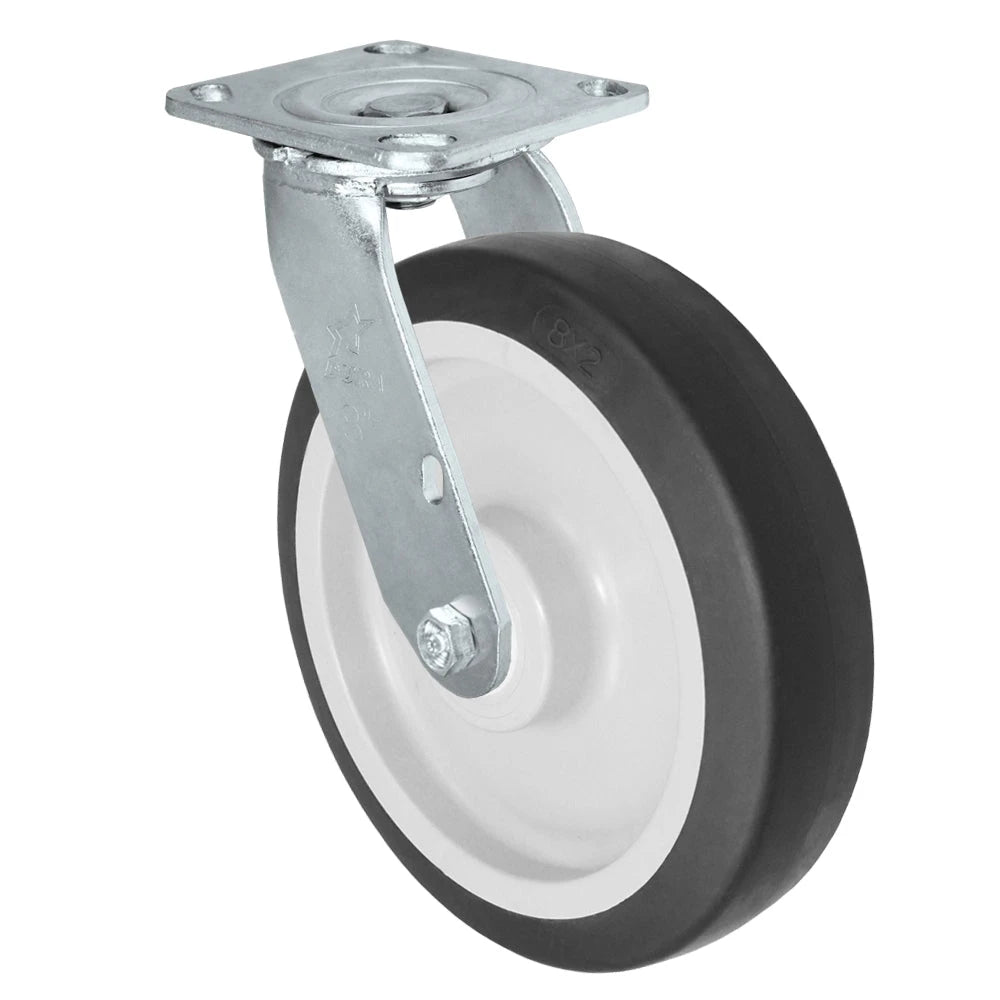

Durastar Medium Heavy Duty 30 Series - 8" x 2" Thermoplastic Rubber Swivel Caster - 600 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 30-S-820-TPR-03

Product Overview

Durastar Medium Heavy Duty 30 Series - 8" x 2" Thermoplastic Rubber Swivel Caster


Product Overview

The Durastar Medium Heavy Duty 30 Series 8" x 2" Thermoplastic Rubber Swivel Caster is an industrial-grade mobility solution designed for demanding environments. With a robust 600 lb load capacity and a 4" x 4-1/2" top plate, this caster delivers exceptional performance, durability, and reliability for various heavy-duty applications.

Key Features

  • Load Capacity: Supports up to 600 lbs, ideal for medium to heavy-duty industrial use
  • Wheel Construction: 8" x 2" Thermoplastic Rubber wheel offers superior strength, wear resistance, and floor protection
  • Swivel Mechanism: Double ball bearing raceways ensure smooth 360-degree rotation
  • Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  • Corrosion Resistance: Zinc-plated finish protects against environmental factors
  • Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  • Precision Engineering: 5/8" diameter nut and bolt kingpin for enhanced stability
  • Customizable Bearings: Choose from various bearing options to suit your specific needs

Applications

This versatile caster excels in various industrial settings, including:

  • Material handling equipment and heavy-duty conveyors
  • Manufacturing facilities and assembly lines
  • Warehouse and distribution center operations
  • Food service equipment and bakery racks
  • Industrial platform trucks and security carts
Technical Specs

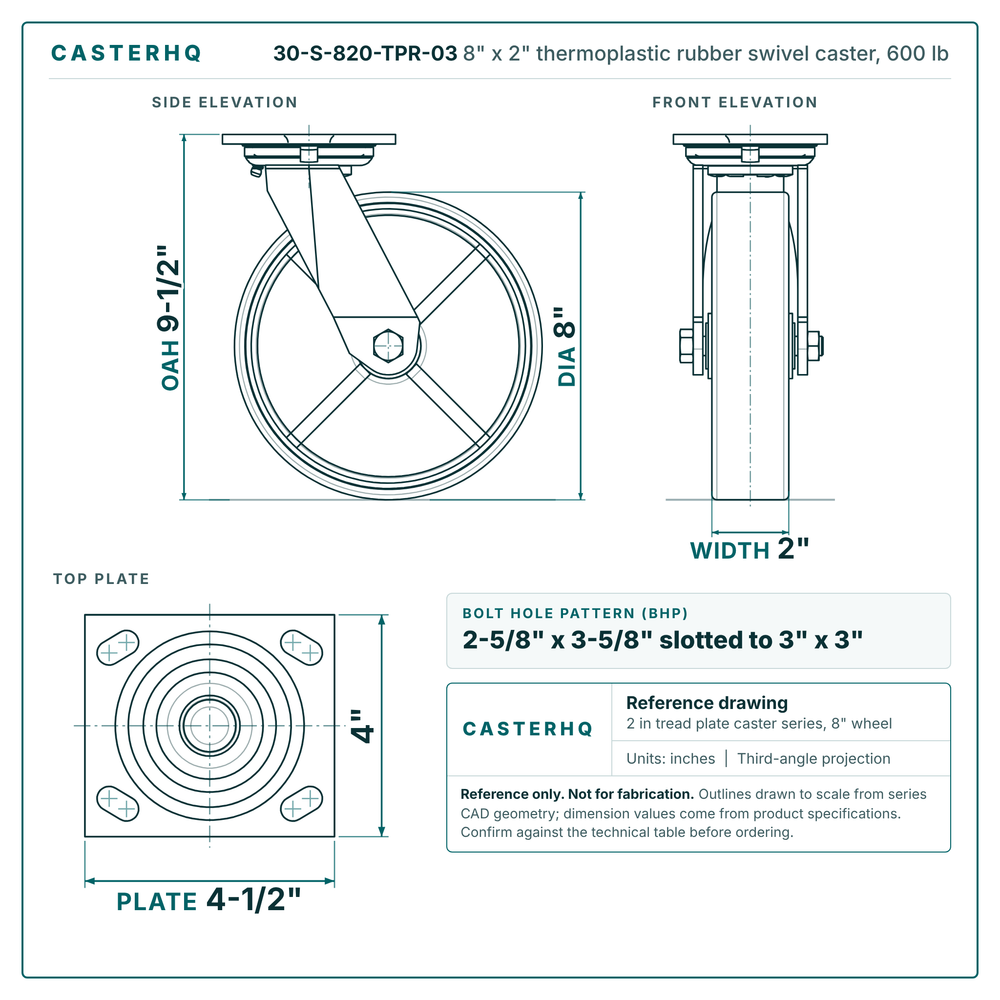

Technical Specifications: Durastar Medium Heavy Duty 30 Series Swivel Caster


Key Specifications

  • Wheel Diameter: 8 inches
  • Tread Width: 2 inches
  • Wheel Type: Thermoplastic Rubber
  • Plate Size: 4" x 4-1/2"
  • Load Capacity: 600 lbs
  • Overall Height (OAH): 9-1/2 inches
  • Swivel Radius: 6-1/8 inches
  • Bearing Options:
    • Roller
    • Q34 Precision Ball
    • 1/2" I.D. Delrin
    • 3/4" I.D. Delrin
  • Caster Type: Swivel
  • Attaching Bolt Diameter: 3/8 inch

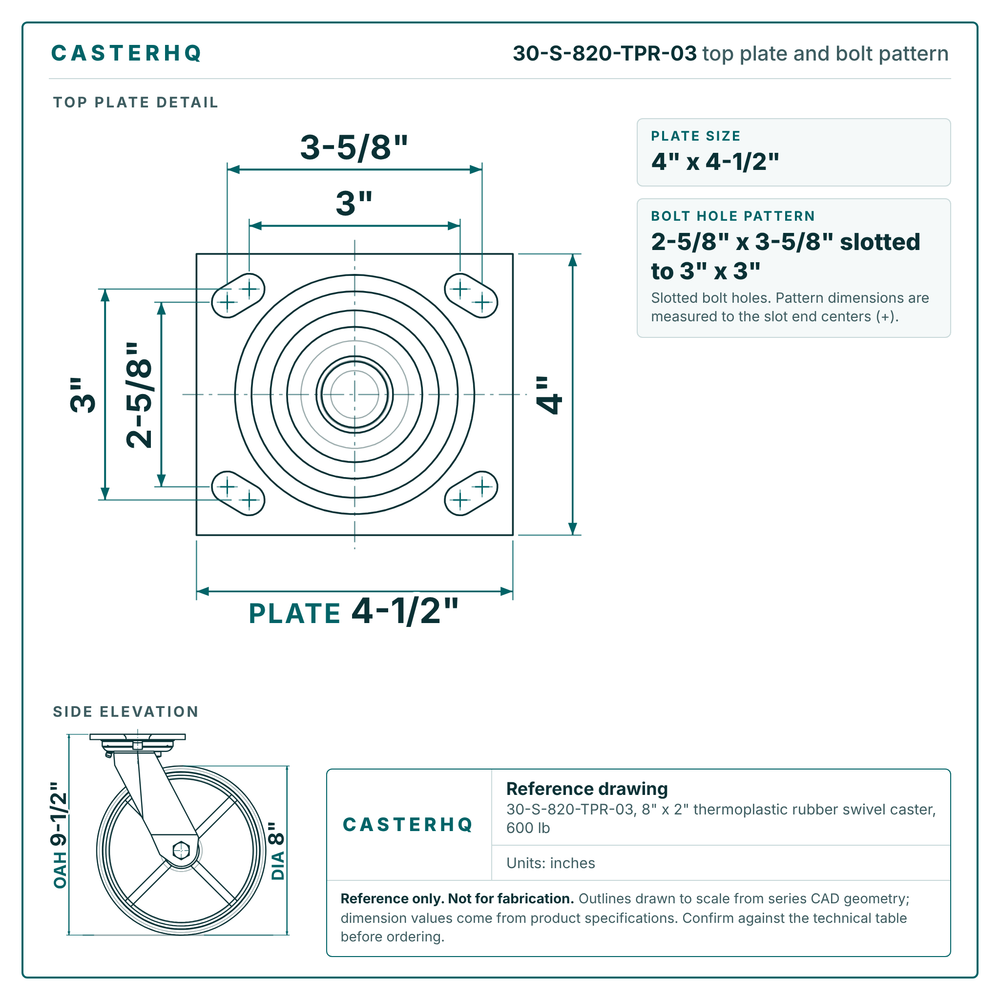

  • Bolt Pattern: 2-5/8" x 3-5/8" to 3" x 3"
Key Features

Top 10 Features: Durastar Medium Heavy Duty 30 Series Swivel Caster


Exceptional Performance and Durability

  1. High Load Capacity: Supports up to 600 lbs, ideal for medium to heavy-duty industrial applications
  2. Thermoplastic Rubber Wheel: 8" x 2" wheel offers superior floor protection and quiet operation
  3. Precision Swivel Mechanism: Double ball bearing raceways ensure smooth 360-degree rotation
  4. Versatile Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  5. Corrosion-Resistant Design: Zinc-plated finish protects against rust and environmental factors
  6. Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  7. Enhanced Stability: 5/8" diameter nut and bolt kingpin for improved durability
  8. Customizable Bearings: Choose from roller, precision ball, or Delrin bearings to suit your specific needs
  9. NSF Certification: Suitable for use in food service and sanitary environments
  10. Versatile Applications: Ideal for material handling, food service equipment, platform trucks, and more
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 30 Series - 8" x 2" Thermoplastic Rubber Swivel Caster


Product Overview

The Durastar Medium Heavy Duty 30 Series 8" x 2" Thermoplastic Rubber Swivel Caster is an industrial-grade mobility solution designed for demanding environments. With a robust 600 lb load capacity and a 4" x 4-1/2" top plate, this caster delivers exceptional performance, durability, and reliability for various heavy-duty applications.

Key Features

  • Load Capacity: Supports up to 600 lbs, ideal for medium to heavy-duty industrial use
  • Wheel Construction: 8" x 2" Thermoplastic Rubber wheel offers superior floor protection and quiet operation
  • Swivel Mechanism: Double ball bearing raceways ensure smooth 360-degree rotation
  • Mounting: 4" x 4-1/2" top plate for secure attachment to various equipment
  • Corrosion Resistance: Zinc-plated finish protects against environmental factors
  • Heavy-Duty Construction: Double welded legs and 1/4" cold forged steel top plate for increased strength
  • Precision Engineering: 5/8" diameter nut and bolt kingpin for enhanced stability
  • Customizable Bearings: Choose from roller, precision ball, or Delrin bearings to suit your specific needs

Advantages of Thermoplastic Rubber Wheels

Thermoplastic rubber (TPR) wheels offer a unique combination of benefits:

  • Shock Absorption: TPR wheels excel at absorbing impact, reducing the risk of damage to cargo and equipment
  • Excellent Traction: These wheels provide superior grip on both smooth and uneven surfaces, enhancing safety in various environments
  • Noise Reduction: TPR wheels operate quietly, making them ideal for noise-sensitive areas
  • Floor Protection: The soft yet durable material prevents scuff marks, preserving floor aesthetics
  • Chemical Resistance: TPR wheels withstand exposure to various chemicals, making them suitable for industrial settings

Applications

The Durastar 30 Series caster excels in various industrial settings, including:

  • Material handling equipment and conveyors
  • Food service equipment and bakery racks
  • Manufacturing facilities and assembly lines
  • Warehouse and distribution center operations
  • Platform trucks and security carts

Why Choose Durastar 30 Series?

The Durastar 30 Series caster combines durability, smooth operation, and customizable options, making it an excellent choice for industries where reliable mobility is crucial. With its advanced features and robust construction, this caster delivers exceptional performance in demanding environments, ensuring long-lasting reliability and reduced maintenance costs.

Invest in the Durastar 30 Series caster to experience enhanced mobility, reduced downtime, and improved efficiency in your operations. Whether you're navigating rough floors, industrial environments, or busy warehouses, this caster delivers the perfect balance of durability and smooth operation.

Durastar Medium Heavy Duty 30 Series - 8
Durastar Medium Heavy Duty 30 Series - 8" x 2" Thermoplastic Rubber Swivel Caster - 600 lb Capacity, 4 x 4-1/2 Top Plate | Choose Bearing Options

$50.00
