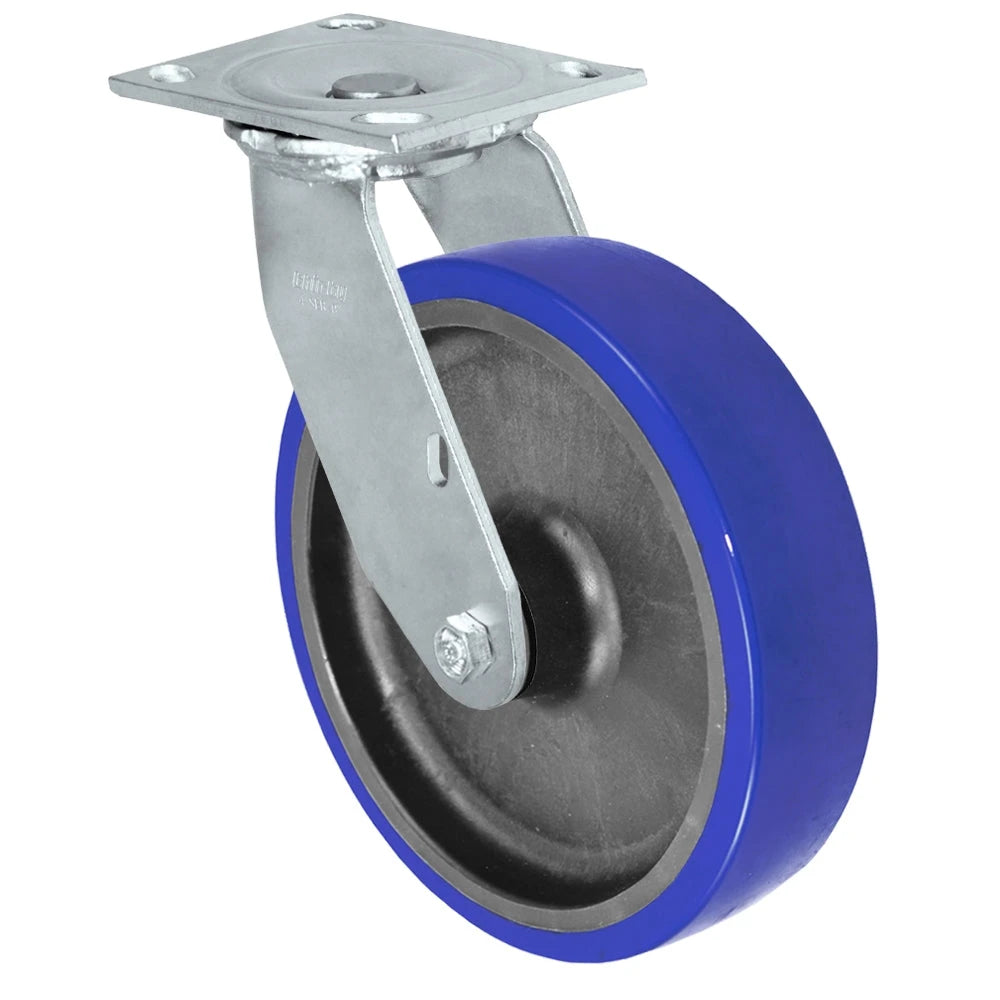

The Durastar Medium Heavy Duty 34 Series 8" x 2" Polyurethane on Glass-filled Nylon Swivel Caster is engineered to deliver exceptional performance in demanding applications. Built with a 10mm thick polyurethane tread, this caster provides superior durability and smooth movement, making it an excellent choice for heavy-duty use in industrial, warehouse, and commercial settings.
With a robust load capacity of 1250 lbs, this caster can handle even the most challenging loads with ease. The glass-filled nylon construction ensures strength while maintaining resistance to wear and tear, making this caster a reliable solution for long-term use. Its swivel design allows for enhanced maneuverability in tight or confined spaces, providing optimal mobility for equipment and carts.
The caster features a 4" x 4-1/2" top plate, making it versatile and compatible with a wide range of applications, from material handling to machinery. Whether you're upgrading your industrial equipment or optimizing your warehouse mobility, the Durastar Medium Heavy Duty Caster offers performance, durability, and reliability.
Invest in the Durastar Medium Heavy Duty 34 Series Caster to enhance your operational efficiency and mobility. With unmatched durability and a superior load capacity, it’s the perfect choice for any heavy-duty application. Shop now and experience the difference!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Medium Heavy Duty 34 Series Swivel Caster is designed to provide exceptional performance in heavy-duty applications. Featuring a robust 8" x 2" polyurethane tread mounted on a glass-filled nylon hub, this caster offers durability and smooth maneuverability, even under heavy loads. With a 1250 lb load capacity, it is engineered for industrial, commercial, and warehouse use, delivering the reliability and strength needed for demanding environments.
Built to withstand the toughest conditions, the 10mm thick polyurethane tread ensures superior resistance to wear and tear, providing a long-lasting solution for mobility challenges. Whether you’re transporting equipment, carts, or machinery, this caster guarantees smooth rolling and effortless maneuverability, even in tight spaces. The swivel design allows for 360-degree rotation, giving you maximum control and flexibility in your operations.
The Durastar Medium Heavy Duty 34 Series Swivel Caster is engineered for a wide variety of applications, including:
With its combination of durability, high load capacity, and versatile design, the Durastar Medium Heavy Duty 34 Series Swivel Caster is the perfect solution for demanding applications that require reliability and ease of movement. Whether you are looking to upgrade your industrial equipment or optimize your warehouse operations, this caster provides the performance you need to enhance productivity and mobility.
Invest in the Durastar Swivel Caster today and experience superior functionality and long-lasting performance for your mobility needs. Perfect for industrial, commercial, and medical environments, this caster ensures that your equipment moves smoothly and efficiently, saving you time and effort in the process.
This 8" x 2" Polyurethane Glass-Filled Nylon Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

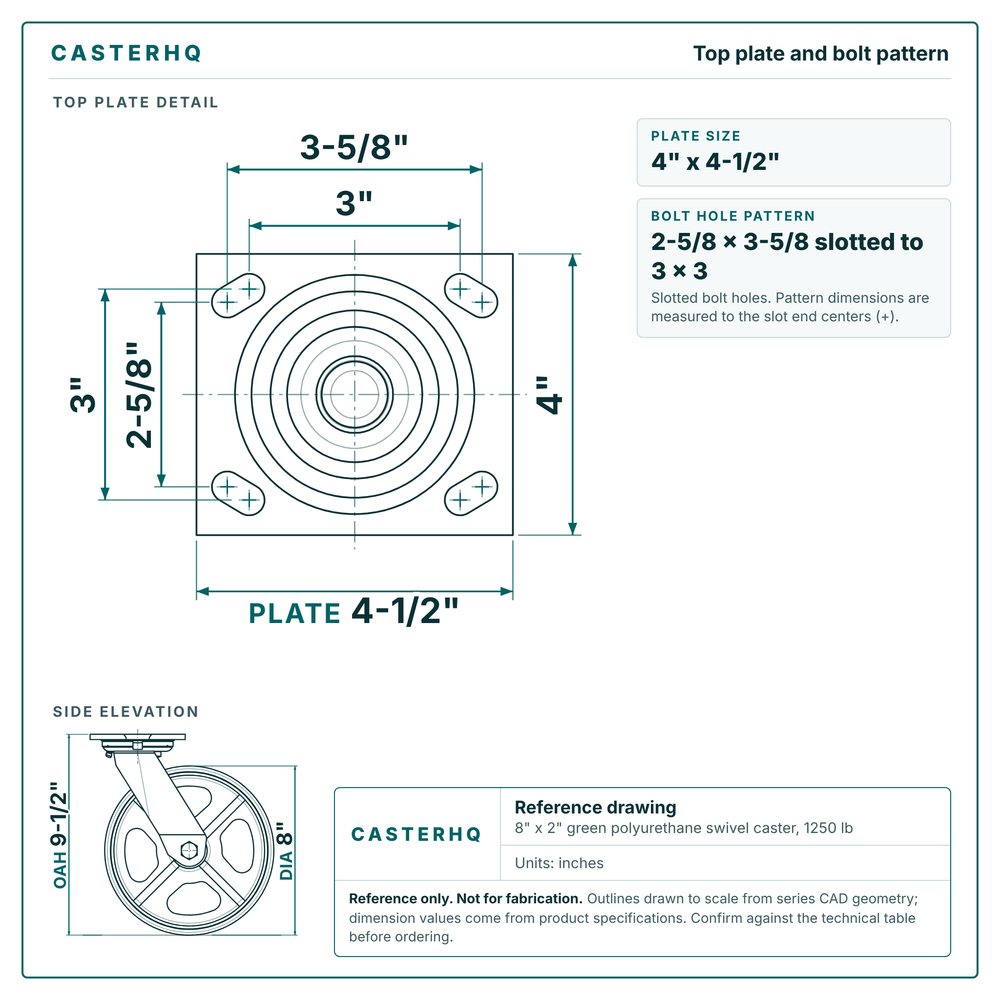

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.
Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.
A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.
$39.00
| Identification | |
|---|---|
| Part Number / SKU | 34-S-820-MU-03 |
| Product Series | Durastar 34 Series |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 6-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Nylon |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 180°F |

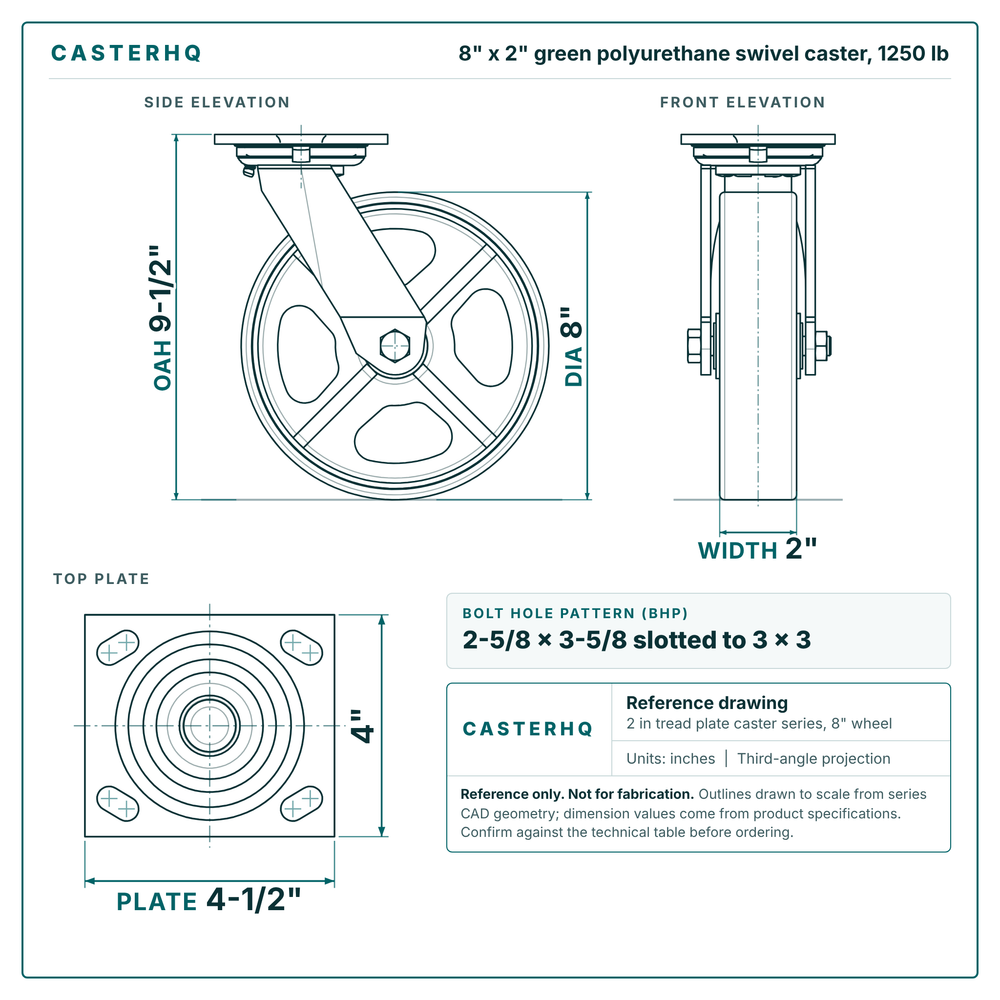

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbs | 8" × 2"Polyurethane | Swivel | 9-1/2" | $39.00 | Viewing | |
| 1250 lbsSame capacity | 8" × 2"Phenolic | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbsSame capacity | 8" × 2"Semi-Steel | Rigid | 9-1/2" | $43.00 | View → |
