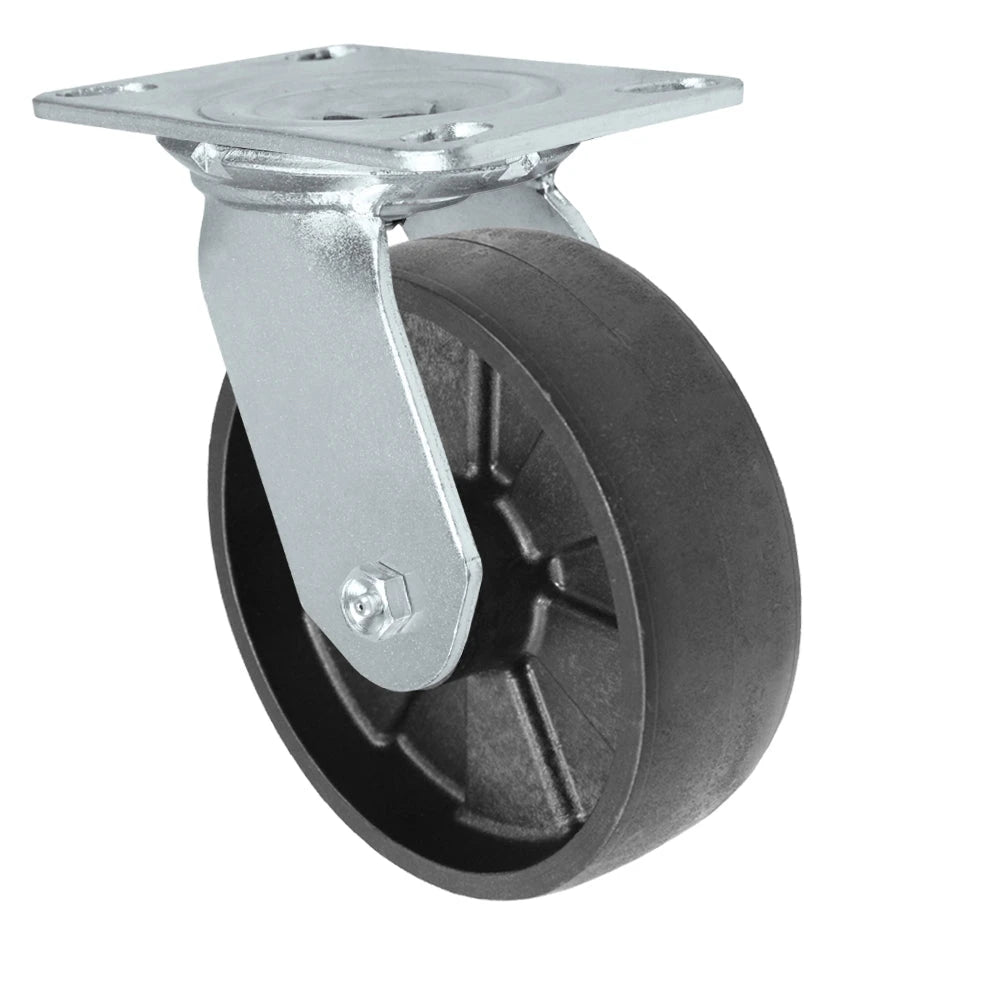

Durastar Medium Heavy Duty 35 Series - 6" x 2" Glass-filled Nylon Swivel Caster - 1200 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-620-MA-04

Product Overview

Durastar Medium Heavy Duty 35 Series - 6" x 2" Glass-filled Nylon Swivel Caster - 1200 lb Capacity


Product Overview

The Durastar Medium Heavy Duty 35 Series Glass-filled Nylon Swivel Caster represents the pinnacle of industrial mobility solutions. Featuring a robust 6" x 2" glass-filled nylon wheel, this swivel caster supports an impressive load capacity of up to 1200 lbs while ensuring smooth and efficient mobility. With customizable bearing options, it is designed to adapt to a variety of operational needs in demanding industrial environments.

Key Features

  • Wheel Size: 6" diameter x 2" width Glass-filled Nylon
  • Load Capacity: Supports up to 1200 lbs per caster
  • Caster Type: Swivel for enhanced maneuverability
  • Bearing Options: Choose from Roller, Precision Ball, ½" Delrin, or ¾" Delrin
  • Durable Construction: Zinc-plated finish for corrosion resistance and longevity
  • Temperature Range: Suitable for use in environments from -40°F to 250°F
  • Maintenance: Easy to clean and maintain

Applications

This versatile caster is ideal for use in:

  • Manufacturing plants and material handling facilities
  • Warehouses and distribution centers
  • Food processing equipment
  • Heavy-duty industrial carts and dollies
  • Automated guided vehicles (AGVs)
  • Environments with exposure to chemicals or extreme temperatures

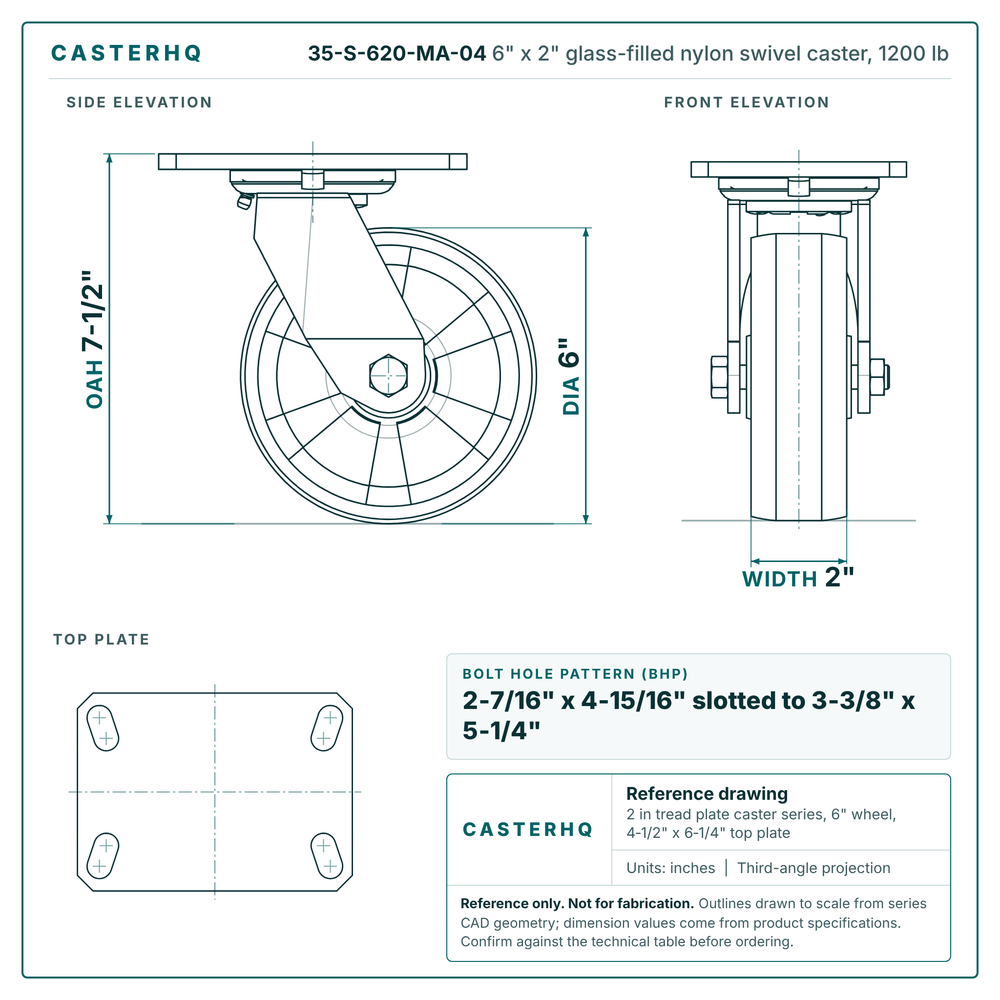

Technical Specs

Technical Specifications

  • Wheel Diameter: 6"
  • Tread Width: 2"
  • Wheel Type: Glass-filled Nylon
  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1200 lbs per caster
  • Overall Height (OAH): 7-1/2"
  • Swivel Radius: 4-3/4"
  • Bearing Options: Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin
  • Caster Type: Swivel for enhanced maneuverability
  • Attaching Bolt Diameter: 1/2"
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Product Features: Durastar Medium Heavy Duty 35 Series Glass-filled Nylon Swivel Caster

  • High Load Capacity: Supports up to 1200 lbs per caster, ideal for heavy-duty industrial applications
  • Glass-filled Nylon Wheel: 6" x 2" size offers superior strength and durability, with up to 70% higher tensile strength than standard nylon
  • Swivel Design: Enhances maneuverability with a 4-3/4" radius, perfect for navigating complex industrial layouts
  • Customizable Bearings: Choose from Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin options to suit specific needs
  • Extreme Temperature Resistance: Suitable for use in environments from -40°F to 250°F, ensuring versatility across various settings
  • Chemical Resistance: Excellent resistance to solvents and harsh chemicals, ideal for demanding industrial environments
  • Low Rolling Resistance: Smooth operation and easy maneuverability, reducing strain on operators and equipment
  • Durable Construction: Zinc-plated finish for improved longevity and corrosion resistance
  • Versatile Applications: Ideal for manufacturing plants, warehouses, food processing equipment, and automated guided vehicles (AGVs)

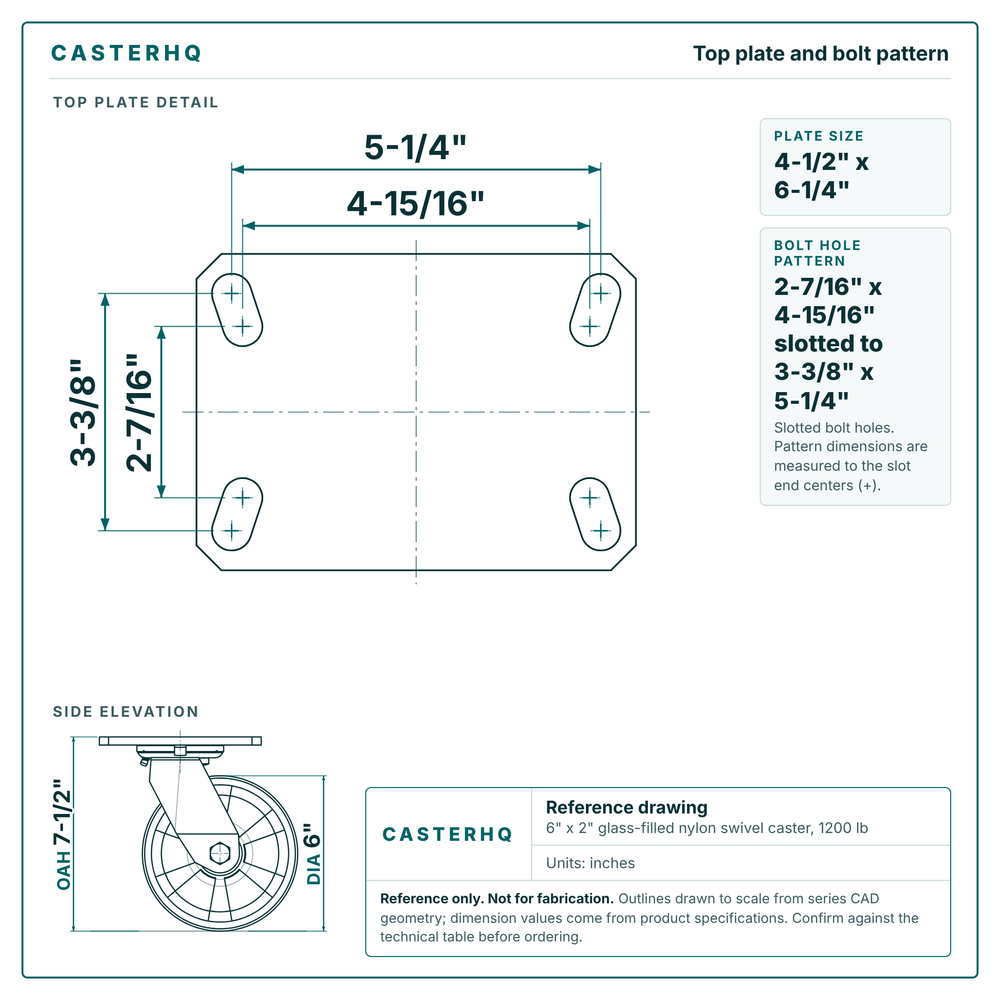

  • Easy Installation: 4-½" x 6-¼" top plate with 2-7/16" x 4-15/16" to 3-⅜" x 5-¼" bolt pattern for secure mounting
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series - 6" x 2" Glass-filled Nylon Swivel Caster - 1200 lb Capacity

The Durastar Medium Heavy Duty 35 Series Glass-filled Nylon Swivel Caster represents the pinnacle of industrial mobility solutions, combining robust construction with smooth operation. Designed for modern industrial and commercial applications, this 6" x 2" caster offers a perfect balance of durability and maneuverability, supporting loads up to 1200 lbs.

Key Features and Benefits

  • High Load Capacity: Supports up to 1200 lbs per caster
  • Glass-filled Nylon Wheel: 6" x 2" size for excellent durability and chemical resistance
  • Swivel Design: Enhances maneuverability with a 4-3/4" radius
  • Customizable Bearings: Choose from Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin options
  • Durable Construction: Zinc-plated finish for improved longevity and corrosion resistance
  • Temperature Range: Suitable for use in environments from -40°F to 250°F
  • Easy Maintenance: Designed for long-lasting performance with minimal upkeep

Glass-filled Nylon Wheel Advantages

  • Impervious to most chemicals, solvents, oil, salt, and alkalines
  • Lightweight yet capable of supporting heavy loads
  • Superior durability and impact resistance
  • Low rolling resistance for smooth operation
  • Non-marking and floor-protective
  • Ideal for wet applications and harsh environments

Why Choose Durastar?

With over 35 years of experience in manufacturing high-quality casters and wheels, Durastar has been serving industries from Automotive and Aerospace to Food Processing and Industrial Manufacturing. Our Medium Heavy Duty 35 Series casters undergo rigorous testing to ensure they meet or exceed industry standards for strength, durability, and performance. By choosing Durastar, you're investing in a product that combines cutting-edge design with dependable, everyday functionality to elevate your operational capabilities.

Expert Insight

Our team of caster specialists recommends the 6" x 2" Glass-filled Nylon wheel for its excellent chemical resistance, durability, and performance in wet applications. The swivel design enhances maneuverability in complex industrial layouts, making it ideal for dynamic work environments. For maximum longevity and performance, we suggest regular inspection and maintenance, particularly in harsh or chemically-exposed environments.

Experience the perfect blend of durability, chemical resistance, and maneuverability with Durastar's 35 Series Glass-filled Nylon Swivel Caster. Engineered for demanding industrial environments, this caster delivers exceptional performance and longevity, ensuring your equipment moves smoothly and efficiently in any setting.
