Durastar Medium Heavy Duty 35 Series - 6" x 2" HD Polyolefin Swivel Caster - 1000 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-620-HPO-04

Product Overview

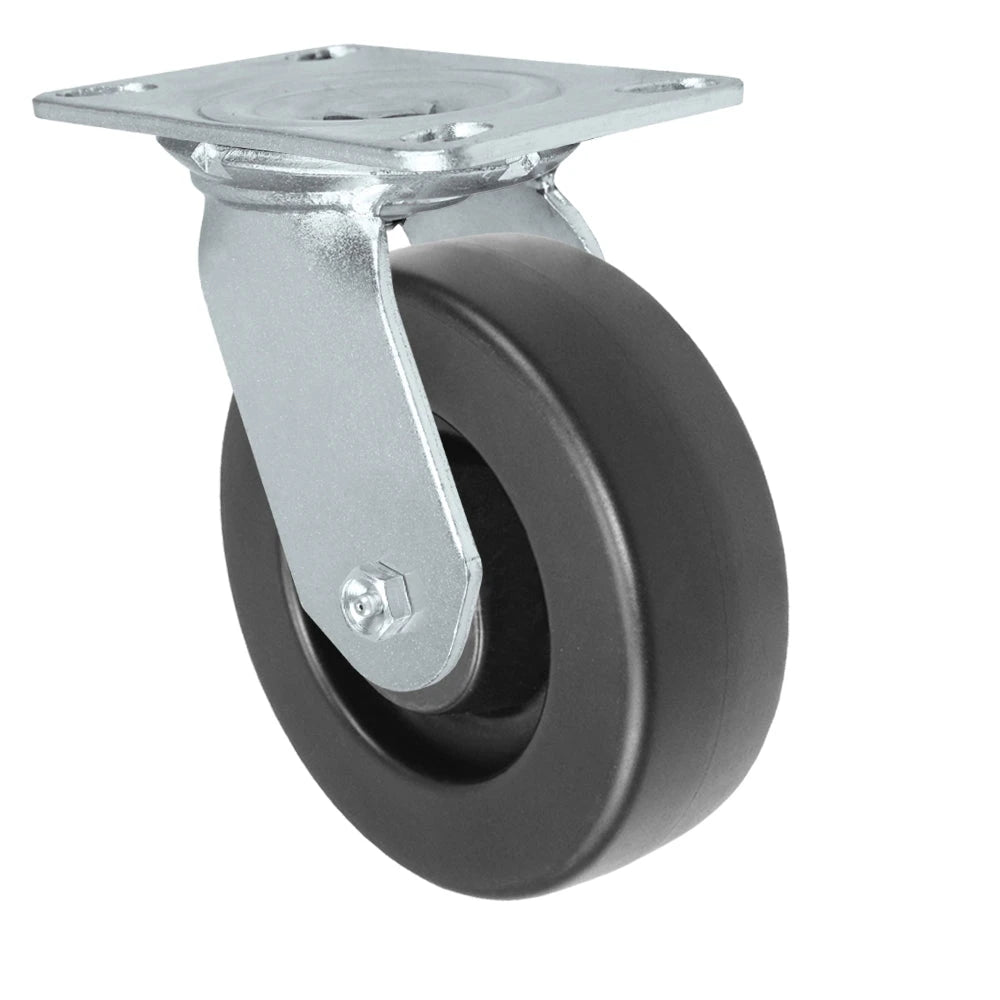

Durastar Medium Heavy Duty 35 Series - 6" x 2" HD Polyolefin Swivel Caster - 1000 lb Capacity


Product Overview

The Durastar Medium Heavy Duty 35 Series caster is engineered to meet the demands of modern industrial and commercial applications. Featuring a durable 6" x 2" HD Polyolefin wheel, this swivel caster supports an impressive load capacity of up to 1000 lbs while ensuring smooth and efficient mobility. With customizable bearing options, it is designed to adapt to a variety of operational needs.

Key Features

  • Wheel Size: 6" diameter x 2" width HD Polyolefin
  • Load Capacity: Supports up to 1000 lbs per caster
  • Caster Type: Swivel for enhanced maneuverability
  • Bearing Options: Choose from Roller, Precision Ball, or Delrin bearings
  • Durable Construction: Zinc-plated finish for corrosion resistance and longevity
  • Temperature Range: Operates in environments ranging from -45°F to 180°F
  • Non-marking Wheel: Protects floor surfaces while reducing maintenance costs

Applications

This versatile caster is ideal for use in:

  • Manufacturing plants and material handling facilities
  • Warehouses and distribution centers
  • Food service equipment and processing carts
  • Industrial carts and dollies
  • Platform trucks and utility carts
Technical Specs

Technical Specifications

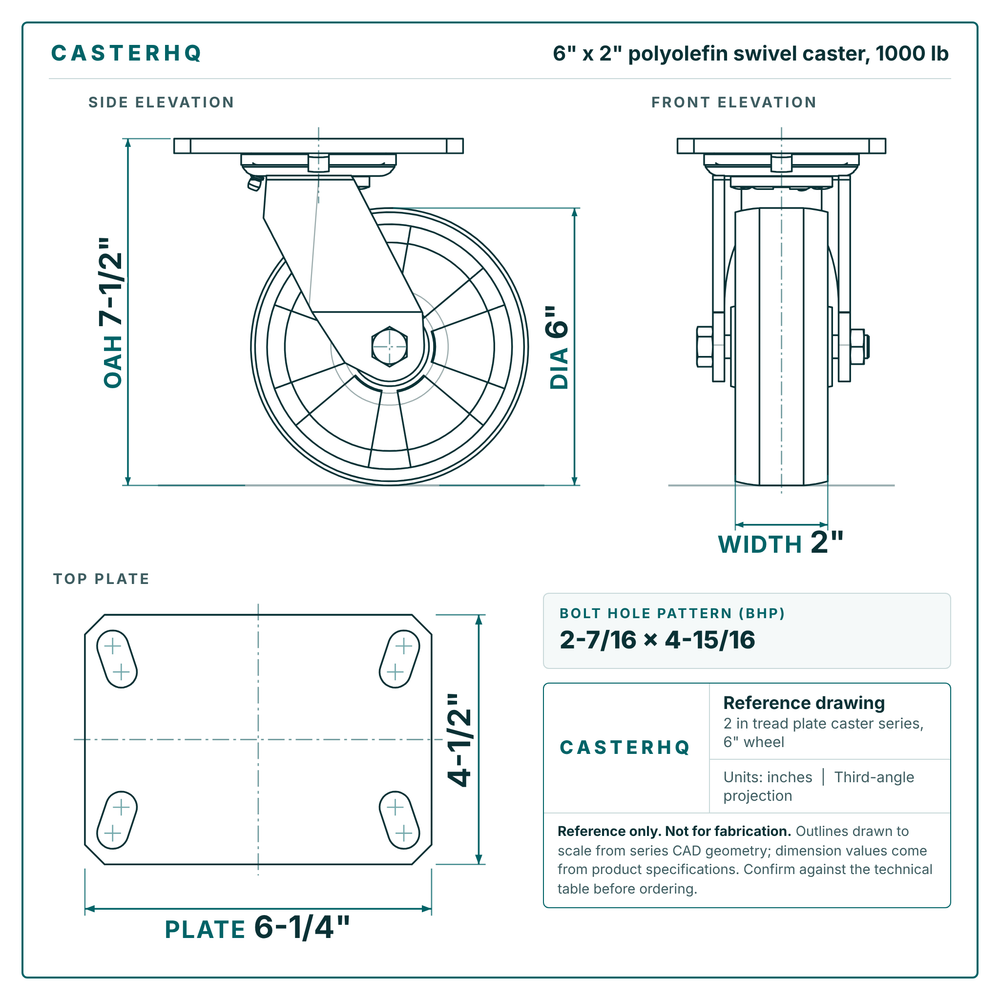

  • Wheel Diameter: 6"
  • Tread Width: 2"
  • Wheel Type: HD Polyolefin

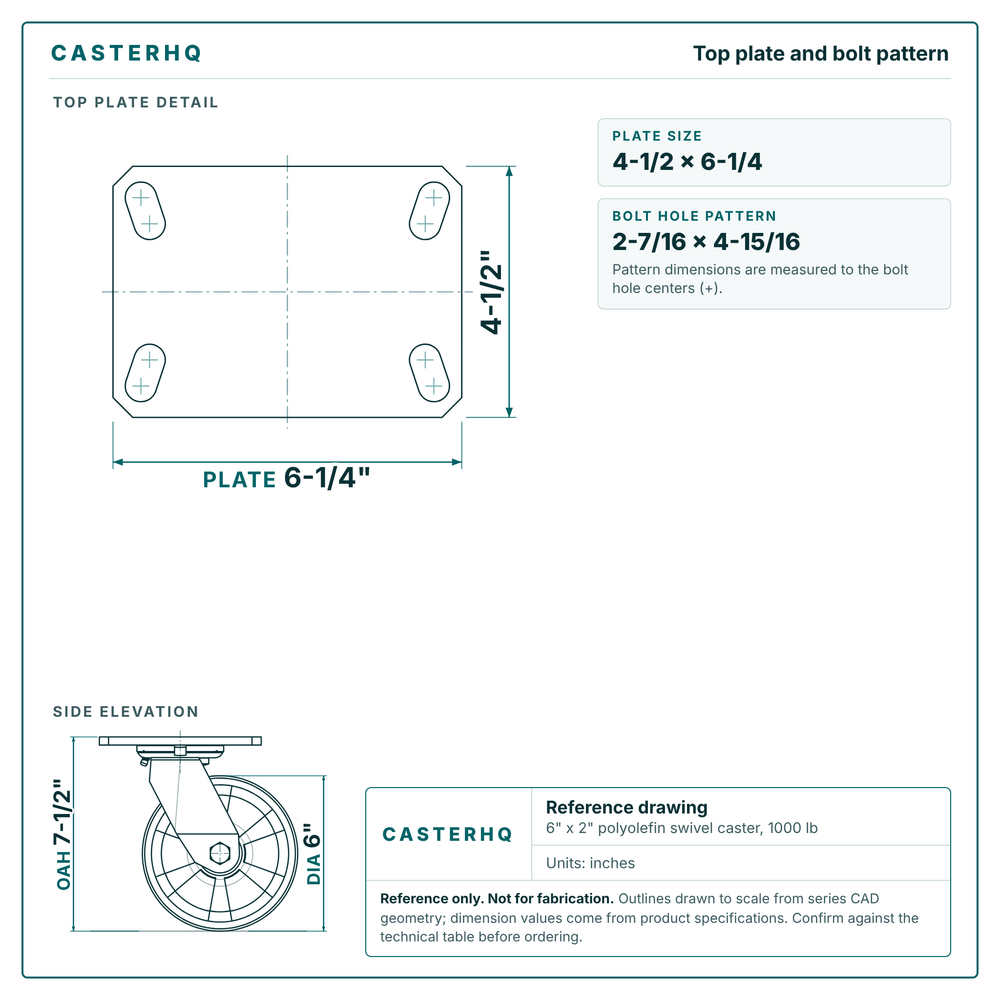

  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1000 lbs per caster
  • Overall Height (OAH): 7-1/2"
  • Swivel Radius: 4-3/4"
  • Bearing Options: Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin
  • Caster Type: Swivel for enhanced maneuverability
  • Attaching Bolt Diameter: 1/2"
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Product Features: Durastar Medium Heavy Duty 35 Series Caster

  • 1,000 lb Load Capacity: Engineered for heavy-duty industrial applications such as aerospace, manufacturing, and material handling
  • HD Polyolefin Wheel: 6" x 2" non-marking wheel resists chemicals, oils, and abrasion while protecting floors
  • Low-Profile Swivel Design: 4-3/4" swivel radius enhances maneuverability in tight spaces like warehouses and production lines
  • Customizable Bearings: Choose Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin bearings for tailored performance
  • Zinc-Plated Durability: Corrosion-resistant finish ensures longevity in harsh environments (-45°F to 180°F)
  • Versatile Applications: Ideal for food service equipment, industrial carts, platform trucks, and aerospace components
  • Bolt-Ready Installation: 4-½" x 6-¼" top plate with 2-7/16" x 4-15/16" to 3-⅜" x 5-¼" bolt pattern for secure mounting
  • Chemical Resistance: HD Polyolefin construction withstands acids, solvents, and water for low-maintenance use
  • Reduced Operator Fatigue: Smooth-rolling design requires minimal effort for movement, improving workplace efficiency
  • Industry-Proven Reliability: Backed by Durastar’s 35+ years of expertise in industrial mobility solutions
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series - 6" x 2" HD Polyolefin Swivel Caster - 1000 lb Capacity

The Durastar Medium Heavy Duty 35 Series caster represents the pinnacle of industrial mobility solutions, combining robust construction with smooth operation. Designed for modern industrial and commercial applications, this 6" x 2" HD Polyolefin Swivel Caster offers a perfect balance of durability and maneuverability, supporting loads up to 1000 lbs.

Key Features and Benefits

  • High Load Capacity: Supports up to 1000 lbs per caster
  • HD Polyolefin Wheel: 6" x 2" size for excellent floor protection and quiet operation
  • Swivel Design: Enhances maneuverability with a 4-3/4" radius
  • Customizable Bearings: Choose from Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin options
  • Durable Construction: Zinc-plated finish for improved longevity and corrosion resistance
  • Temperature Range: Suitable for use from -45°F to 180°F
  • Non-marking: Ideal for protecting floor surfaces

HD Polyolefin Wheel Advantages

  • Heavy-duty injection-molded wheel for superior strength and durability
  • Resistant to high shock, impact, chemicals, and abrasion
  • Water-resistant properties for reliable performance in wet environments
  • Smooth rolling operation with reduced force needed for movement
  • Offers superior strength compared to standard polyolefin wheels

Why Choose Durastar?

With over 35 years of experience in manufacturing high-quality casters and wheels, Durastar has been serving industries from Automotive and Aerospace to Medical and Industrial. Our Medium Heavy Duty 35 Series casters undergo rigorous testing to ensure they meet or exceed industry standards for strength, durability, and performance. By choosing Durastar, you're investing in a product that combines cutting-edge design with dependable, everyday functionality to elevate your operational capabilities.

Expert Insight

Our team of caster specialists recommends the 6" x 2" HD Polyolefin wheel for its excellent floor protection, impact resistance, and quiet operation. The swivel design enhances maneuverability in tight spaces, making it ideal for dynamic work environments. For maximum longevity and performance, we suggest regular maintenance, including periodic lubrication of the swivel raceway and checking for debris buildup around the wheel.

Experience the perfect blend of durability, maneuverability, and floor protection with Durastar's 35 Series HD Polyolefin Swivel Caster. Engineered for demanding industrial environments, this caster delivers exceptional performance and longevity, ensuring your equipment moves smoothly and efficiently in any setting.
