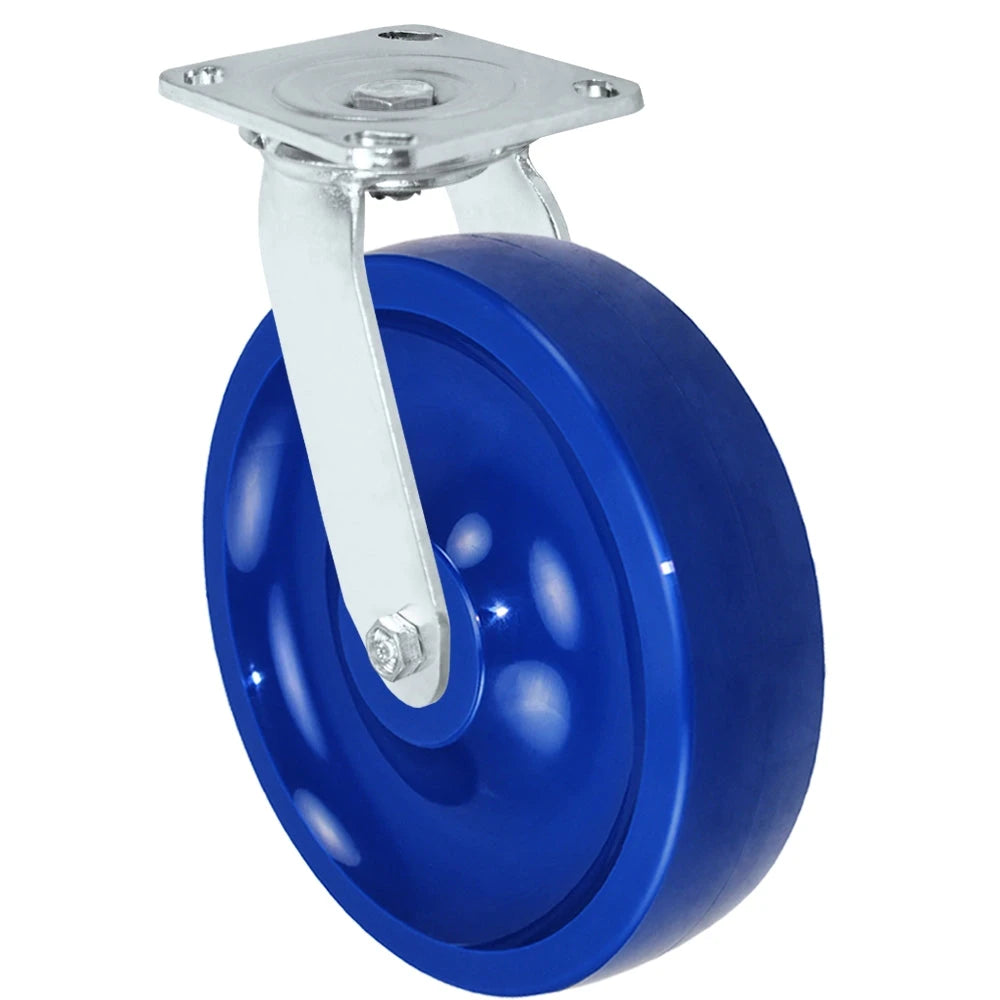

The Durastar Medium Heavy Duty S30 Series Swivel Caster is engineered for high-capacity performance, offering a robust 1250 lb weight capacity. Designed with a solid blue polyurethane wheel, this caster ensures durability and smooth, quiet operation in industrial settings. The 4" x 4-1/2" stainless steel top plate guarantees long-lasting reliability, providing secure attachment to your equipment.
Ideal for environments that require heavy-duty mobility solutions, the S30 Series caster is perfect for industrial, warehouse, and material handling applications. Its ergonomic swivel design allows for effortless maneuverability, enhancing workflow and reducing strain on operators. This caster is built to withstand tough conditions while maintaining superior performance over time.
Whether you're upgrading your facility or replacing existing casters, the Durastar Medium Heavy Duty S30 Series caster is the perfect choice for those seeking quality, performance, and durability in demanding environments.
Trust Durastar for all your heavy-duty caster needs. Upgrade to the S30 Series for superior performance and reliability. Order today for enhanced mobility and operational efficiency!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Durastar Medium Heavy Duty S30 Series Swivel Caster is a premium mobility solution designed to meet the toughest industrial and warehouse demands. Built with superior craftsmanship and materials, this caster ensures reliable performance, high durability, and smooth operation, making it the ideal choice for businesses looking to enhance their mobility systems.
The Durastar S30 Series Swivel Caster is perfect for a range of applications where reliability, durability, and ease of movement are essential. Common uses include:
Durastar’s commitment to quality and innovation is evident in the S30 Series Swivel Caster. This caster is designed to improve efficiency, reduce operational strain, and enhance mobility solutions for businesses across multiple industries. Whether you're upgrading your existing equipment or building a new system, Durastar provides a reliable, high-performance caster that meets all your needs.
With a focus on ergonomic design, durability, and capacity, this caster helps optimize productivity and reduces downtime, offering an ideal solution for businesses looking to enhance their operational efficiency.
This 8" x 2" Polyurethane Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Solid Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

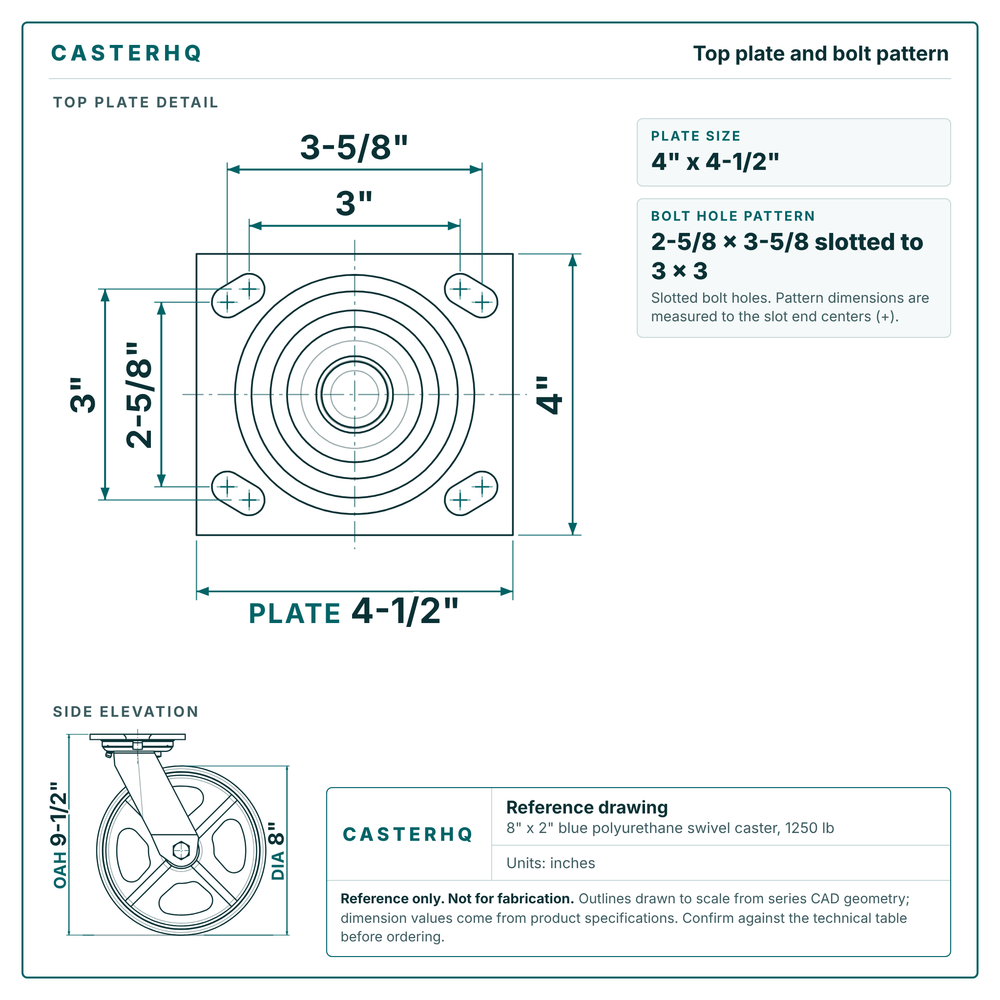

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Solid Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$58.00
| Identification | |
|---|---|
| Part Number / SKU | S30-S-820-SPU-03 |
| Product Series | Durastar 30 Series (Stainless) |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 6-1/8" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" slotted to 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Solid Polyurethane |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45°F to 180°F |

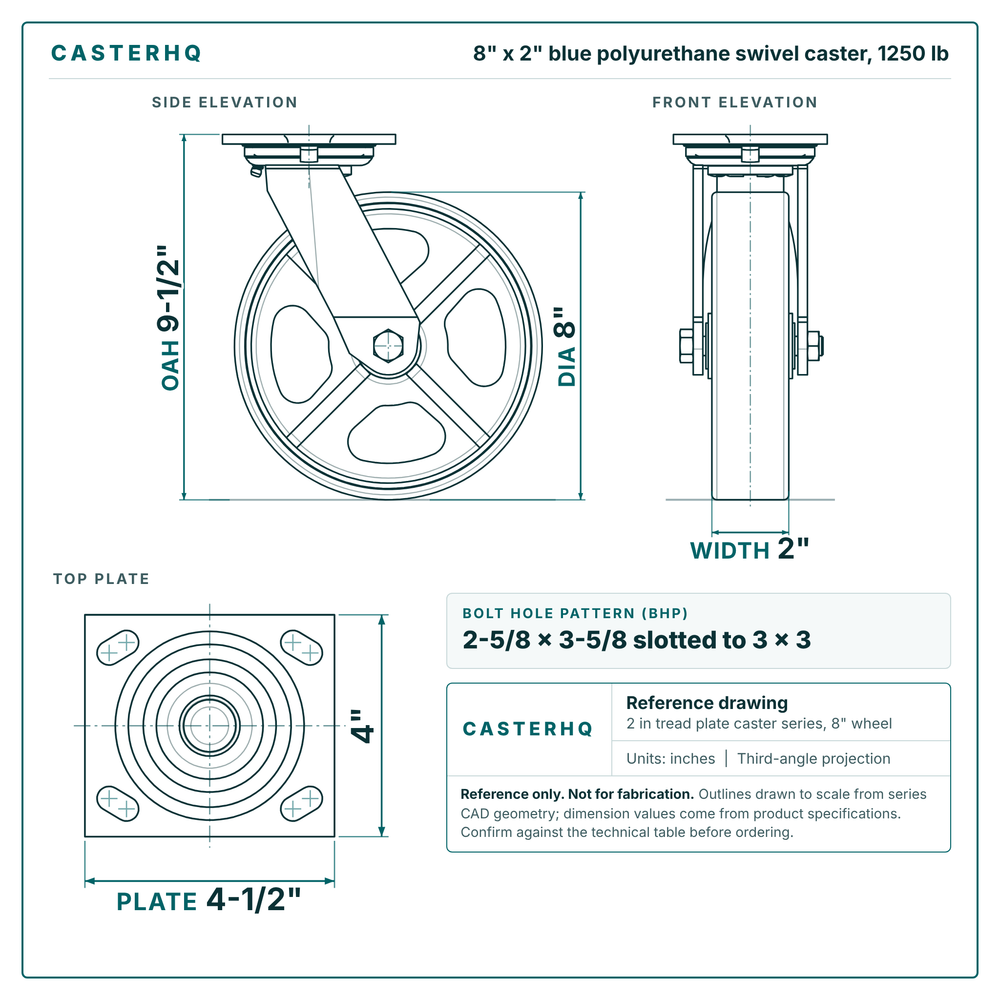

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 2" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | 9-1/2" | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbs | 8" × 2"Solid Polyurethane | Swivel | 9-1/2" | $58.00 | Viewing | |
| 1250 lbsSame capacity | 8" × 2"Phenolic | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbsSame capacity | 8" × 2"Semi-Steel | Rigid | 9-1/2" | $43.00 | View → |
