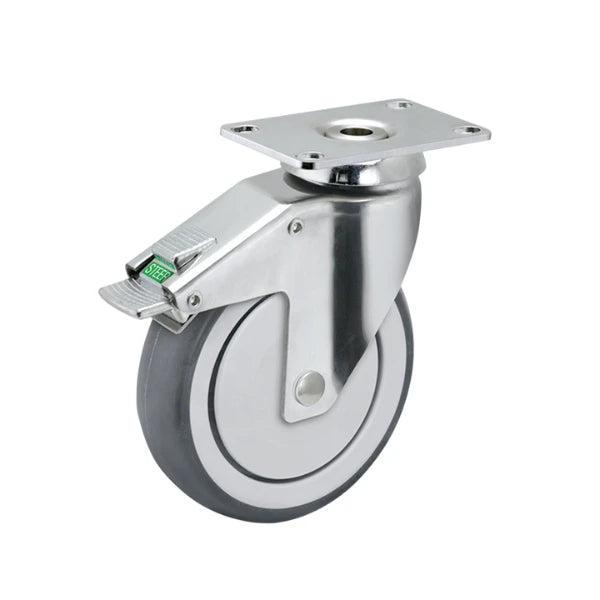

The MedCaster 4" Swivel Caster with Direction Lock Brake is a high-performance mobility solution designed for medical, pharmaceutical, and light-duty utility applications. This caster delivers a smooth and quiet roll, thanks to its thermoplastic rubber wheel, while protecting sensitive flooring surfaces from scuffs and marks.
The integrated directional lock brake adds precision and safety, allowing the caster to be locked in a forward direction when needed—an essential feature for maneuvering medical carts, patient chairs, and utility equipment in controlled environments.
Engineered with a chrome-plated frame and thread guard for durability and cleanliness, this caster is a perfect fit for hospitals, labs, and hospitality environments where both performance and hygiene are top priorities.
Improve maneuverability, floor care, and operational efficiency with the CH-04TPP-125-DL-TP01 MedCaster Swivel Caster. Trusted in medical and commercial environments for its reliability, safety, and user-friendly design.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Faultless CH-04TPP-125-DL-TP01 is a premium-grade swivel caster engineered for healthcare, pharmaceutical, and commercial utility applications. Featuring a 4" x 1-1/4" thermoplastic rubber wheel, this caster delivers smooth, quiet mobility while protecting sensitive floor surfaces from scratches and marks.
This caster comes equipped with a directional lock brake, allowing users to secure the wheel's direction for greater control in tight corridors and patient care environments. Its chrome-plated housing resists corrosion and enhances hygiene, making it ideal for hospital rooms, laboratories, and recovery units.
Whether you're outfitting a hospital bed, a case cart, or a mobile workstation, this caster supports a wide range of light-duty applications. It’s designed to perform seamlessly in:
A built-in thread guard helps prevent hair, fibers, or debris from clogging the wheel, preserving smooth operation and extending product life. The non-marking thermoplastic tread makes this caster ideal for delicate flooring often found in medical and hospitality environments.
With a 2-1/2" x 3-5/8" top plate, installation is quick and secure, fitting a wide range of industry-standard mounting patterns. The 240 lbs load capacity ensures reliable performance even with frequent use.
With a longstanding reputation for dependable quality and performance, Faultless offers mobility solutions trusted by professionals across healthcare, hospitality, and industrial sectors. This caster combines precision engineering with user-centric features that prioritize safety, ease of use, and long-term value.
Enhance your medical or utility equipment with the Faultless CH-04TPP-125-DL-TP01 swivel caster. Designed to meet the needs of professionals who value clean design, quiet operation, and safe maneuverability.
This MedCaster CH-04TPP-125-DL-TP01 4" x 1-1/4" TPR Swivel Caster – 240 lb is rated to 240 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 1-1/4" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5.4375". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$74.00
| Identification | |
| Brand | MedCaster |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 5.4375" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 240 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
