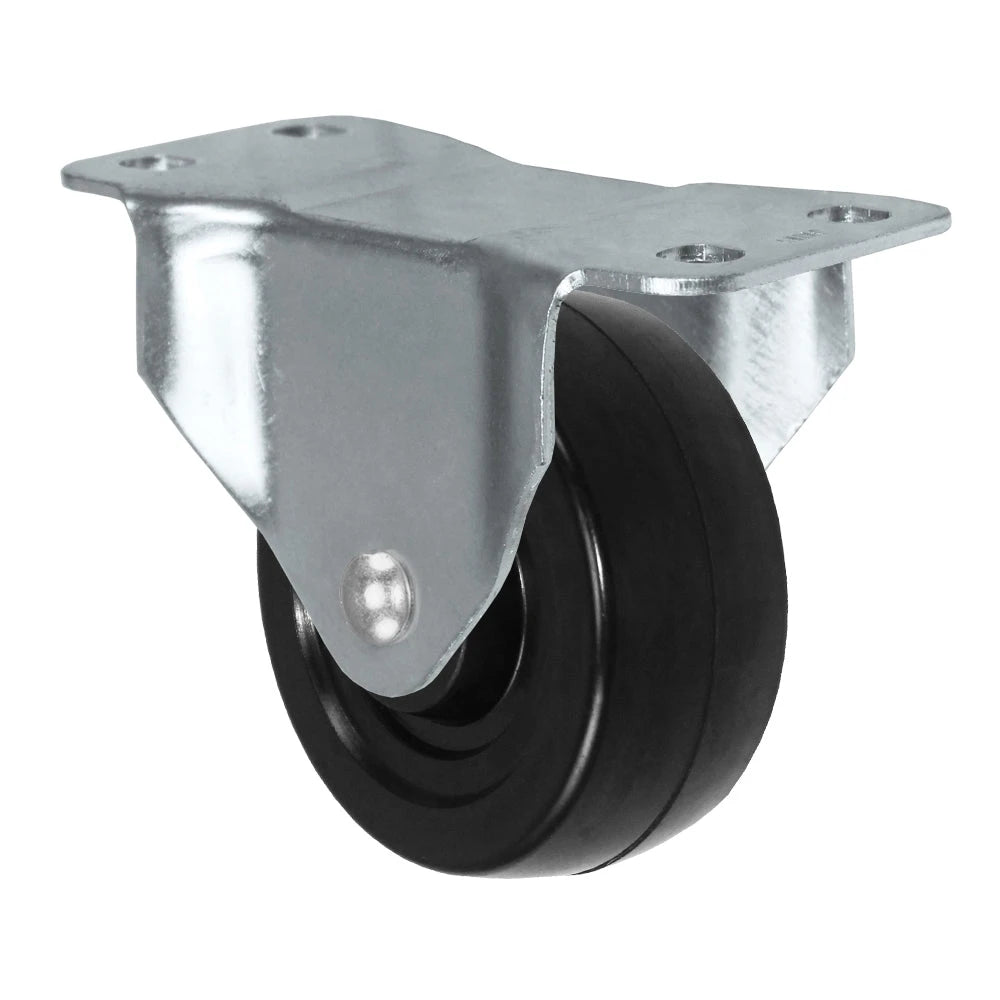

General Duty Casters are the most affordable type of caster made for light-duty applications. These Casters are typically used by large OEMs (Original Equipment Manufacturers) who typically make promotional retail and store displays as well as store fixtures that need to be on wheels in order to easily move around. General Duty Casters are also used on many other light-duty applications such as furniture, wooden furniture dollies, work benches, tables, and just about any application that does not exceed the Caster's load capacity.
These Casters are zinc plated to help prevent rust and corrosion when exposed to moisture, chemicals, or wash-down applications and these casters have formed stamped steel housing which are great quality features for a General Duty Caster making them stronger than a lot of the other types of similar products on the market.
| Caster Type: | Rigid |
| Wheel Diameter: | 4" |
| Tread Width: | 1-1/4" |
| Swivel Part#: | HQ1140R-PL1-HR |
| Wheel Bearing: | Nylon Sleeve |
| Load Capacity | 300 lbs |
| Overall Height: | 5" |
| Swivel Radius: | N/A - FIXED CASTERS |
| Overall Top Plate Size: | 3-1/8" x 6-1/4" |
| Mounting Bolt Hole Pattern: | 1-3/4" x 5" |
| Attaching Bolt Size: | 3/8" (Mounting Hardware Not Included) |
| Finish Type: |
Zinc Plated |
| Finish: | Bright Zinc Plating |
| Rigid: | One Piece Formed Stamped Forks for increased strength |
| Construction: | Heavy Duty Gauge Steel Formed for extra strength |
| Axle: | 3/8" Diameter axle with lock nut |
| Applications: | Dollies, Furniture, Display & Merchandise Racks, Mobile Fixtures, & more. |
| Wheel Type: | Hard Rubber Wheel |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
This caster is comparable to the following part numbers below in the caster industry:
This 4" x 1-1/4" Hard Rubber Rigid Caster – 300 lb is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 1-1/4" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 3-1/8" x 6-1/4" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$17.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 5" |
| Plate Size | 3-1/8" x 6-1/4" |
| Mount Style | Plate |
| Rig Type | Rigid |
| Load & Performance | |
| Wheel Capacity | 300 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
4" x 1-1/4" Polyurethane Swivel Caster – 300 lb | 3-1/8" x 4-1/8" Plate | CasterHQ
4" x 1-1/4" · 300 lbs
$19
View all 4′ x 1-1/4′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbsLighter duty | 4" × 1-1/4"Gray Rubber | Swivel with Total Lock Brake + brake | — | $24.00 | View → | |
| 260 lbsLighter duty | 4" × 1-1/4"Polyurethane | Swivel | 4-1/8" | $14.00 | View → | |
| 300 lbs | 4" × 1-1/4"Nylon | Rigid | 5" | $17.00 | Viewing | |
| 300 lbsSame capacity | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → | |
| 300 lbsSame capacity | 4" × 1-1/4"Polyurethane | Swivel | 5-1/8" | $19.00 | View → |
