PRODUCT CODE: HQ1120S-PL1-HR-SLB
General Duty Casters are the most affordable type of caster made for light-duty applications. These Casters are typically used by large OEMs (Original Equipment Manufacturers) who typically make promotional retail and store displays as well as store fixtures that need to be on wheels in order to easily move around. General Duty Casters are also used on many other light-duty applications such as furniture, wooden furniture dollies, work benches, tables, and just about any application that does not exceed the Caster's load capacity.
The main difference when comparing a General Duty Caster to a standard Institutional Duty caster is the raceway. General Duty Casters have a single ball raceway which is why we can offer these casters at such a great price. The other difference is the thickness of the caster plate and legs. General Duty Casters have slightly thinner gauge steel compared to institutional casters which is the other reason why these are such economically-priced casters.
These Casters are zinc plated to help prevent rust and corrosion when exposed to moisture, chemicals, or wash-down applications and these casters have formed stamped steel housing which are great quality features for a General Duty Caster making them stronger than a lot of the other types of similar products on the market.

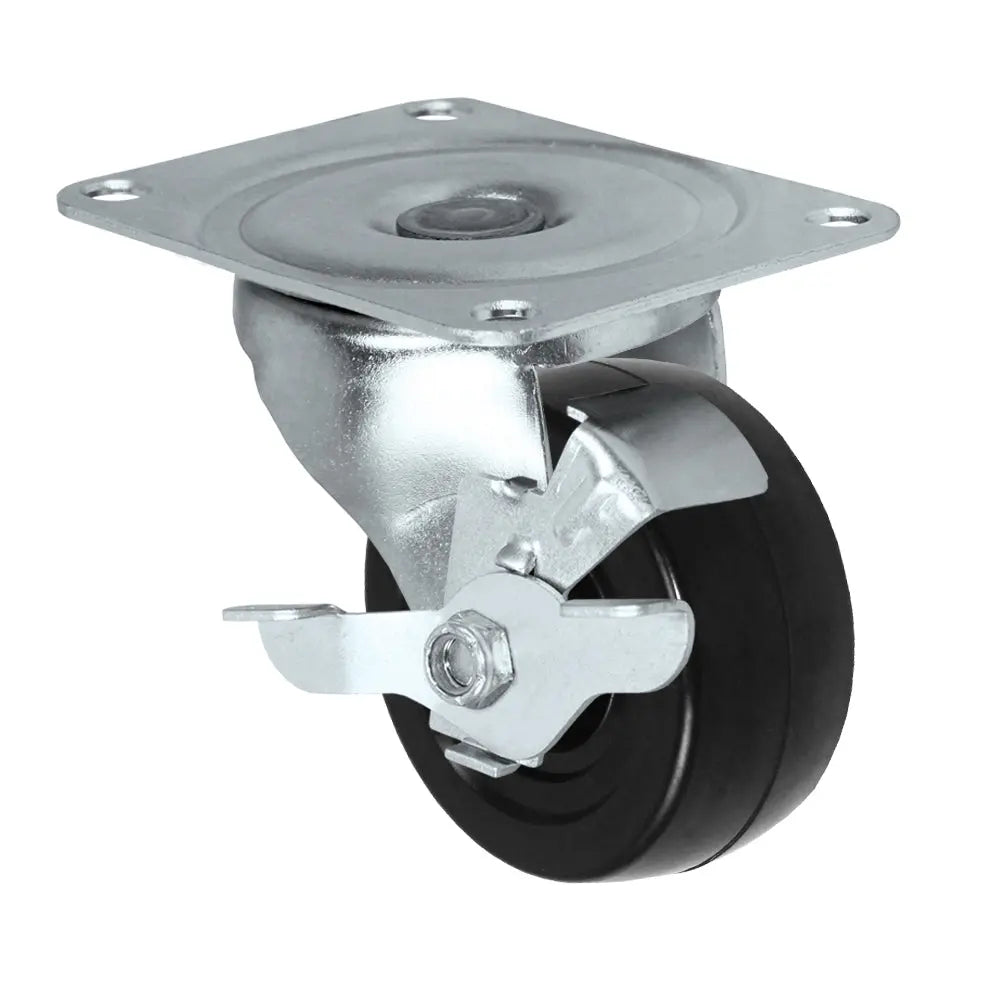

| Caster Type: | Swivel with Wheel Locking Brake |
| Wheel Diameter: | 2" |
| Tread Width: | 1" |
| Swivel Part#: | HQ1120S-PL1-HR |
| Wheel Bearing: | Nylon Sleeve |
| Load Capacity | 125 lbs |
| Overall Height: | 2-7/16" |
| Swivel Radius: | 1-3/4" (1/4" longer with brake) |

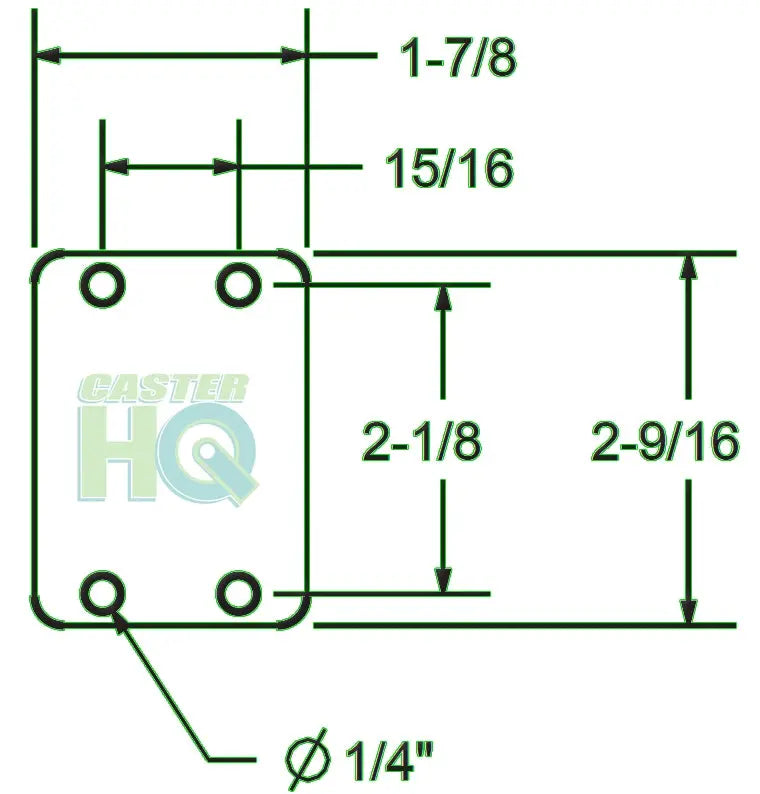

| Overall Top Plate Size: | 1-7/8" x 2-9/16" |
| Mounting Bolt Hole Pattern: | 15/16" x 2-1/8" |
| Attaching Bolt Size: | 1/4" (Mounting Hardware Not Included) |
| Finish Type: |
Zinc Plated |
| Caster Type: | Swivel with Wheel Locking Brake |
| Wheel Diameter: | 2" |
| Tread Width: | 1" |
| Swivel Part#: | HQ1120S-PL1-HR |
| Wheel Bearing: | Nylon Sleeve |
| Load Capacity | 125 lbs |
| Overall Height: | 2-7/16" |
| Swivel Radius: | 1-3/4" (1/4" longer with brake) |
| Overall Top Plate Size: | 1-7/8" x 2-9/16" |
| Mounting Bolt Hole Pattern: | 15/16" x 2-1/8" |
| Attaching Bolt Size: | 1/4" (Mounting Hardware Not Included) |
| Finish Type: | Zinc Plated |
| Finish: | Bright Zinc Plating |
| Swivel: | Single Ball Bearing Raceway |
| Construction: | Heavy Duty Gauge Steel Formed for extra strength |
| Axle: | 1/4" Diameter axle with lock nut |
| Applications: | Dollies, Furniture, Display & Merchandise Racks, Mobile Fixtures, & more. |
| Wheel Type: | Hard Rubber Wheel |
