Up to 350 lbs
Up to 7,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
Shock absorbing
Outdoor / rough terrain
View All Specialty Casters
Browse all specialty caster types
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.

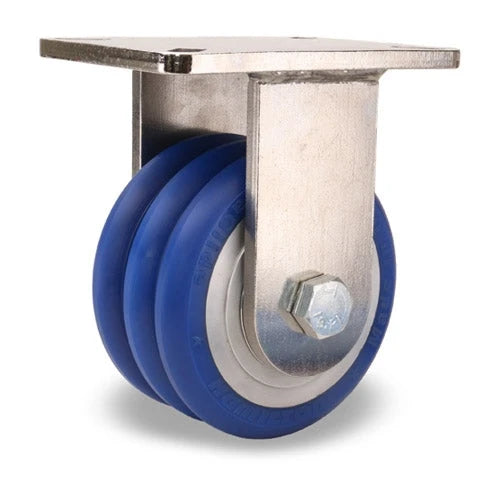

Meet the pinnacle of caster technology with the Hamilton Champion Rigid Caster. Each aspect of this caster is designed for unparalleled performance in industrial and commercial environments.
Featuring a robust 6" x 3" UltraGlide Triple Wheel with a resilient blue tread on an aluminum core, it guarantees smooth operation across diverse surfaces, enhancing your equipment's functionality.
The integration of 3/4" sealed precision ball bearings equips the caster with ease of movement, stability, and longevity, standing up to the rigors of demanding environments.
Its stainless steel build not only adds to the caster’s sleek appearance but also provides corrosion resistance, making it an ideal choice for cleanroom applications.
With Hamilton's engineering excellence, upgrade your equipment’s performance. Ideal for moving carts, trolleys, and heavy machinery, this caster is built to keep you efficiently on the move in warehouses, factories, and various professional settings.
Robust support designed for intensive industrial use.
Enhanced wheel size for superior maneuverability and stability.
Non-marking and durable tread for protective floor movement.
Low-maintenance, smooth rotation for operational efficiency.
Rust-resistant material ideal for challenging environments.
To navigate tight spaces with ease and enhanced durability.
Greater stability and even weight distribution for safe handling.
Keeps out debris for a long-lasting, reliable caster.
Simple set-up process with comprehensive guidelines.
Detailed, informative product insights for savvy online shopping.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Experience the industry standard with a remarkable 2200 lbs load capacity. Engineered for high performance, our stainless steel caster is designed for reliable, heavy-duty mobility in intense industrial environments.
Our innovative 6" x 3" wheel design delivers unparalleled ease of movement. The blue tread on an aluminum core enhances mobility and provides high abrasion resistance, ensuring longevity even on rough surfaces.
Equipped with 3/4" sealed precision ball bearings for smooth operation and superior durability, this swivel caster is protected from dust and debris, extending its life and reducing maintenance.
Designed to function in temperatures as low as -50°F, our caster ensures reliability in various climates. With an impact resistance rating of 200, it's built to survive the toughest environments.
Medium chemical and moisture resistance make this caster a versatile solution for many environments, maintaining high performance through spills and varying humidity levels.
This Hamilton 6" x 3" UltraGlide Rigid Stainless Caster – 2200 lb is rated to 2200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
For retractable leveling casters, separate rolling capacity from leveling / stationary support capacity when both are published. While rolling, divide moving load across the casters that are extended and load-sharing; keep continuous working load near or below ~75% of the rolling rating (~25% margin). When feet are down for machining or inspection, the machine weight may concentrate on the levelers — size those pads and stems to the stationary load with the same margin mindset, and do not assume the rolling rating automatically covers locked-down duty. Uneven shop floors can land load on three points; design as if one caster or foot may carry more than its “equal share.”
Most leveling / machine-mover casters see shop-floor temperatures where polyurethane or rubber treads are appropriate for floor protection. Bypass standard PU when the machine cell involves ovens, heat-treat adjacency, chip conveyors with hot swarf, or wash chemistry outside the tread’s published range — then evaluate phenolic, nylon, or other materials listed on the PDP. Leveling foot pads (when separate from the wheel) follow their own material and floor-load rules; do not equate wheel compound limits with pad limits. If the cell is ambient and floors are finished concrete, PU or similar resilient treads usually remain the first choice for roll-in positioning.
Retractable leveling units are often repositioned by hand, pallet jack, or occasional powered assist. If your process includes regular towing or AGV docking with side scrub, a conventional kingpin swivel can loosen or brinell for the same reasons as on carts: thrust loads the central pin and race faces repeatedly. Prefer kingpinless or otherwise side-load-capable swivel sections when powered lateral loads are planned; many leveling casters are optimized for positioning and lock-down rather than continuous tugger duty. Match the swivel construction to how the machine actually moves between cells, and use the leveling function for stationary accuracy — not as a substitute for a tow-rated raceway.
$754.00
| Identification | |
|---|---|
| Part Number / SKU | R-CHS-63SWC85 |
| Core | |
| Load Capacity | 2200 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Rig Type | Rigid |
| Brake | No Brake |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Construction | |
| Frame / Finish | Stainless Steel |
| Compliance | |
| Buy American | Yes |
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2000 lbsLighter duty | 6" × 3"Polyurethane | Swivel | 7-1/2" | $95.00 | View → | |
| 2000 lbsLighter duty | 6" × 3"Phenolic | — | — | $36.00 | View → | |
| 2200 lbs | 6" × 3"Polyurethane | Rigid | — | $754.00 | Viewing | |
| 2200 lbsSame capacity | 6" × 3"Polyurethane | — | — | $150.00 | View → | |
| 2200 lbsSame capacity | 6" × 3"Polyurethane | Swivel | 8" | $363.00 | View → |
