Hamilton Aerospace 5" Rigid Spring-Loaded Caster | R-AEZFHS

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
5" x 2"
Capacity
1325 lbs
Overall Height
8"
Plate Size
4-1/2" x 6-1/2"
BHP
2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Bolt
1/2"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

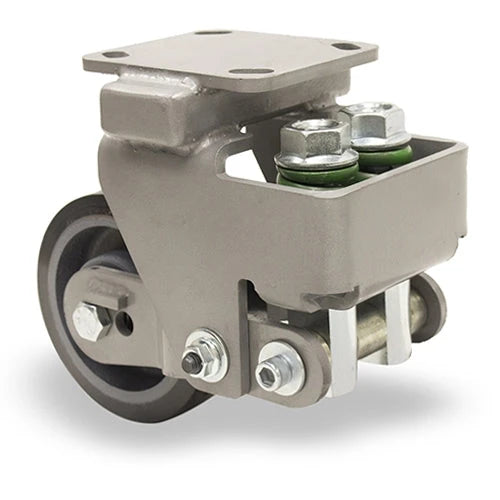

R-AEZFHS-5DB70-1 Hamilton Aerospace Spring Loaded Heavy Service Rigid Caster

5" x 2" Duralast XC Polyurethane (70D) on Cast Iron Wheel | 1/2" Sealed Precision Ball Bearings

Designed for Premium Aerospace Operations

Introducing the R-AEZFHS-5DB70-1 Hamilton Aerospace Rigid Caster: a perfect blend of functionality and durability. This advanced caster boasts a 5" x 2" Duralast XC Polyurethane (70D) on a robust cast iron wheel, ensuring longevity and optimal performance. With 1/2" sealed precision ball bearings, it guarantees seamless operations tailored for aerospace industry needs.

Hamilton Aerospace: The Best Choice for Aerospace Casters

Opt for Hamilton's spring-loaded heavy service casters for unbeatable reliability. Made with premium Duralast XC Polyurethane, these casters deliver unmatched durability and weight management, ensuring your aerospace tasks are executed without a hitch. Trust Hamilton for consistent high-quality and performance.

Expert Assistance for Hamilton Aerospace Casters

Need assistance finding the best caster for your aerospace needs? Hamilton's experienced team is available weekdays from 8 am - 5 pm. Benefit from our expertise and ensure you choose the perfect product every time.

Key Features

Top 10 Features of R-AEZFHS-5DB70-1 Hamilton Aerospace Rigid Caster

  • Durable Design: Engineered for premium aerospace operations.
  • 5" x 2" Duralast XC Polyurethane Wheel: Ensures optimal performance & longevity.
  • Cast Iron Base: Provides robust support and enhanced weight management.
  • 1/2" Sealed Precision Ball Bearings: Guarantees seamless operations tailored for aerospace tasks.
  • Spring Loaded Mechanism: Ensures efficient maneuverability and shock absorption.
  • Heavy Service Capability: Designed to handle rigorous aerospace applications with ease.
  • Reliable Brand: Manufactured by Hamilton Aerospace, a leader in aerospace caster technology.
  • Optimized for Load Management: Ensures safe and efficient handling of aerospace equipment.
  • Low Maintenance: Crafted to reduce maintenance frequency without compromising performance.
  • User-Friendly Installation: Simple setup process for swift deployment in aerospace settings.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Extended Information on the R-AEZFHS-5DB70-1 Hamilton Aerospace Rigid Caster

About the Product

The R-AEZFHS-5DB70-1 Hamilton Aerospace Rigid Caster is a testament to Hamilton's commitment to quality, precision, and durability. Specially crafted for the rigorous demands of the aerospace industry, this caster combines both form and function to deliver unparalleled performance.

Materials & Build Quality

Constructed with a robust 5" x 2" Duralast XC Polyurethane (70D) wheel mounted on durable cast iron, it promises long-lasting resilience against wear and tear. The integration of 1/2" sealed precision ball bearings ensures smooth and efficient operations, reducing friction and increasing the lifespan of the caster.

Tailored for Aerospace Applications

Designed with aerospace tasks in mind, this caster offers optimal load management and reduced maintenance. Its precision-engineered build ensures that it can handle the unique challenges posed by aerospace environments, from heavy machinery to sensitive equipment.

Hamilton's Legacy of Excellence

Trusting in Hamilton means investing in a legacy of excellence. With a track record of producing top-tier products for various industries, our aerospace range is no exception. When you choose Hamilton, you're opting for reliability, innovation, and expert-backed performance.

Dedicated Expert Support

To further aid our customers, Hamilton's team of experts is always ready to guide and assist. Whether you're uncertain about product specifications or require advice for your aerospace setup, our specialists are available weekdays from 8 am - 5 pm. Your success is our priority.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton R-AEZFHS-5DB70-1 5" x 2" Poly Rigid Spring Loaded Caster – 1325 lb is rated to 1325 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

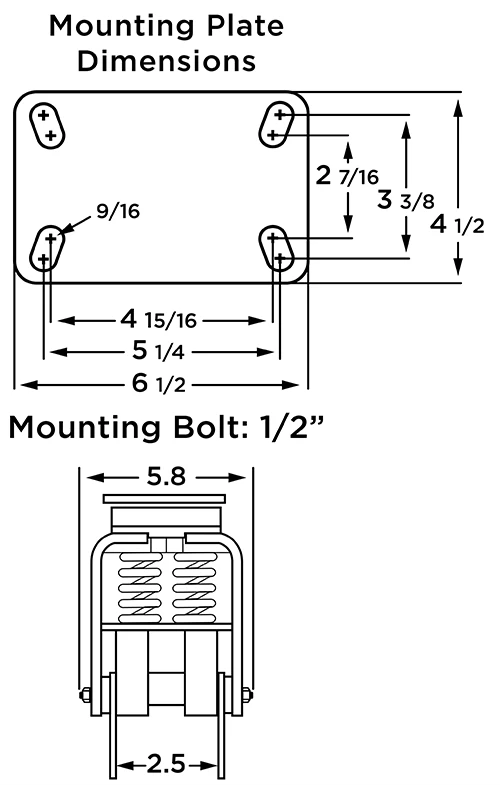

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 8". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Hamilton R-AEZFHS-5DB70-1 5
Hamilton R-AEZFHS-5DB70-1 5" x 2" Poly Rigid Spring Loaded Caster – 1325 lb | CasterHQ

$1,000.00

Technical Specifications

Specifications

Identification
Part Number / SKUR-AEZFHS-5DB70-1
Replacement Wheel Part NoW-520-DB70-1/2
Core
Load Capacity1325 lbs
Wheel Diameter5"
Wheel Width2"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).8"
Rig TypeRigid
BrakeNo Brake
Mounting
Mount StylePlate
Plate Size4-1/2" x 6-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialPolyurethane
Wheel Core MaterialCast Iron
Wheel ColorBlack Poly on Gray Center
Bearing TypePrecision Sealed Ball Bearing
Construction
Frame / FinishPlatinum Powder
Temperature Range-5°F to 160°F
Unit Weight18 lbs
Compliance
Buy AmericanYes
Reference Dimensions
8" OVERALL HEIGHT 5" x 2" WHEEL DIA x W 4-1/2" x 6-1/2" PLATE
Overall Height8"
Wheel5" x 2"
Top Plate4-1/2" x 6-1/2"
Bolt Pattern2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Wheel MaterialPolyurethane
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 1325 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size4-1/2" x 6-1/2"
Bolt Pattern2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Rig TypeRigid
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
