Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

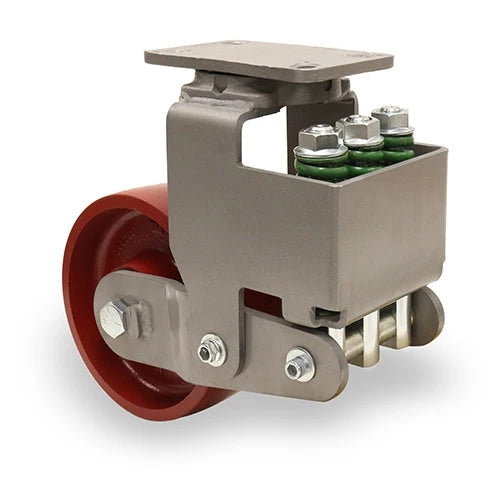

Discover the Hamilton Aerospace S-AEZFFM-13MB Spring Loaded Spinfinity (FM) Swivel Caster. Designed for demanding aerospace applications, this swivel caster boasts a durable 10" x 3" metal wheel and efficient 3/4" sealed precision ball bearings. It is the ideal choice for professionals seeking reliable, high-performance casters for aerospace applications.
The S-AEZFFM series offers a balance of strength and smooth operation. Choose the trusted name in aerospace-grade casters – Hamilton, for unparalleled quality and longevity in your heavy-duty applications.
Selecting the S-AEZFFM-13MB for your setup? Our team of Caster Specialists is available to assist. Reach out for the best caster solutions tailored for your aerospace needs. Invest in Hamilton – ensuring durability, efficiency, and excellence.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Hamilton Aerospace S-AEZFFM-13MB is not just any swivel caster; it's an epitome of quality and durability. Engineered specifically for heavy-duty aerospace applications, this caster promises unmatched performance.
With its 10" x 3" metal wheel, it provides a sturdy base, ensuring stability. The integration of 3/4" sealed precision ball bearings guarantees smooth movement, reducing wear and tear. Hamilton's unique Spring Loaded Spinfinity technology ensures that it can easily swivel, making maneuverability in tight spaces a breeze.
Designed for both indoor and outdoor aerospace environments, its robust construction can handle varied terrains. Whether you're moving heavy aerospace equipment or ensuring the efficient functioning of an aircraft system, this caster won't let you down.
Hamilton is not just a brand; it's a promise of quality. With decades in the industry, we ensure that every product, including the S-AEZFFM-13MB, meets the highest standards. Our dedicated team of specialists is always ready to provide expert guidance, making sure you get the best solution tailored to your aerospace needs.
This Hamilton S-AEZFFM-13MB 10" x 3" Metal Swivel Spring Loaded Caster is rated to 2600 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

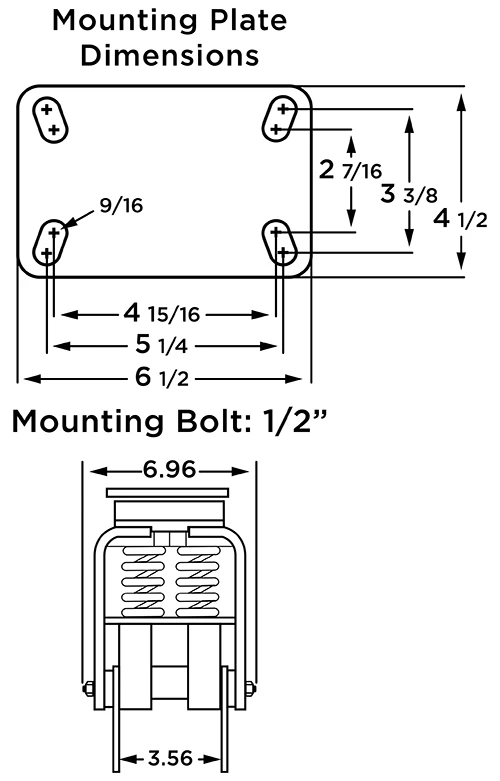

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -40°F to 320°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 14". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,593.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFFM-13MB |
| Replacement Wheel Part No | W-1030-MB-3/4 |
| Core | |
| Load Capacity | 2600 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 14" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 4-9/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Cast Iron |
| Wheel Core Material | Cast Iron |
| Wheel Color | Crimson Red |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -40°F to 320°F |
| Unit Weight | 45 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 10" × 3"Cast Iron | Swivel | 13-1/2" | $260.00 | View → | |
| 2500 lbsLighter duty | 10" × 3"Nylon | Swivel | 11-1/2" | $165.00 | View → | |
| 2600 lbs | 10" × 3"Cast Iron | Swivel | 14" | $1,593.00 | Viewing | |
| 2900 lbsHeavier duty | 10" × 3"Phenolic | Rigid | 7-1/2" | $100.00 | View → | |
| 2900 lbsHeavier duty | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → |
