Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

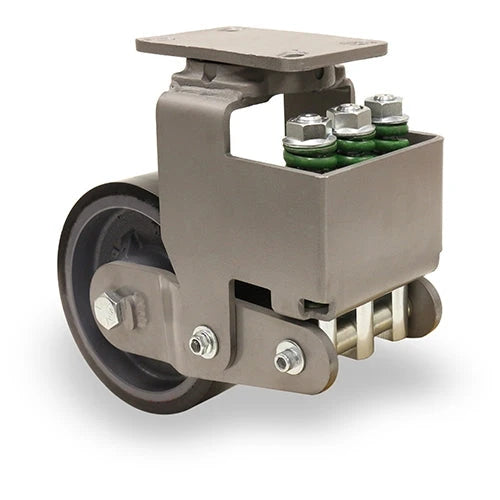

Discover the best in aerospace with the Hamilton Aerospace S-AEZFFM-83DB70 Spring Loaded Forge Master Swivel Caster. Crafted with top-notch 8" x 3" Duralast XC Polyurethane (70D) on a Cast Iron Wheel, this caster offers unparalleled resilience, perfect for heavy-duty aerospace applications. Coupled with its 3/4" sealed precision ball bearings, expect a smooth performance every time.
Hamilton Aerospace stands out in delivering state-of-the-art swivel casters, such as the S-AEZFFM series. Prioritize longevity, efficiency, and high performance for your aerospace projects. Trust in Hamilton – your reliable partner for aerospace-grade swivel casters.
Evaluating the S-AEZFFM-83DB70 for your aerospace requirements? Our team of Caster Experts is ready to assist. Connect with us on weekdays, 8 am - 5 pm, for tailor-made caster solutions fitting your specifications.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Hamilton Aerospace S-AEZFFM-83DB70 Swivel Caster is meticulously designed for aerospace applications, ensuring that it meets the strictest industry standards. Its heavy-duty construction promises durability under rigorous aerospace conditions.
At the heart of its top-tier performance is the 8" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel. This composition offers exceptional resistance to wear, maximizing the caster's lifespan while ensuring smooth operations.
The 3/4" sealed precision ball bearings are a testament to Hamilton's commitment to excellence. These bearings guarantee seamless mobility, reducing friction and wear, making maneuvering even heavy aerospace equipment effortless.
Choosing the S-AEZFFM series is more than just a purchase; it's an investment in Hamilton Aerospace's longstanding legacy. Recognized globally for manufacturing prowess, Hamilton ensures each caster is a blend of innovation, durability, and performance.
Whether you're integrating the S-AEZFFM-83DB70 into an existing setup or building a new one, it promises seamless compatibility. Plus, Hamilton's team of Caster Experts is ever-ready to assist, ensuring that you get the most out of your swivel caster.
This Hamilton S-AEZFFM-83DB70 8" x 3" Duralast XC Swivel Spring Loaded Caster is rated to 2775 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

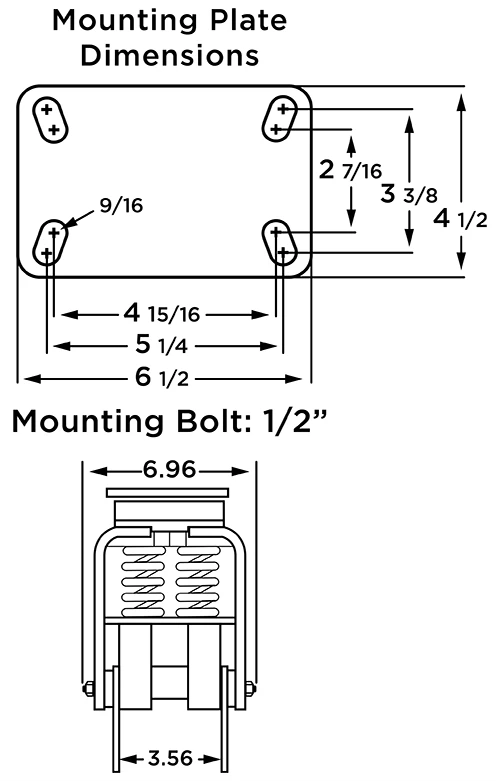

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,599.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFFM-83DB70 |
| Replacement Wheel Part No | W-8030-DB70-3/4 |
| Core | |
| Load Capacity | 2775 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 13" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 4-9/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Wheel Color | Black Poly on Gray Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -5°F to 160°F |
| Unit Weight | 46 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 8" × 3"Polyurethane | Rigid | 10-1/8" | $79.00 | View → | |
| 2500 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 10-1/8" | $121.00 | View → | |
| 2775 lbs | 8" × 3"Polyurethane | Swivel | 13" | $1,599.00 | Viewing | |
| 2800 lbsHeavier duty | 8" × 3"Cast Iron | — | 10-1/2" | $297.00 | View → | |
| 3500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/2" | $353.00 | View → |
