Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

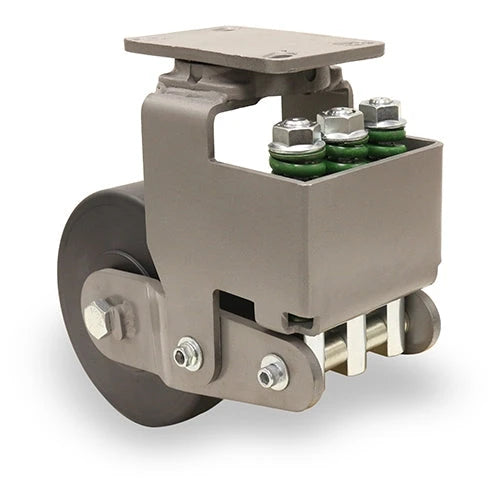

Presenting the optimized S-AEZFFM-83NYB Hamilton Aerospace Spring Loaded Forge Master Swivel Caster – engineered for industry professionals seeking durability and performance. Equipped with a durable 8" x 3" Nylast Wheel and a reliable 3/4" sealed precision ball bearing, this caster promises smooth operations even in challenging aerospace environments.
Elevate your aerospace projects with Hamilton's S-AEZFFM series, meticulously designed for rigorous applications. Enjoy reduced maintenance and increased efficiency with our leading aerospace swivel caster.
Exploring the S-AEZFFM-83NYB for your aerospace needs? Benefit from Hamilton's deep-rooted expertise. Contact us on weekdays between 8 am - 5 pm for comprehensive caster solutions. Quality and performance, always guaranteed.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Dive deeper into the intricacies and benefits of the S-AEZFFM-83NYB Hamilton Aerospace Spring Loaded Forge Master Swivel Caster. Engineered for perfection, this caster combines cutting-edge technology with Hamilton's legacy of excellence.
For years, Hamilton has been a name synonymous with quality in the aerospace industry. The S-AEZFFM-83NYB Forge Master Swivel Caster is a testament to this legacy. Every component, from the Nylast Wheel to the sealed bearings, echoes the brand's dedication to providing only the best for its customers.
This caster is perfect for aerospace setups where heavy loads, precision, and durability are paramount. From transporting equipment within large hangers to moving aircraft parts, the S-AEZFFM-83NYB stands out as the optimal choice for professionals.
This Hamilton S-AEZFFM-83NYB 8" x 3" Nylast Swivel Spring Loaded Caster – 2775 lb is rated to 2775 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 3" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

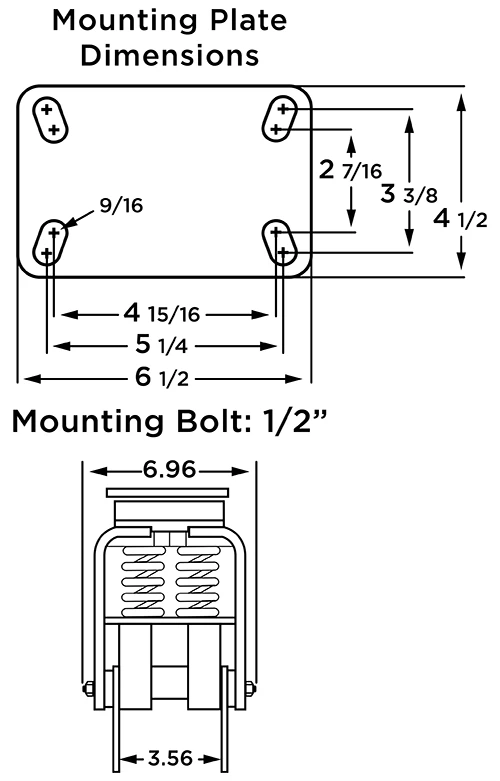

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 220°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 13". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,924.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFFM-83NYB |
| Replacement Wheel Part No | W-8030-NYB-3/4 |
| Core | |
| Load Capacity | 2775 lbs |
| Wheel Diameter | 8" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 13" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 4-9/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel Core Material | Nylon |
| Wheel Color | Charcoal Grey |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -30°F to 220°F |
| Unit Weight | 36 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 8" × 3"Polyurethane | Rigid | 10-1/8" | $79.00 | View → | |
| 2500 lbsLighter duty | 8" × 3"Polyurethane | Swivel | 10-1/8" | $121.00 | View → | |
| 2775 lbs | 8" × 3"Nylon | Swivel | 13" | $1,924.00 | Viewing | |
| 2800 lbsHeavier duty | 8" × 3"Cast Iron | — | 10-1/2" | $297.00 | View → | |
| 3500 lbsHeavier duty | 8" × 3"Polyurethane | Rigid | 10-1/2" | $353.00 | View → |
