Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

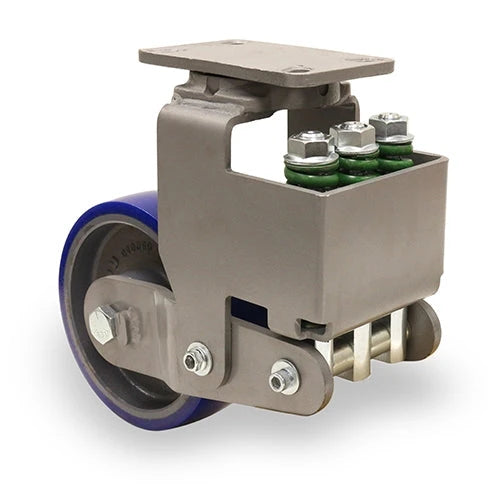

Discover the superior quality of the S-AEZFFM-13SPB Hamilton Aerospace Spring Loaded Spinfinity Swivel Caster. Perfect for high-demand aerospace environments, this swivel caster boasts a 10" x 3" Ergo-Glide Polyurethane (85A) on Cast Iron Wheel. The inclusion of 3/4" sealed precision ball bearings guarantees smooth and efficient movement every time.
Elevate your aerospace operations with the unmatched durability and performance of Hamilton's Spinfinity series. This spring-loaded swivel caster is crafted to reduce maintenance and improve mobility in any aerospace application. Trust Hamilton for innovative, aerospace-grade casters.
Thinking about integrating the S-AEZFFM-13SPB into your aerospace system? Hamilton's experienced team is here to help. Reach out during our business hours for personalized caster recommendations to suit your aerospace needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The S-AEZFFM-13SPB Hamilton Aerospace Spinfinity Swivel Caster is the pinnacle of caster technology. Meticulously designed for the challenging needs of the aerospace industry, this caster is a blend of durability, precision, and innovation.
Boasting a 10" x 3" Ergo-Glide Polyurethane (85A) on a Cast Iron Wheel, it promises wear resistance and longevity. The advanced Ergo-Glide Polyurethane is specially formulated to endure heavy loads while ensuring smooth and noise-free movement across surfaces.
The caster's performance is further enhanced by the 3/4" sealed precision ball bearings. These bearings are meticulously designed to handle high-pressure operations, ensuring a frictionless and efficient glide even under the most intense conditions.
Spinfinity represents Hamilton's commitment to continuous innovation. This unique design reduces maintenance and ensures an extended product lifespan, making the S-AEZFFM-13SPB a wise investment for any aerospace application.
With a rich history of crafting industry-leading casters, Hamilton is the go-to brand for professionals seeking reliability and performance. This specific caster model exemplifies the brand's dedication to quality and innovation.
When it comes to aerospace mobility solutions, the S-AEZFFM-13SPB Hamilton Aerospace Spinfinity Swivel Caster stands out as a testament to superior engineering and design. Choose Hamilton, choose excellence.
This Hamilton S-AEZFFM-13SPB 10" x 3" Ergo-Glide Swivel Spring Loaded Caster – 2400 lb is rated to 2400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

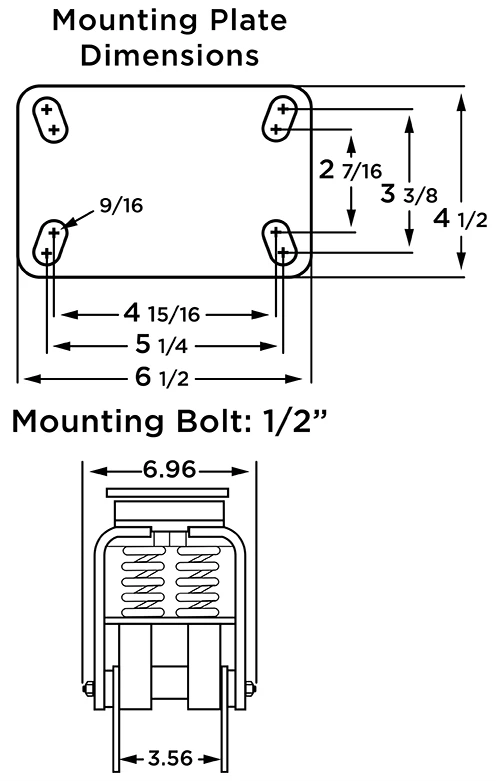

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 14". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,720.00
| Identification | |
|---|---|
| Part Number / SKU | S-AEZFFM-13SPB |
| Replacement Wheel Part No | W-1030-SPB-3/4 |
| Core | |
| Load Capacity | 2400 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 14" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 4-9/16" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Wheel Color | Blue Poly on Gray Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -5°F to 160°F |
| Unit Weight | 53 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1040 lbsLighter duty | 10" × 3"Cast Iron | Rigid | 12-1/2" | $439.00 | View → | |
| 1040 lbsLighter duty | 10" × 3"Cast Iron | Swivel | 12-1/2" | $842.00 | View → | |
| 2400 lbs | 10" × 3"Polyurethane | Swivel | 14" | $1,720.00 | Viewing | |
| 2500 lbsHeavier duty | 10" × 3"Polyurethane | Rigid | 11-1/2" | $124.00 | View → | |
| 2500 lbsHeavier duty | 10" × 3"Phenolic | Rigid | 11-1/2" | $153.00 | View → |
