Hamilton 8" Aerospace Swivel Caster | Forge Master Series

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
8" x 3"
Capacity
2775 lbs
Overall Height
13"
Plate Size
4-1/2" x 6-1/2"
BHP
2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Bolt
1/2"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

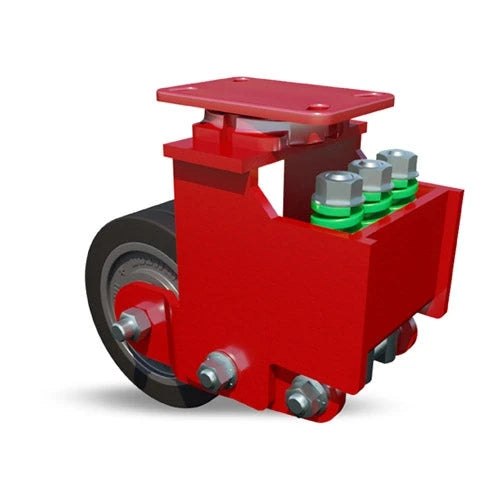

Hamilton Aerospace Spring Loaded Forge Master Swivel Caster - S-AEZFFM-83SWF70D

8" x 3" UltraGlide XC Triple Wheel Black Flat (70D) Tread on Aluminum Core | 3/4" Sealed Precision Ball Bearings

Leading Edge Aerospace Swivel Caster - Forge Master Series

The S-AEZFFM-83SWF70D Hamilton Aerospace Swivel Caster is a pinnacle of innovation, precision, and durability. Boasting a robust 8" x 3" UltraGlide XC Triple Wheel with Black Flat (70D) Tread on an Aluminum Core, this spring-loaded caster ensures unmatched performance. Its 3/4" sealed precision ball bearings facilitate effortless movement and extended lifespan, making it an ideal fit for aerospace and industrial applications seeking top-grade mobility solutions.

Exceptional Durability with Hamilton's Forge Master Series

Enhance your aerospace equipment's maneuverability with Hamilton's Forge Master Series. Recognized for high-strength and longevity, our spring-loaded swivel casters outperform competitors, setting new industry standards. Trust in Hamilton's commitment to quality, innovation, and excellence.

Need Expert Advice on Aerospace Casters? Hamilton is Here!

Considering integrating the S-AEZFFM-83SWF70D into your aerospace or industrial setup? Our team of Caster Specialists is on standby. Reach out on weekdays between 8 am - 5 pm for comprehensive caster guidance tailored to your operational needs.

Key Features

Top 10 Features of Hamilton Aerospace S-AEZFFM-83SWF70D Swivel Caster

  • 1. UltraGlide XC Wheel: Robust 8" x 3" dimension ensuring unmatched performance.
  • 2. Forge Master Series: Part of Hamilton's premium caster lineup.
  • 3. Sealed Precision Ball Bearings: 3/4" size for smooth and effortless movement.
  • 4. Black Flat (70D) Tread: On an Aluminum Core for resilience and longevity.
  • 5. Spring-Loaded Mechanism: Enhances maneuverability in aerospace applications.
  • 6. High-Demand Performance: Suitable for the most demanding aerospace conditions.
  • 7. Industry-Leading Durability: Built for extended lifespan and minimal maintenance.
  • 8. Hamilton Quality Assurance: Representing innovation and excellence in caster design.
  • 9. Aerospace-Grade Material: Ensuring reliability in every operation.
  • 10. Expert Support: Guidance from Hamilton's dedicated team of caster specialists.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Extended Information on Hamilton Aerospace S-AEZFFM-83SWF70D Swivel Caster

Introducing the Forge Master Series Excellence

Hamilton's Forge Master Series is renowned in the aerospace sector for delivering premium quality and advanced functionality. The S-AEZFFM-83SWF70D is a testament to Hamilton's commitment to pushing the boundaries of caster technology.

UltraGlide XC Wheel Technology

The centerpiece of this caster is the 8" x 3" UltraGlide XC Triple Wheel. Engineered with a unique Black Flat (70D) Tread on an Aluminum Core, it guarantees reduced wear and superior weight distribution, making movement seamless even in demanding aerospace environments.

Precision, Sealed, and Built to Last

Fitted with 3/4" sealed precision ball bearings, this caster is designed for longevity. The sealed bearings not only provide a smooth rotation but also protect the internal components from debris and contaminants, ensuring reduced maintenance and longer service life.

Why Aerospace Professionals Choose Hamilton

In an industry where precision and reliability are paramount, the S-AEZFFM-83SWF70D stands out. Its spring-loaded mechanism offers enhanced shock absorption, making it the preferred choice for transporting sensitive aerospace equipment and components.

Trust in Hamilton - A Legacy of Innovation

With decades of experience and a relentless pursuit of excellence, Hamilton continues to set industry standards. Whether you're an aerospace professional or need high-grade mobility solutions, our dedicated team of experts is here to assist. Choose Hamilton, choose excellence.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton S-AEZFFM-83SWF70D 8" x 3" UltraGlide XC Swivel Spring Loaded Caster is rated to 2775 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

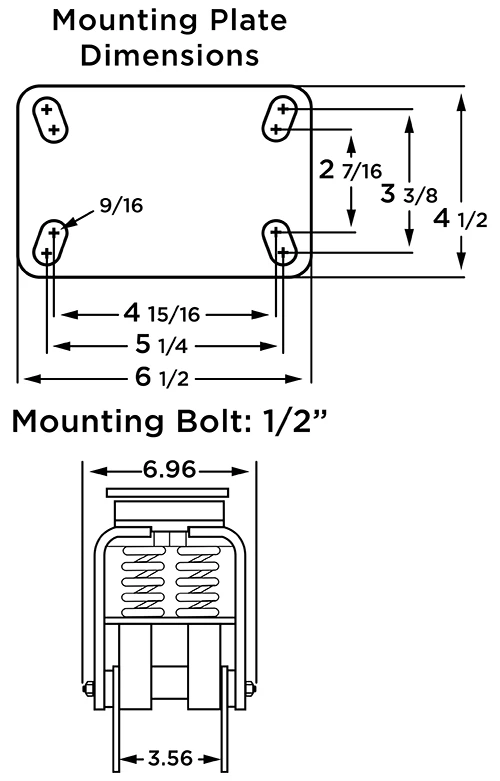

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 4-1/2" x 6-1/2" plate and a 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -50°F to 200°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 13". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

For retractable leveling casters, separate rolling capacity from leveling / stationary support capacity when both are published. While rolling, divide moving load across the casters that are extended and load-sharing; keep continuous working load near or below ~75% of the rolling rating (~25% margin). When feet are down for machining or inspection, the machine weight may concentrate on the levelers — size those pads and stems to the stationary load with the same margin mindset, and do not assume the rolling rating automatically covers locked-down duty. Uneven shop floors can land load on three points; design as if one caster or foot may carry more than its “equal share.”

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Most leveling / machine-mover casters see shop-floor temperatures where polyurethane or rubber treads are appropriate for floor protection. Bypass standard PU when the machine cell involves ovens, heat-treat adjacency, chip conveyors with hot swarf, or wash chemistry outside the tread’s published range — then evaluate phenolic, nylon, or other materials listed on the PDP. Leveling foot pads (when separate from the wheel) follow their own material and floor-load rules; do not equate wheel compound limits with pad limits. If the cell is ambient and floors are finished concrete, PU or similar resilient treads usually remain the first choice for roll-in positioning.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

Retractable leveling units are often repositioned by hand, pallet jack, or occasional powered assist. If your process includes regular towing or AGV docking with side scrub, a conventional kingpin swivel can loosen or brinell for the same reasons as on carts: thrust loads the central pin and race faces repeatedly. Prefer kingpinless or otherwise side-load-capable swivel sections when powered lateral loads are planned; many leveling casters are optimized for positioning and lock-down rather than continuous tugger duty. Match the swivel construction to how the machine actually moves between cells, and use the leveling function for stationary accuracy — not as a substitute for a tow-rated raceway.

Hamilton S-AEZFFM-83SWF70D 8
Hamilton S-AEZFFM-83SWF70D 8" x 3" UltraGlide XC Swivel Spring Loaded Caster | CasterHQ

$2,098.00

Technical Specifications

Specifications

Identification
Part Number / SKUS-AEZFFM-83SWF70D
Replacement Wheel Part NoW-830-SWF70D-3/4
Core
Load Capacity2775 lbs
Wheel Diameter8"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).13"
Rig TypeSwivel
BrakeNo Brake
Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle.4-9/16"
Mounting
Mount StylePlate
Plate Size4-1/2" x 6-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialPolyurethane
Wheel Core MaterialAluminum
Wheel ColorBlack Tread on Alum
Bearing TypePrecision Sealed Ball Bearing
Construction
Frame / FinishPlatinum Powder
Temperature Range-50°F to 200°F
Unit Weight38 lbs
Compliance
Buy AmericanYes
Reference Dimensions
13" OVERALL HEIGHT 8" x 3" WHEEL DIA x W 4-1/2" x 6-1/2" PLATE
Overall Height13"
Wheel8" x 3"
Top Plate4-1/2" x 6-1/2"
Bolt Pattern2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Wheel MaterialPolyurethane
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 2775 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size4-1/2" x 6-1/2"
Bolt Pattern2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"
Rig TypeSwivel
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
