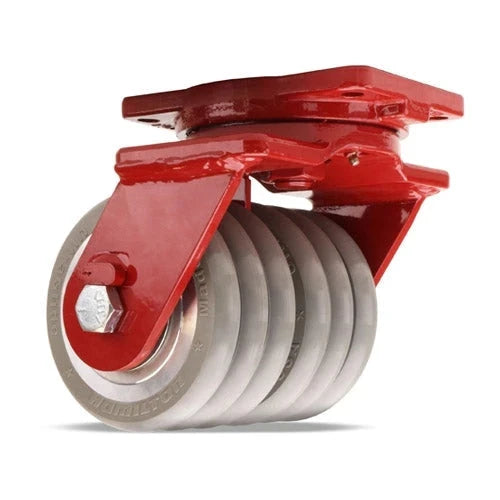

Hamilton 6" Dual-Wheel Swivel Caster | Heavy Duty UltraGlide

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
6" x 3"
Capacity
4700 lbs
Overall Height
7-1/2"
Mount
Plate
Swivel Radius
4-1/2"
Spec-driven pricing Quoted by configuration — lead time & freight included
In Stock USA · Ships 3-5 Days

This is a configurable, spec-driven industrial caster. To preserve accurate engineering and freight pricing, units are quoted by application. Request a formal quote below — our team replies with pricing, lead time, and any spec confirmations within one business day.

Or call (844) 439-4335
PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton 6" x 3" UltraGlide Dual Wheel Swivel Caster – 3/4" Ball Bearing · Extra Heavy Duty Dual Wheel Series · 95A Grey Tread is rated to 4700 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What floors and applications is it best for?+

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 7-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

For retractable leveling casters, separate rolling capacity from leveling / stationary support capacity when both are published. While rolling, divide moving load across the casters that are extended and load-sharing; keep continuous working load near or below ~75% of the rolling rating (~25% margin). When feet are down for machining or inspection, the machine weight may concentrate on the levelers — size those pads and stems to the stationary load with the same margin mindset, and do not assume the rolling rating automatically covers locked-down duty. Uneven shop floors can land load on three points; design as if one caster or foot may carry more than its “equal share.”

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Most leveling / machine-mover casters see shop-floor temperatures where polyurethane or rubber treads are appropriate for floor protection. Bypass standard PU when the machine cell involves ovens, heat-treat adjacency, chip conveyors with hot swarf, or wash chemistry outside the tread’s published range — then evaluate phenolic, nylon, or other materials listed on the PDP. Leveling foot pads (when separate from the wheel) follow their own material and floor-load rules; do not equate wheel compound limits with pad limits. If the cell is ambient and floors are finished concrete, PU or similar resilient treads usually remain the first choice for roll-in positioning.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

Retractable leveling units are often repositioned by hand, pallet jack, or occasional powered assist. If your process includes regular towing or AGV docking with side scrub, a conventional kingpin swivel can loosen or brinell for the same reasons as on carts: thrust loads the central pin and race faces repeatedly. Prefer kingpinless or otherwise side-load-capable swivel sections when powered lateral loads are planned; many leveling casters are optimized for positioning and lock-down rather than continuous tugger duty. Match the swivel construction to how the machine actually moves between cells, and use the leveling function for stationary accuracy — not as a substitute for a tow-rated raceway.

Technical Specifications

Specifications

Core
Load Capacity4700 lbs
Wheel Diameter6"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).7-1/2"
Rig TypeSwivel
BrakeNo Brake
Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned.4-1/2"
Number of Wheels2 (dual wheel)
Mounting
Mount StylePlate
Wheel
Wheel MaterialPolyurethane
Wheel Core MaterialAluminum
Compliance
Buy AmericanYes
Reference Dimensions
7-1/2" OVERALL HEIGHT 6" x 3" WHEEL DIA x W
Overall Height7-1/2"
Wheel6" x 3"
Wheel MaterialPolyurethane
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 4700 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
