Hamilton 8" Dual-Wheel Swivel Caster | 6,100 lb Capacity

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
8" x 3"
Capacity
6100 lbs
Overall Height
10-1/2"
Plate Size
6-1/8" x 7-1/2"
BHP
4-1/8" x 6-1/8"
Bolt
1/2"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Download CAD
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

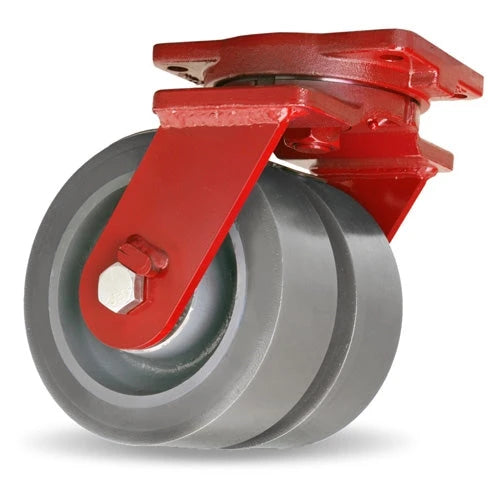

Hamilton Extra Heavy Duty Dual-Wheel Swivel Caster with 8" x 3" DuraGlide Wheel 1" thick Polyurethane (95A) Wheels with 3/4" Sealed Precision Ball Bearings


The Hamilton Caster Part#: S-EHD2-83GB95 is a robust and reliable industrial caster designed to tackle even the toughest of challenges. Engineered with precision and crafted with durability in mind, this caster is an essential component for a wide range of heavy-duty applications. Whether you're working in a warehouse, manufacturing facility, or any other demanding environment, this caster is built to withstand the test of time and deliver exceptional performance.

Featuring a sturdy construction, the Hamilton Caster Part#: S-EHD2-83GB95 is built to handle heavy loads with ease. Its high load capacity of 6,100 lbs ensures that you can transport even the bulkiest items with confidence. This caster provides unparalleled strength and stability, making it ideal for applications that require moving large machinery, equipment, or industrial materials.

Durability is at the core of this caster's design. It boasts a heavy-duty forged steel swivel construction that provides excellent resistance against impact, abrasion, and wear. This ensures that the caster can withstand demanding working conditions, reducing the need for frequent replacements and increasing overall productivity.

Smooth maneuverability is another standout feature of the Hamilton Caster Part#: S-EHD2-83GB95. Equipped with a precision-machined double ball bearing raceway, this caster offers effortless swiveling and smooth rolling motion. It allows for easy navigation around corners and tight spaces, reducing the strain on operators and enhancing operational efficiency.

The caster is also designed for versatility. Its universal mounting plate allows for easy installation on various equipment and surfaces. Whether you need to mount it on carts, racks, or any other compatible equipment, the Hamilton Caster Part#: S-EHD2-83GB95 can adapt to your specific needs.


Invest in the Hamilton Caster Part#: S-EHD2-83GB95 and experience the power of a truly heavy-duty caster that delivers reliability, durability, and exceptional performance. With its impressive features and robust construction, this caster is ready to take on your toughest challenges.
Key Features
  • Heavy-duty forged steel swivel construction for exceptional strength and durability.
  • High load capacity of 6,100 lbs for handling heavy loads with ease.
  • Precision-machined double ball bearing raceway for smooth maneuverability.
  • Universal mounting plate for easy installation on different equipment and surfaces.
  • Designed to withstand impact, abrasion, and wear in demanding environments.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton S-EHD2-83GB95 8" x 3" DuraGlide Dual Wheel Swivel Caster – 6100 lb is rated to 6100 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 6-1/8" x 7-1/2" plate and a 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 10-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

For retractable leveling casters, separate rolling capacity from leveling / stationary support capacity when both are published. While rolling, divide moving load across the casters that are extended and load-sharing; keep continuous working load near or below ~75% of the rolling rating (~25% margin). When feet are down for machining or inspection, the machine weight may concentrate on the levelers — size those pads and stems to the stationary load with the same margin mindset, and do not assume the rolling rating automatically covers locked-down duty. Uneven shop floors can land load on three points; design as if one caster or foot may carry more than its “equal share.”

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Most leveling / machine-mover casters see shop-floor temperatures where polyurethane or rubber treads are appropriate for floor protection. Bypass standard PU when the machine cell involves ovens, heat-treat adjacency, chip conveyors with hot swarf, or wash chemistry outside the tread’s published range — then evaluate phenolic, nylon, or other materials listed on the PDP. Leveling foot pads (when separate from the wheel) follow their own material and floor-load rules; do not equate wheel compound limits with pad limits. If the cell is ambient and floors are finished concrete, PU or similar resilient treads usually remain the first choice for roll-in positioning.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

Retractable leveling units are often repositioned by hand, pallet jack, or occasional powered assist. If your process includes regular towing or AGV docking with side scrub, a conventional kingpin swivel can loosen or brinell for the same reasons as on carts: thrust loads the central pin and race faces repeatedly. Prefer kingpinless or otherwise side-load-capable swivel sections when powered lateral loads are planned; many leveling casters are optimized for positioning and lock-down rather than continuous tugger duty. Match the swivel construction to how the machine actually moves between cells, and use the leveling function for stationary accuracy — not as a substitute for a tow-rated raceway.

Hamilton S-EHD2-83GB95 8
Hamilton S-EHD2-83GB95 8" x 3" DuraGlide Dual Wheel Swivel Caster – 6100 lb | CasterHQ

$1,163.00

Technical Specifications

Specifications

Identification
Part Number / SKUS-EHD2-83GB95
Replacement Wheel Part NoW-831-GB95-3/4
Core
Load Capacity6100 lbs
Wheel Diameter8"
Wheel Width3"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).10-1/2"
Rig TypeSwivel
BrakeNo Brake
Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle.2-1/2"
Number of Wheels2 (dual wheel)
Mounting
Mount StylePlate
Plate Size6-1/8" x 7-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.4-1/8" x 6-1/8"
Recommended Mounting Bolt1/2"
Wheel
Wheel MaterialPolyurethane
Wheel ColorGray Poly On Black Center
Bearing TypePrecision Sealed Ball Bearing
Construction
Frame / FinishCrimson Powder
Temperature Range-5°F to 160°F
Unit Weight66 lbs
Compliance
Buy AmericanYes
Reference Dimensions
10-1/2" OVERALL HEIGHT 8" x 3" WHEEL DIA x W 6-1/8" x 7-1/2" PLATE
Overall Height10-1/2"
Wheel8" x 3"
Top Plate6-1/8" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Wheel MaterialPolyurethane
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 6100 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size6-1/8" x 7-1/2"
Bolt Pattern4-1/8" x 6-1/8"
Rig TypeSwivel
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
