Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

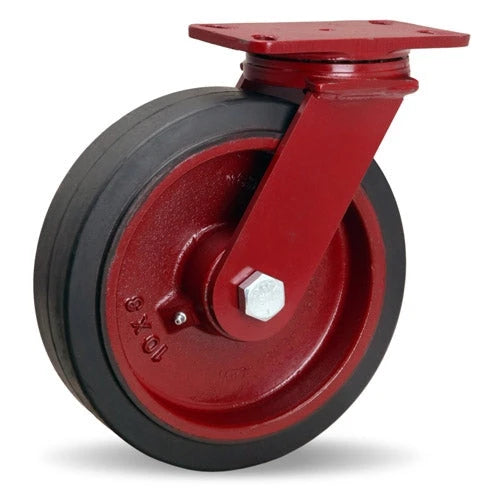

This Hamilton S-FM-10RH 10" x 2 1/2" Mold-On Rubber Swivel Caster – 790 lb is rated to 790 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Rubber wheel with a 2-1/2" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$362.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 2-1/2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 790 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Rubber |
| Wheel Core Material | Iron |
| Frame Material | Zinc Plated Steel |
10" x 2-1/2" Rubber on Steel Swivel Caster – 1000 lb | CasterHQ
10" x 2-1/2" · 1000 lbs
$288
10" x 2-1/2" Thermoplastic Rubber Swivel Caster – 1000 lb | CasterHQ
10" x 2-1/2" · 1000 lbs
$288
10" x 2-1/2" Ductile Steel Rigid Caster – 1500 lb | CasterHQ
10" x 2-1/2" · 1500 lbs
$280
View all 10′ x 2-1/2′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 790 lbs | 10" × 2-1/2"Rubber | Swivel | — | $362.00 | Viewing | |
| 1000 lbsHeavier duty | 10" × 2-1/2"Rubber | Swivel | 11-1/2" | $288.00 | View → | |
| 1000 lbsHeavier duty | 10" × 2-1/2"Gray Rubber | Swivel | 11-1/2" | $288.00 | View → | |
| 1500 lbsHeavier duty | 10" × 2-1/2"Ductile Iron | Rigid | 11-1/2" | $280.00 | View → | |
| 1500 lbsHeavier duty | 10" × 2-1/2"Ductile Iron | Swivel | 11-1/2" | $139.99 | View → |
