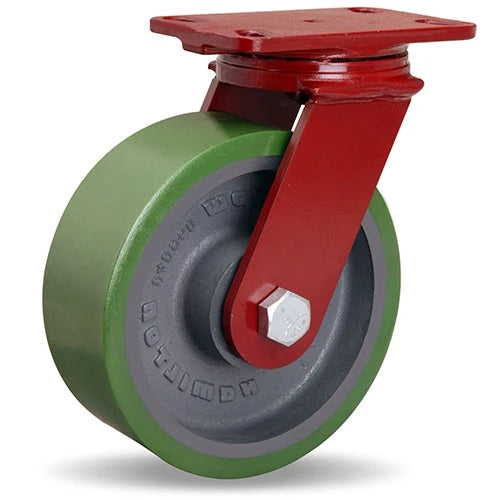

Hamilton ForgeMaster Swivel Caster with 8" x 3" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton ForgeMaster Swivel Caster with 8" x 3" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$398.00 USD - $551.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-FM-83DB

Product Overview

Hamilton ForgeMaster Swivel Caster with 8" x 3" Duralast Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Introducing the Hamilton Caster Part#: S-FM-83DB, the ultimate solution for all your heavy-duty material handling needs! This top-of-the-line caster is meticulously engineered to provide unrivaled performance, durability, and ease of movement, making it an indispensable addition to your industrial and commercial equipment.

With a remarkable load capacity of 2200 lbs, the Hamilton S-FM-83DB effortlessly carries hefty loads with smooth precision. Its robust construction ensures it can withstand the harshest environments, making it ideal for factories, warehouses, workshops, and more.

The Hamilton S-FM-83DB is designed for optimal maneuverability, allowing you to navigate tight spaces and corners with exceptional ease. Its cutting-edge engineering minimizes rolling resistance, reducing the effort required to move heavy loads, which ultimately enhances productivity and reduces strain on your operators.

Crafted from high-quality materials, this caster guarantees long-lasting performance, saving you from frequent replacements and maintenance costs. Its reliability makes it a trusted choice for demanding applications where dependable performance is non-negotiable.

Featuring a sleek design, the Hamilton S-FM-83DB adds a touch of modernity to your equipment without compromising on strength. Its smooth operation and noiseless mobility ensure a quieter work environment, promoting a more focused and productive workspace.

Whether you're transporting pallets, machinery, or heavy equipment, the Hamilton S-FM-83DB is the ultimate workhorse, delivering the exceptional quality and performance you can rely on.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 2200
Wheel Diameter (in.) 8
Wheel Face (in.) 3
Overall Height (in.) 10.25
Swivel Offset (in.) 2.25
Mounting Plate (in.) 4 1/2 x 6 1/2
Bolt Hole 1 (in.) 2 7/16 x 4 15/16
Bolt Hole 2 (in.) 3 3/8 x 5 1/4
Mounting Bolt (in.) 0.5
Caster Color/Finish Crimson Powder
Wheel Type Duralast

Wheel Color/Finish Green Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-830-DB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 31
Caster Rig Type Integral Forged Kingpin

Key Features

Load Capacity: 2200 lbs
Smooth and precise movement
Excellent maneuverability
Resilient and durable construction
Reduces rolling resistance for easier operation
Long-lasting performance and reliability
Sleek and modern design
Noiseless mobility for a quieter work environment.
