Hamilton ForgeMaster Swivel Caster with 8" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton ForgeMaster Swivel Caster with 8" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$514.00 USD - $667.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-FM-83EGB

Product Overview

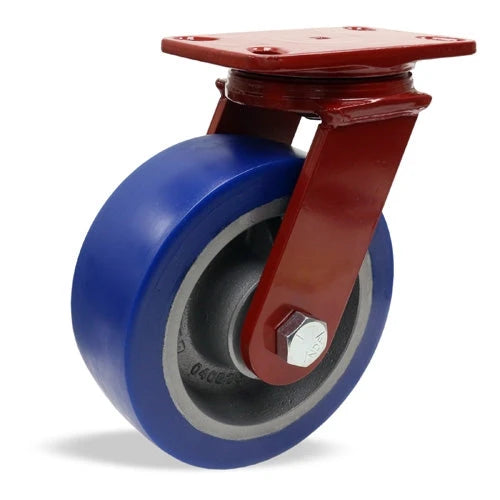

Hamilton ForgeMaster Swivel Caster with 8" x 3" Ergo-Glide XT 1" thick Polyurethane (82A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Introducing the Hamilton Caster Part#: S-FM-83EGB – a reliable and robust solution to meet your heavy-duty material handling needs! Built with precision engineering and top-quality materials, this caster is designed to enhance the efficiency and productivity of your operations, making it an indispensable tool in various industrial settings.

The Hamilton S-FM-83EGB caster boasts an impressive load capacity of 2200 lbs, ensuring it can handle substantial weights with ease. Whether you're moving large equipment, machinery, or industrial supplies, this caster delivers the strength and stability required for the job.

Crafted for smooth maneuverability, this caster glides effortlessly across various surfaces, providing you with seamless control and reducing the effort required for transportation. Its reliable performance guarantees a consistent and dependable experience every time, allowing you to focus on your tasks without worry.

Durability is at the heart of the Hamilton S-FM-83EGB caster's design. It is constructed from high-quality materials, ensuring longevity and resistance to wear and tear. This means you can count on this caster to withstand the rigors of daily use in demanding environments, keeping your operations running smoothly for years to come.

With a focus on safety, this caster has been thoughtfully engineered to minimize risks and enhance overall workplace security. The careful design prevents unwanted tipping or instability during movement, contributing to accident prevention and ensuring a secure working environment.

In summary, the Hamilton Caster Part#: S-FM-83EGB is a heavy-duty workhorse that combines strength, durability, and reliability to meet the demands of your industrial material handling tasks. Invest in this caster today and experience a seamless, efficient, and safe operation.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 2200
Wheel Diameter (in.) 8
Wheel Face (in.) 3
Overall Height (in.) 10.25
Swivel Offset (in.) 2.25
Mounting Plate (in.) 4 1/2 x 6 1/2
Bolt Hole 1 (in.) 2 7/16 x 4 15/16
Bolt Hole 2 (in.) 3 3/8 x 5 1/4
Mounting Bolt (in.) 0.5
Caster Color/Finish Crimson Powder
Wheel Type Ergo-Glide XT

Wheel Color/Finish Blue Poly On Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-831-EGB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 31
Caster Rig Type Integral Forged Kingpin

Key Features

Load capacity: 2200 lbs
Smooth maneuverability for easy transportation
Constructed from high-quality materials for durability
Designed with a focus on safety and stability
Ideal for various industrial applications.
