HAMILTON

Hamilton 3" High Heat Rigid Caster R-HL-3HSB | 550°F Rated

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
3" x 1-3/8"
Capacity
300 lbs
Overall Height
5"
Plate Size
3-1/8" x 4-1/8"
BHP
1-3/4" x 3" and 2-3/8" x 3-3/8"
Bolt
5/16"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

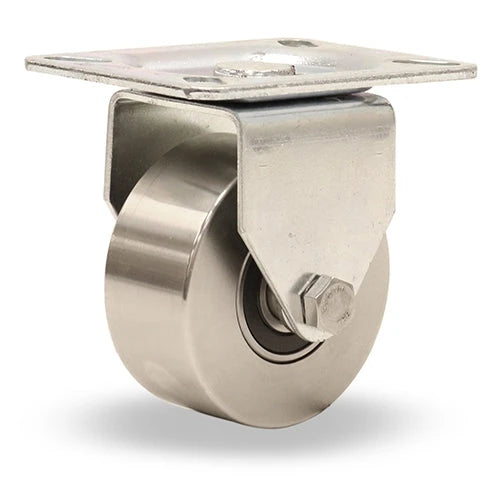

Hamilton High Heat Hi-Lo Rigid Caster - R-HL-3HSB

3" x 1 3/8" Stainless Steel Wheel | High Heat 550° F Capacity | 1/2" Stainless Steel Shielded Precision Ball Bearings

Resilient & Reliable - The High Heat Rigid Solution

Discover the endurance of the R-HL-3HSB Hamilton High Heat Hi-Lo Rigid Caster, engineered for performance at temperatures up to 550° F. This high heat caster, featuring a 3" x 1 3/8" stainless steel wheel, is designed to withstand the rigors of extreme environments while maintaining a smooth operational flow with its 1/2" high heat stainless steel shielded precision ball bearings.

Enhance Operations in High-Temperature Conditions

Employ the R-HL-3HSB in your high-temperature applications and benefit from its unparalleled heat resistance coupled with smooth maneuverability. This caster is an indispensable component for high-heat industrial environments, promising minimal downtime and maximum efficiency.

Expert Advice for High-Temperature Caster Solutions

Selecting the right caster for high-heat conditions can be challenging. Our Hamilton Caster Specialists are at your service, offering expert advice to ensure you find the perfect match for your needs. Contact us Monday through Friday, 8 am - 5 pm, for professional guidance and support.

Key Features

Top 10 Features of the Hamilton R-HL-3HSB High Heat Rigid Caster

  • 1. Rated for temperatures up to 550°F for high heat applications.
  • 2. Equipped with a 3" x 1 3/8" stainless steel wheel, ensuring durability.
  • 3. Features 1/2" high heat stainless steel shielded precision ball bearings for smooth movement.
  • 4. Resilient to harsh environments, perfect for industrial use.
  • 5. Stainless steel composition offers corrosion resistance.
  • 6. Precision ball bearings ensure reduced friction and wear.
  • 7. Rigid design allows for easy durability and control.
  • 8. Shielded bearings provide added protection against contaminants.
  • 9. Easy to install with multiple mounting options.
  • 10. Backed by Hamilton's industry-leading warranty for peace of mind.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Hamilton R-HL-3HSB High Heat Rigid Caster

Superior Heat Resistance

Designed to withstand temperatures as high as 550°F, the Hamilton R-HL-3HSB Rigid Caster is an ideal choice for applications that demand high heat tolerance, from industrial ovens to autoclaves.

Unmatched Durability

The caster’s wheel is crafted from premium stainless steel, which resists corrosion and maintains integrity even under extreme conditions, ensuring a long-lasting, reliable performance.

Precision Movement

Equipped with 1/2" high heat stainless steel shielded precision ball bearings, the caster offers a smooth and controlled rigid action that enhances maneuverability across various surfaces.

Enhanced Contaminant Protection

The inclusion of shielded ball bearings not only reduces friction and wear but also provides a safeguard against environmental contaminants, prolonging the lifespan of the caster.

Easy Installation and Trusted Warranty

This caster comes with multiple mounting options to suit various applications, paired with Hamilton's industry-leading warranty, offering both convenience and peace of mind to customers.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton R-HL-3HSB 3" x 1 3/8" Stainless Rigid Caster – 550°F is rated to 300 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Metal wheel with a 1-3/8" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.

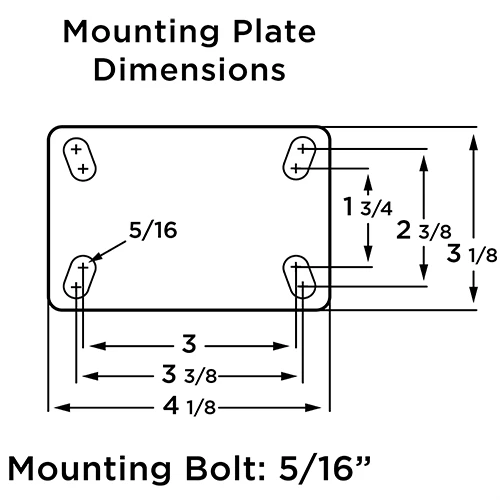

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 3-1/8" x 4-1/8" plate and a 1-3/4" x 3" and 2-3/8" x 3-3/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Rigid caster. Rigid casters track straight for directional stability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for Up to 550°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Metal wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 5". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

Treat published load capacity as a continuous working limit, not a one-time peak. Divide total loaded cart weight (product + rack + fixtures) by the number of casters that share the load, then size so that working load per caster stays at or below about 75% of the rated capacity (a common ~25% margin). On four-wheel oven racks, uneven floors and thermal growth can shift load to two or three casters; if your process routinely parks on imperfect floors, engineer for three-caster support rather than perfect four-way share. Confirm ratings at your process temperature — heat softens many wheel compounds and can lower usable capacity versus room-temperature catalog numbers.

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Bypass standard polyurethane when continuous or cyclic wheel temperatures exceed the urethane compound’s published service range (often well below typical bake / washdown-after-heat zones). Spec glass-filled nylon or phenolic (or other high-temp tread systems on the PDP) when racks enter ovens, proofers, or wash tunnels where tread softening, bond failure, or flat spots would appear with PU. Match the wheel to the hottest surface the tread sees, including residual heat after exit, and verify chemical exposure (cleaners, fats, steam) against the material notes on this product. When in doubt, ask for the temperature and duty cycle — we will confirm whether this SKU or a high-temp alternate is the right call.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

A traditional kingpin clamps the swivel assembly through a single axial fastener. Repeated side thrust from towing, tugger lines, or AGV path corrections loads that pin and the raceway faces in ways ordinary cart steering does not. Over time that shows up as elongated kingpin holes, brinelled races, or loose swivels. Kingpinless (or forged integrated) raceways distribute thrust through a continuous race path instead of relying on that central pin — better suited when side loads are planned into the duty cycle. Oven-rack and high-temp lines still need the correct wheel material first; upgrade the swivel construction when towing or powered side loads are part of the application, not only when heat is.

Hamilton R-HL-3HSB 3
Hamilton R-HL-3HSB 3" x 1 3/8" Stainless Rigid Caster – 550°F | CasterHQ

$213.00

Technical Specifications

Specifications

Identification
Part Number / SKUR-HL-3HSB
Replacement Wheel Part NoW-313-HSB-1/2
Core
Load Capacity300 lbs
Wheel Diameter3"
Wheel Width1-3/8"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).5"
Rig TypeRigid
BrakeNo Brake
Mounting
Mount StylePlate
Plate Size3-1/8" x 4-1/8"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.1-3/4" x 3" and 2-3/8" x 3-3/8"
Recommended Mounting Bolt5/16"
Wheel
Wheel MaterialMetal
Wheel Core MaterialStainless Steel
Wheel ColorStainless
Bearing TypeHH SS Precision Shielded Ball Bearing
Construction
Frame / FinishSteel, Bright Zinc Plated
Temperature RangeUp to 550°F
Unit Weight4.5 lbs
Compliance
Buy AmericanYes
Reference Dimensions
5" OVERALL HEIGHT 3" x 1-3/8" WHEEL DIA x W 3-1/8" x 4-1/8" PLATE
Overall Height5"
Wheel3" x 1-3/8"
Top Plate3-1/8" x 4-1/8"
Bolt Pattern1-3/4" x 3" and 2-3/8" x 3-3/8"
Wheel MaterialMetal
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 300 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size3-1/8" x 4-1/8"
Bolt Pattern1-3/4" x 3" and 2-3/8" x 3-3/8"
Rig TypeRigid
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more 3-1/8" x 4-1/8" plate casters →
