All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Custom made to order. All sales final.
Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.

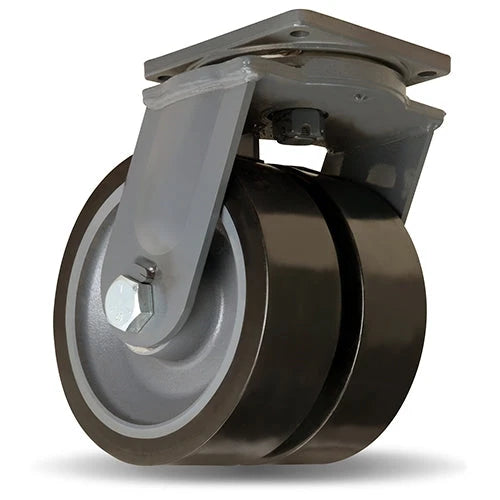

Designed for demanding environments, the Hamilton Maxi-Duty Dual Swivel Caster excels in durability and load-bearing capabilities. Its 16" x 5" DuraGlide-AGV Polyurethane (95A) on a robust Cast Iron Center ensures resilience and optimal performance across various applications.
Smooth operation is guaranteed with the inclusion of the 1-1/4" Sealed Precision Ball Bearing. This allows for effortless maneuverability, reduced maintenance needs, and long-lasting service even under the heaviest of loads.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Featuring a modern Platinum Powder finish, the Hamilton Swivel Caster exudes professionalism. The wheel's distinctive Gray Poly on Black Center finish ensures that its visual appeal complements its top-tier performance.
The Hamilton Swivel Caster distinguishes itself with its high-quality build. Its wheel core, crafted from Cast Iron, promises lasting durability and resistance. Moreover, the Polyurethane tread material guarantees a resilient and smooth roll. Enhanced with Precision Sealed Ball Bearings, this caster offers reduced friction for a seamless experience.

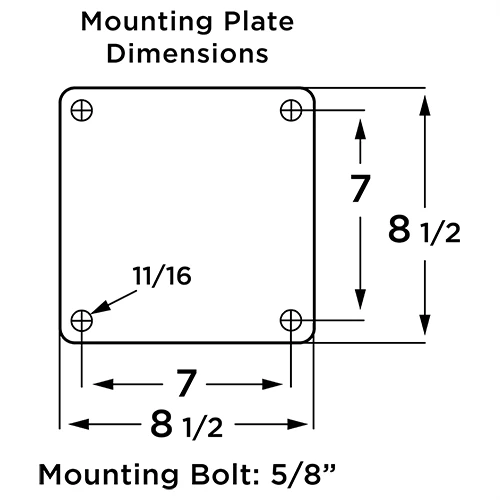

Simplify your installation with the Hamilton Swivel Caster. Its 8.5-inch square Mounting Plate promises stability, while the 7x7 inch Bolt Hole and 0.625-inch Mounting Bolt ensure a straightforward setup process.
This Hamilton S-MDD-AGV-165GB95 16" x 5" Poly Dual Swivel Caster – 15400 lb is rated to 15400 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 5" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -5°F to 200°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 19-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$3,804.00
| Identification | |
|---|---|
| Part Number / SKU | S-MDD-AGV-165GB95 |
| Replacement Wheel Part No | W-1651-AGV-GB95-1-1/4 |
| Core | |
| Load Capacity | 15400 lbs |
| Wheel Diameter | 16" |
| Wheel Width | 5" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)?Floor to top of mounting plate (or stem shoulder). | 19-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)?Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 3-1/4" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Wheel Color | Gray Poly on Black Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Frame / Finish | Platinum Powder |
| Temperature Range | -5°F to 200°F |
| Unit Weight | 208 lbs |
| Compliance | |
| Buy American | Yes |
Free CAD files · no login, no email
STEP .step most common3D solid for SolidWorks, Inventor, Fusion 360, Creo, NXReference geometry. Free for design use; redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 11700 lbsLighter duty | 16" × 5"Polyurethane | Rigid | 19-3/4" | $7,640.00 | View → | |
| 11700 lbsLighter duty | 16" × 5"Polyurethane | Swivel | 19-3/4" | $7,503.00 | View → | |
| 15400 lbs | 16" × 5"Polyurethane | Swivel | 19-1/2" | $3,804.00 | Viewing | |
| 15400 lbsSame capacity | 16" × 5"Polyurethane | Rigid | 19-1/2" | $2,875.00 | View → | |
| 35000 lbsHeavier duty | 16" × 5"Nylon | Rigid | 21-5/8" | $15,212.00 | View → |
