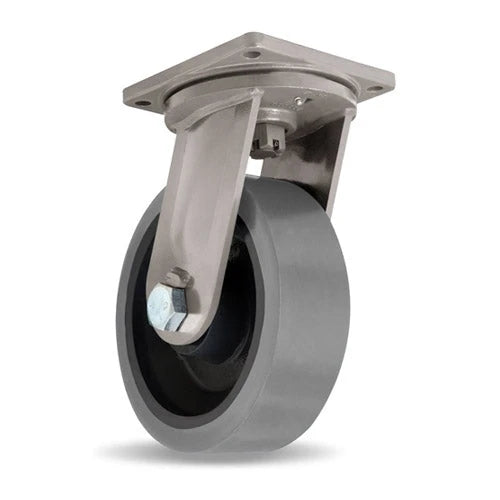

This Hamilton S-MD-1242SGB95 12" x 4" Poly Swivel Caster – 7200 lb is rated to 7200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 4" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,758.00
| Identification | |
| Brand | Hamilton |
| Dimensions & Mounting | |
| Wheel Diameter | 12" |
| Wheel Tread Width | 4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 7200 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Frame Material | Zinc Plated Steel |
Hamilton R-MD-1242SGB95 12" x 4" DuraGlide Rigid Caster – 7200 lb | CasterHQ
12" x 4" · 7200 lbs
$1,218
Hamilton 12" x 4" DuraGlide Dual Wheel Rigid Caster – 7150 lb | CasterHQ
12" x 4" · 7150 lbs
$15,966
Hamilton R-MD-124SWF70D 12" x 4" UltraGlide Rigid Caster – 6800 lb | CasterHQ
12" x 4" · 6800 lbs
$1,173
View all 12" x 4" casters & wheels · heavy transfer carts & tow-line trailers →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 6800 lbsLighter duty | 12" × 4"Polyurethane | Swivel | — | $1,373.00 | View → | |
| 7150 lbsLighter duty | 12" × 4"Cast Iron | Rigid | — | $15,966.00 | View → | |
| 7200 lbs | 12" × 4"Polyurethane | Swivel | — | $1,758.00 | Viewing | |
| 7200 lbsSame capacity | 12" × 4"Polyurethane | Rigid | — | $1,218.00 | View → | |
| 7800 lbsHeavier duty | 12" × 4"Polyurethane | Rigid | — | $1,307.00 | View → |
