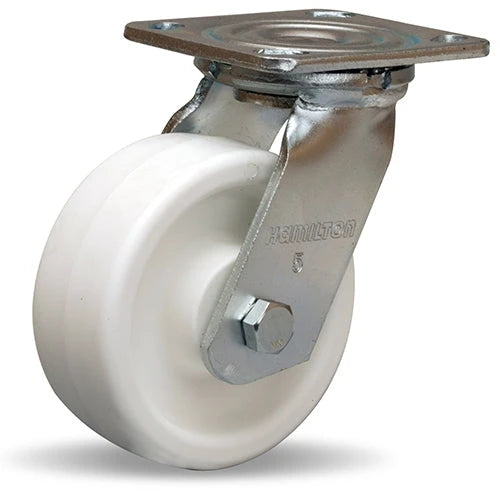

The Hamilton S-525-AZ Swivel Caster is engineered for reliability and versatility. This standard duty caster, featuring a 5" x 2" Aqualite Polyolefin (75D) wheel and a 3/4" Delrin bearing, is designed to provide smooth and efficient mobility across various surfaces.
Aqualite Polyolefin wheels offer exceptional durability and resistance to chemicals and impacts. The 75D hardness ensures a perfect balance between toughness and floor protection, making it ideal for both industrial and commercial use.
Fitted with high-quality 3/4" Delrin bearings, the S-525-AZ caster ensures reduced friction and smooth operation, enhancing the ease of movement and control.
This caster is well-suited for a variety of environments, including warehouses, retail spaces, and workshops, offering reliable performance where it matters most.
Designed for straightforward installation, the S-525-AZ caster is also low maintenance, ensuring long-term service with minimal effort.
Opting for the Hamilton S-525-AZ Swivel Caster means choosing a product that combines quality, performance, and durability. Perfect for standard duty applications, it enhances the mobility and functionality of your equipment.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Introducing the Hamilton S-525-AZ Swivel Caster, a top-choice mobility solution for standard duty applications. This caster features a robust 5" x 2" Aqualite Polyolefin wheel coupled with a 3/4" Delrin bearing, delivering unmatched durability and smooth operation in diverse environments.
The Aqualite Polyolefin wheel provides excellent chemical resistance and impact durability. Its 75D hardness rating ensures it can withstand various industrial conditions while protecting floor surfaces from damage.
Equipped with a 3/4" Delrin bearing, the S-525-AZ caster ensures reduced friction for effortless motion, making it ideal for equipment that requires precise and frequent movement.
This versatile caster is perfect for various settings, from industrial trolleys to retail display units. Its design is conducive to use in spaces where floor care is essential.
The S-525-AZ caster is designed with the user in mind, featuring easy installation and low maintenance requirements. It's a practical, efficient mobility solution for businesses valuing productivity and simplicity.
Available for online purchase, the Hamilton S-525-AZ Swivel Caster is ready to be shipped directly to you, ensuring a quick and hassle-free upgrade to your equipment's mobility.
This Hamilton S-525-AZ 5" x 2" Aqualite Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyolefin wheel with a 2" tread width. Polyolefin is economical, lightweight, washable, and resists water, oils, and many chemicals while carrying solid loads on smooth floors.

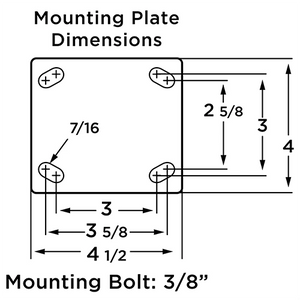

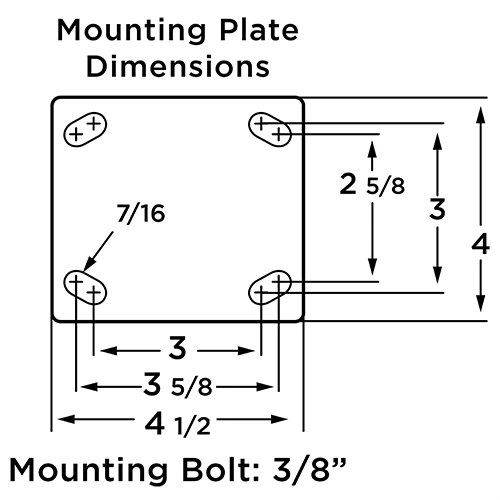

This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-5/8" and 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyolefin wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 6-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$66.00
| Identification | |
|---|---|
| Part Number / SKU | S-525-AZ |
| Replacement Wheel Part No | W-520-AZ-3/4 |
| Core | |
| Load Capacity | 1250 lbs |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 6-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 1-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 4" x 4-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 2-5/8" x 3-5/8" and 3" x 3" |
| Recommended Mounting Bolt | 3/8" |
| Wheel | |
| Wheel Material | Polyolefin |
| Wheel Core Material | Polyolefin |
| Wheel Color | Solid White |
| Bearing Type | Delrin Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -20°F to 180°F |
| Unit Weight | 6 lbs |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1100 lbsLighter duty | 5" × 2"Polyurethane | Swivel with Total Lock Brake + brake | 6-1/2" | $86.00 | View → | |
| 1200 lbsLighter duty | 5" × 2"Polyurethane | Swivel | 6-1/2" | $67.00 | View → | |
| 1250 lbs | 5" × 2"Polyolefin | Swivel | 6-1/2" | $66.00 | Viewing | |
| 2600 lbsHeavier duty | 5" × 2"Polyolefin | Swivel with Brake, Rigid + brake | 6-1/2" | $113.00 | View → |
