Hamilton S-MS-8SPB 8" Swivel Caster | Ergo-Glide Poly Wheel

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order and ships in about 4-6 weeks. Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Wheel
8" x 2"
Capacity
1250 lbs
Overall Height
9-1/2"
Plate Size
5" x 5-1/2"
BHP
4" x 4" and 4-1/8" x 4-1/2"
Bolt
3/8"
Made to Order · 4-6 Weeks Lead
Quantity
Add 49 more for 5% off
10% off unlocked
1
Same-day ship cutoff: noon CT (Mon-Fri)
Your price per unit:
Order total:

Volume pricing: 50+ saves 5% · 100+ saves 10% · 200+ saves 15% · fleet orders: request custom pricing

PO Net 30 ACH Tax-Exempt VISA AMEX DISCOVER
Business Purchasing
  • Purchase orders accepted for approved accounts
  • Net 30 terms for qualified businesses
  • ACH, credit card, and tax-exempt ordering
  • Bulk and contract pricing on fleet quantities
Download CAD
Jordan W., Founder Bob C., Director of Sales
Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.
Call now
Product Overview

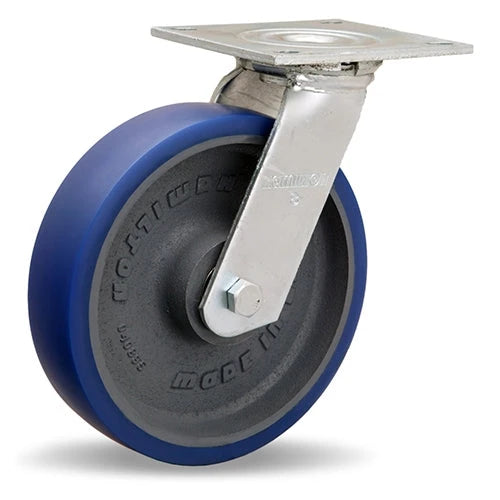

Hamilton S-MS-8SPB Medium Service Swivel Caster | 8" x 2" Ergo-Glide Wheel

Hamilton S-MS-8SPB Medium Service Swivel Caster

Superior Design and Durability

The Hamilton S-MS-8SPB Swivel Caster is a symbol of innovation and resilience. Equipped with an 8" x 2" Ergo-Glide Polyurethane wheel mounted on a sturdy cast iron core, it provides unmatched durability and smooth movement across various surfaces.

Exceptional Mobility

Featuring 1/2" sealed precision ball bearings, the caster ensures fluid motion and effortless maneuverability, making it ideal for a range of medium service applications.

Versatile Usage

The S-MS-8SPB is versatile and reliable for use in both industrial and commercial environments. Its high-quality polyurethane wheel is suitable for both indoor and outdoor applications, offering a balance between toughness and floor protection.

Easy Installation and Maintenance

Designed for ease of installation and low maintenance, the caster is a practical choice for enhancing the mobility of equipment and furniture.

Why Choose the Hamilton S-MS-8SPB?

Choosing the Hamilton S-MS-8SPB Caster means opting for a balance of quality, performance, and durability. Its ergonomic design and efficient operation make it a preferred choice for a wide range of applications.

Key Features
Top 10 Features of Hamilton S-MS-8SPB Swivel Caster

Top 10 Features of Hamilton S-MS-8SPB Swivel Caster

  • 8" x 2" Ergo-Glide Polyurethane Wheel: Offers smooth movement and durability.
  • Cast Iron Core: Enhances strength and load-bearing capacity.
  • 1/2" Sealed Precision Ball Bearings: Provides fluid motion and reduced friction.
  • Medium Service Design: Ideal for both commercial and industrial use.
  • Swivel Mechanism: Allows for 360-degree maneuverability and precise control.
  • Ergonomic Wheel Material: Reduces effort and increases efficiency.
  • Versatile Application: Suitable for a wide range of environments.
  • Robust Construction: Ensures longevity and consistent performance.
  • Easy Installation: Simplifies setup and integration into equipment.
  • E-commerce Optimized: Available for quick and easy online purchase.
Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.

Payment & procurement terms

Purchase orders — accepted from approved accounts
Net 30 terms — available on approved credit
ACH & all major cards — Visa, MC, Amex, Discover
Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information
Hamilton S-MS-8SPB Medium Service Swivel Caster | Advanced Mobility Solution

Hamilton S-MS-8SPB Medium Service Swivel Caster

Product Overview

Introducing the Hamilton S-MS-8SPB Swivel Caster, a medium-duty mobility solution designed for superior performance. Its robust 8" x 2" Ergo-Glide Polyurethane wheel, mounted on a durable cast iron core, provides a seamless balance of strength and efficiency for various applications.

Exceptional Design and Quality

Crafted for medium service tasks, this caster features a high-quality polyurethane wheel known for its durability and floor-friendly properties. The cast iron core adds to its strength, making it reliable under substantial loads.

Advanced Maneuverability

The S-MS-8SPB is equipped with 1/2" sealed precision ball bearings, ensuring smooth and effortless movement. Its swivel mechanism allows for full 360-degree rotation, providing unparalleled control and maneuverability in tight spaces.

Versatility in Application

Ideal for a wide range of environments, from industrial floors to commercial settings, the S-MS-8SPB caster is versatile and efficient. Its non-marking polyurethane wheel makes it especially suitable for indoor applications where floor care is essential.

Ease of Installation and Maintenance

This caster is not only designed for performance but also for ease of installation and minimal maintenance, ensuring a hassle-free experience for users.

Why Choose the Hamilton S-MS-8SPB?

Opting for the Hamilton S-MS-8SPB means selecting a caster that excels in both quality and functionality. Its ergonomic design and effective operation make it a top choice for enhancing the mobility of your equipment or furniture.

Frequently Asked Questions

What is the load capacity of this caster?+

This Hamilton S-MS-8SPB 8" x 2" Ergo-Glide Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What wheel does this caster use?+

This caster runs a Polyurethane wheel with a 2" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

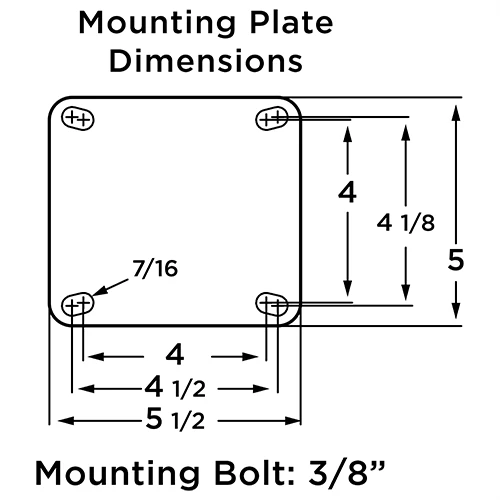

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount with a 5" x 5-1/2" plate and a 4" x 4" and 4-1/8" x 4-1/2" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

Is this a swivel or rigid caster, and how does the brake work?+

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

What temperature range can this caster handle?+

Rated for -5°F to 160°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

What floors and applications is it best for?+

The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.

What is the overall mounted height?+

The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Technical FAQs & Engineering Notes

Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.

How do I properly factor the 25% safety margin into a multi-caster cart configuration?

For retractable leveling casters, separate rolling capacity from leveling / stationary support capacity when both are published. While rolling, divide moving load across the casters that are extended and load-sharing; keep continuous working load near or below ~75% of the rolling rating (~25% margin). When feet are down for machining or inspection, the machine weight may concentrate on the levelers — size those pads and stems to the stationary load with the same margin mindset, and do not assume the rolling rating automatically covers locked-down duty. Uneven shop floors can land load on three points; design as if one caster or foot may carry more than its “equal share.”

When must an application bypass standard polyurethane and spec high-temperature glass-filled nylon or phenolic wheels?

Most leveling / machine-mover casters see shop-floor temperatures where polyurethane or rubber treads are appropriate for floor protection. Bypass standard PU when the machine cell involves ovens, heat-treat adjacency, chip conveyors with hot swarf, or wash chemistry outside the tread’s published range — then evaluate phenolic, nylon, or other materials listed on the PDP. Leveling foot pads (when separate from the wheel) follow their own material and floor-load rules; do not equate wheel compound limits with pad limits. If the cell is ambient and floors are finished concrete, PU or similar resilient treads usually remain the first choice for roll-in positioning.

Why do traditional kingpin swivel raceways fail prematurely under towing or AGV side-thrust loads compared to kingpinless alternatives?

Retractable leveling units are often repositioned by hand, pallet jack, or occasional powered assist. If your process includes regular towing or AGV docking with side scrub, a conventional kingpin swivel can loosen or brinell for the same reasons as on carts: thrust loads the central pin and race faces repeatedly. Prefer kingpinless or otherwise side-load-capable swivel sections when powered lateral loads are planned; many leveling casters are optimized for positioning and lock-down rather than continuous tugger duty. Match the swivel construction to how the machine actually moves between cells, and use the leveling function for stationary accuracy — not as a substitute for a tow-rated raceway.

Hamilton S-MS-8SPB 8
Hamilton S-MS-8SPB 8" x 2" Ergo-Glide Swivel Caster – 1250 lb | CasterHQ

$187.00

Technical Specifications

Specifications

Identification
Part Number / SKUS-MS-8SPB
Replacement Wheel Part NoW-820-SPB-1/2
Core
Load Capacity1250 lbs
Wheel Diameter8"
Wheel Width2"
Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder).9-1/2"
Rig TypeSwivel
BrakeNo Brake
Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle.2-3/16"
Mounting
Mount StylePlate
Plate Size5" x 5-1/2"
Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes.4" x 4" and 4-1/8" x 4-1/2"
Recommended Mounting Bolt3/8"
Wheel
Wheel MaterialPolyurethane
Wheel Core MaterialCast Iron
Wheel ColorBlue Poly on Gray Center
Bearing TypePrecision Sealed Ball Bearing
Construction
Frame / FinishBright Zinc Plated
Temperature Range-5°F to 160°F
Unit Weight16 lbs
Compliance
Buy AmericanYes
Reference Dimensions
9-1/2" OVERALL HEIGHT 8" x 2" WHEEL DIA x W 5" x 5-1/2" PLATE
Overall Height9-1/2"
Wheel8" x 2"
Top Plate5" x 5-1/2"
Bolt Pattern4" x 4" and 4-1/8" x 4-1/2"
Wheel MaterialPolyurethane
Illustrative caster profile drawn to this item's proportions - dimensions are manufacturer specification values. Confirm against the technical table before ordering.
Will This Caster Handle Your Load?
Enter your loaded weight. We derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.
Rated capacity: 1250 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →
Fitment & Interchange
MountPlate
Plate Size5" x 5-1/2"
Bolt Pattern4" x 4" and 4-1/8" x 4-1/2"
Rig TypeSwivel
BrakeNo Brake
Replacing an existing caster? Match the bolt pattern first, then wheel size · more plate casters →
