Hamilton Stainless Steel Champion Swivel Caster with 10" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton Stainless Steel Champion Swivel Caster with 10" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$815.00 USD - $928.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-EHD-13SWF95

Product Overview

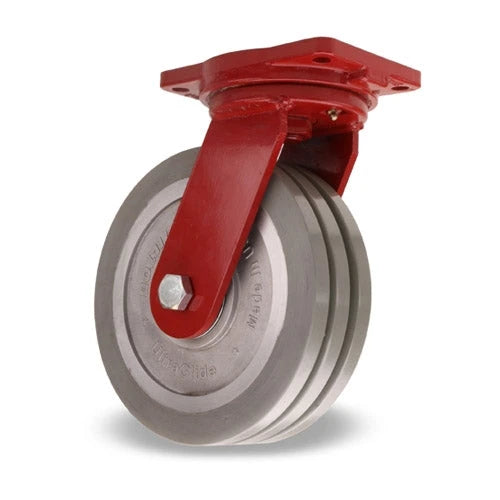

Hamilton Stainless Steel Champion Swivel Caster with 10" x 3" UltraGlide™ (95A) Triple Wheel Grey Tread on Aluminum Core with 3/4" Sealed Precision Ball Bearings

Upgrade your heavy-duty material handling equipment with the Hamilton Caster Part#: S-EHD-13SWF95. Designed to deliver exceptional performance and durability, this caster is the ideal choice for demanding industrial applications. With its impressive features and reliable construction, it's a versatile solution that will enhance the efficiency of your operations.

The Hamilton Caster Part#: S-EHD-13SWF95 is engineered to handle heavy loads effortlessly. Its robust construction ensures long-lasting performance, even in the most challenging environments. The caster features a 13-inch wheel diameter, providing excellent stability and maneuverability for your equipment. With a load capacity of up to 2,000 pounds, it's capable of tackling demanding tasks with ease.

One of the standout features of this caster is its 95 Shore A hardness polyurethane wheel. This high-quality wheel material offers exceptional durability, making it resistant to wear, tear, and impact. The polyurethane construction also provides excellent shock absorption, reducing vibrations and ensuring a smoother ride.

The S-EHD-13SWF95 caster boasts a swivel design, allowing for easy maneuverability and precise control. The swivel functionality enables smooth direction changes, enhancing productivity and reducing the strain on operators. The swivel section is equipped with a precision ball bearing for smooth rotation and effortless rolling.

To ensure maximum reliability and longevity, the caster is equipped with a heavy-duty forged steel mounting plate. This sturdy plate provides exceptional strength and stability, allowing the caster to withstand heavy loads and rough terrains. It is designed to resist bending, warping, and other forms of damage, ensuring consistent performance even in demanding conditions.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 4500 lbs
Wheel Diameter (in.) 10
Wheel Face (in.) 3
Overall Height (in.) 12.5
Swivel Offset (in.) 2.5
Mounting Plate (in.) 6 1/8 x 7 1/2
Bolt Hole 1 (in.) 4 1/8 x 6 1/8
Mounting Bolt (in.) 0.5
Caster Color/Finish Crimson Powder
Wheel Type UltraGlide™ 24-7
Wheel Color/Finish Grey Tread on Alum Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1030-SWF95-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 32
Caster Rig Type Integral Forged Kingpin
Wheel Core Material Aluminum

Key Features

95 Shore A hardness polyurethane wheel for durability and shock absorption.
Swivel design for easy maneuverability and precise control.
Precision ball bearing for smooth rotation and effortless rolling.
Heavy-duty forged steel mounting plate for maximum strength and stability.
Load capacity of up to 2,000 pounds for heavy-duty applications.
