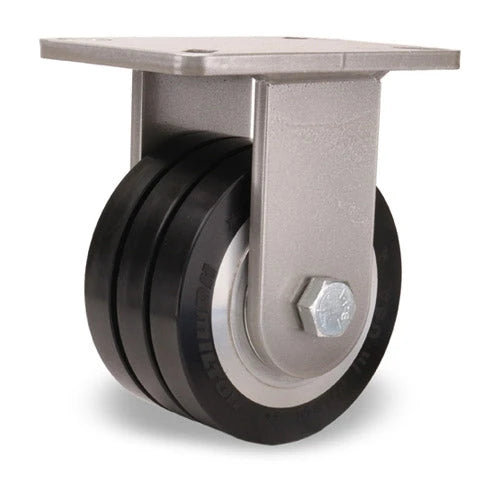

This Hamilton R-SEC-63SWF70D 6" x 3" UltraGlide Rigid Caster – 3100 lb is rated to 3100 lbs per wheel. Divide the total load across the number of wheels in your rig and keep working loads within about 75-80% of the rating for continuous use.
This is a Polyurethane wheel. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.
6" diameter x 3" tread width. Verify your axle diameter and hub/bore length against your existing wheel before ordering.
Yes. Most wheels can be paired with a swivel or rigid rig to build a complete caster. Tell us your mount and load and we will spec the rig - request it on our bulk pricing page.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
Application guidance for load margin, wheel materials, and swivel construction. Confirm ratings against your duty cycle, floor, and temperature before final spec.
Start with total system weight (payload + structure + fixtures), divide by casters that actually share the load, and keep continuous working load per caster at or below roughly 75% of catalog capacity (~25% margin). Heavy-duty kingpinless frames are often used on uneven floors, docks, and towed trains where dynamic load transfer is common — do not assume perfect four-caster share. If impact, drop-offs, or shock loading is expected, treat the margin as a floor, not a stretch goal, and confirm capacity at the wheel diameter and tread you select on this PDP. Dynamic and side loads are separate from static catalog ratings; call out towing or AGV duty when you quote so we can sanity-check the configuration.
Stay with polyurethane when floors are relatively smooth, temperatures stay inside the PU service window, and you want floor protection plus rollability. Move to phenolic, glass-filled nylon, or other high-temp / high-hardness options when heat, certain chemicals, or very high point loads push past what standard PU can sustain. Kingpinless construction solves swivel durability under thrust; it does not raise the wheel’s temperature or chemical limit. Use the wheel material and temperature fields on this product (and sibling SKUs) to match the environment — heat duty and side-thrust duty are independent selection axes.
Kingpin swivels concentrate clamping and much of the axial stack through one pin. Towing hitches, AGV corrections, and side scrub introduce lateral and moment loads that work that pin and the race faces harder than hand-pushed carts. Typical early wear modes include kingpin stretch or hole elongation, race brinelling, and increasing swivel play. Kingpinless designs replace that single-pin stack with a machined or forged raceway that carries thrust through the race path, which is why they are the usual spec for powered towing and higher side-load industrial carts. Pair kingpinless swivels with a wheel and bearing package rated for the same duty — the swivel upgrade alone does not fix an undersized tread or bearing.
$544.00
| Identification | |
|---|---|
| Part Number / SKU | R-SEC-63SWF70D |
| Replacement Wheel Part No | W-630-SWF70D-3/4 |
| Core | |
| Load Capacity | 3100 lbs |
| Wheel Diameter | 6" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 8" |
| Wheel | |
| Wheel Material | Polyurethane |
| Wheel Color | Black Tread on Alum Center |
| Bearing Type | Precision Sealed Ball Bearing |
| Construction | |
| Unit Weight | 17 lbs |
| Compliance | |
| Buy American | Yes |
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 3000 lbsLighter duty | 6" × 3"Polyurethane | Swivel | 8" | $375.00 | View → | |
| 3000 lbsLighter duty | 6" × 3"Polyurethane | Swivel | 8" | $438.00 | View → | |
| 3100 lbs | 6" × 3"Polyurethane | — | 8" | $544.00 | Viewing | |
| 3200 lbsHeavier duty | 6" × 3"Nylon | — | 8" | $627.00 | View → | |
| 4000 lbsHeavier duty | 6" × 3"Cast Iron | Swivel | 7-1/2" | $141.00 | View → |
