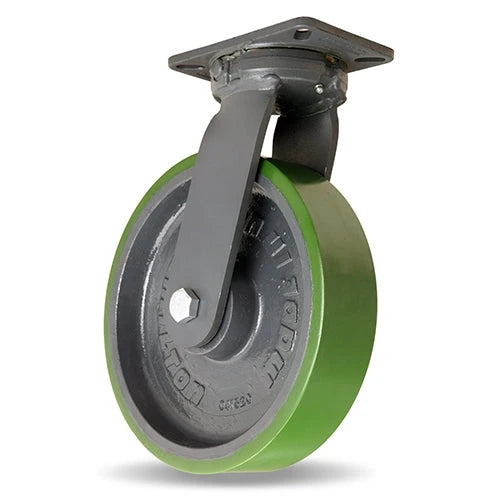

Hamilton Super Endurance™ Kingpinless Swivel Caster with 12" x 3" Duralast® Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

The Hamilton Part#: S-SEC-12DB is a cutting-edge component designed to deliver exceptional efficiency and durability in a wide range of industrial applications. With its advanced features and robust construction, this high-quality part is engineered to meet the demands of even the most challenging industrial environments.

The Hamilton Part#: S-SEC-12DB is a cutting-edge component designed to deliver exceptional efficiency and durability in a wide range of industrial applications. With its advanced features and robust construction, this high-quality part is engineered to meet the demands of even the most challenging industrial environments.

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 3500 lbs
Wheel Diameter (in.) 12
Wheel Face (in.) 3
Overall Height (in.) 15.5
Swivel Offset (in.) 2.375
Mounting Plate (in.) 5 1/4 x 7 1/4
Bolt Hole 1 (in.) 3 3/8 x 5 1/4
Bolt Hole 2 (in.) 4 1/8 x 6 1/8
Mounting Bolt (in.) 0.5
Caster Color/Finish Platinum Powder
Wheel Type Duralast®
Wheel Color/Finish Green Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1230-DB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 60
Caster Rig Type Kingpinless
Mounting Plate Length (in.) 7.25
Mounting Plate Width (in.) 5.25

• Superior Efficiency: The S-SEC-12DB is built to optimize operational efficiency. With its innovative design and intelligent features, this part streamlines processes, minimizes downtime, and maximizes productivity. Experience a significant boost in workflow efficiency and operational effectiveness with this cutting-edge solution.

• Enhanced Durability: Built to withstand the rigors of industrial use, the S-SEC-12DB features a robust construction. It is crafted with durable materials that can withstand high temperatures, heavy loads, and harsh operating conditions. This ensures longevity and reliability, reducing the need for frequent replacements and maintenance.

• Precise Engineering: Hamilton's dedication to precision engineering is evident in every aspect of the S-SEC-12DB. From its precise dimensions to its accurate calibration, this component guarantees optimal performance and precise results. Experience enhanced control and accuracy in your industrial processes with this cutting-edge part.

• Easy Installation: The S-SEC-12DB is designed for easy installation, minimizing downtime and disruptions to your operations. Its user-friendly features and intuitive design allow for a hassle-free integration process. Save valuable time and resources with a swift and efficient setup.

• Versatile Applications: This versatile part caters to a wide range of industrial applications. Whether you need it for heavy machinery, manufacturing processes, or automation systems, the S-SEC-12DB is designed to excel. Its adaptability ensures compatibility with diverse industrial setups, providing flexibility for your specific requirements.
