![Top plate bolt pattern drawing, ["5-1/4\" x 7-1/4\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-1574-top-plate-drawing_100x.png?v=1792329019)

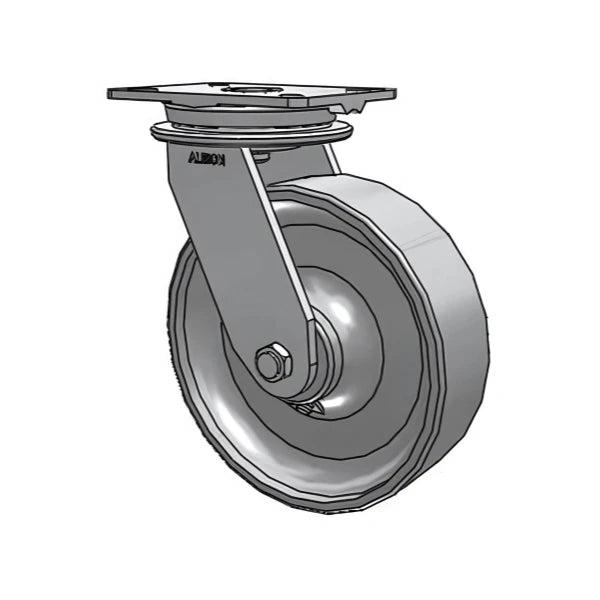

Move heavy machinery and equipment with ease using our premium HD Raceway 10" forged steel swivel caster. Built to endure demanding applications, this caster boasts a remarkable 3500 lb load capacity and a durable forged steel construction. The 7.25" x 5.25" top plate ensures a secure attachment, while the 10" wheel diameter provides smooth rolling performance.
Our team of caster specialists are here to answer your questions and help you find the perfect solution for your needs. Contact us Monday through Friday, 8 am to 5 pm, to speak with a knowledgeable representative.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The HD Raceway 10" forged steel swivel caster is a premium product designed to meet the demanding needs of industrial and commercial applications. Crafted with precision and built to last, this caster offers a combination of strength, durability, and performance that sets it apart from the competition.
At the heart of this caster is its robust forged steel construction. This material is renowned for its exceptional strength and resistance to wear and tear, ensuring that your caster will withstand the rigors of heavy-duty use. The forged steel construction also provides excellent shock absorption, protecting your equipment from damage.
With a load capacity of 3500 pounds, this caster is capable of handling even the heaviest equipment. The swivel design offers flexibility and maneuverability, allowing you to easily move your machinery in any direction. The 10" wheel diameter ensures smooth rolling performance, even on uneven surfaces.
The 7.25" x 5.25" top plate provides a secure attachment to your equipment, while the 12.5" mount height is suitable for a wide range of applications. The caster's corrosion-resistant finish protects it from rust and wear, ensuring long-lasting performance. Installation is simple and straightforward, allowing you to get your caster up and running quickly.
When you choose the HD Raceway 10" forged steel swivel caster, you're investing in a product that is built to last. Our commitment to quality is reflected in every aspect of this caster, from its materials to its design. Trust HD Raceway for reliable performance and exceptional value.
This Albion 10" Forged Steel Swivel Caster – 3500 lb is rated to 3500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Metal wheel with a 3" tread width. This wheel material balances load capacity, rolling ease, and floor protection for the intended application.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Metal wheel performs best on smooth concrete and finished warehouse floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 10". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$664.00
| Identification | |
|---|---|
| Part Number / SKU | 90FS10501S |
| Core | |
| Load Capacity | 3500 lbs |
| Wheel Diameter | 7-1/4" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 10" |
| Rig Type | Swivel |
| Brake | No Brake |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel | |
| Wheel Material | Metal |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | Rockwell 80 B |
| Wheel Color | Clear Coat Enamel |
| Bearing Type | Roller Bearing |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | Up to 800°F |
Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 3" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
![Top plate bolt pattern drawing, ["5-1/4\" x 7-1/4\""] plate, slotted bolt holes](http://casterhq.com/cdn/shop/files/casterhq-c8g-1574-top-plate-drawing_1000x.png?v=1792329019)
