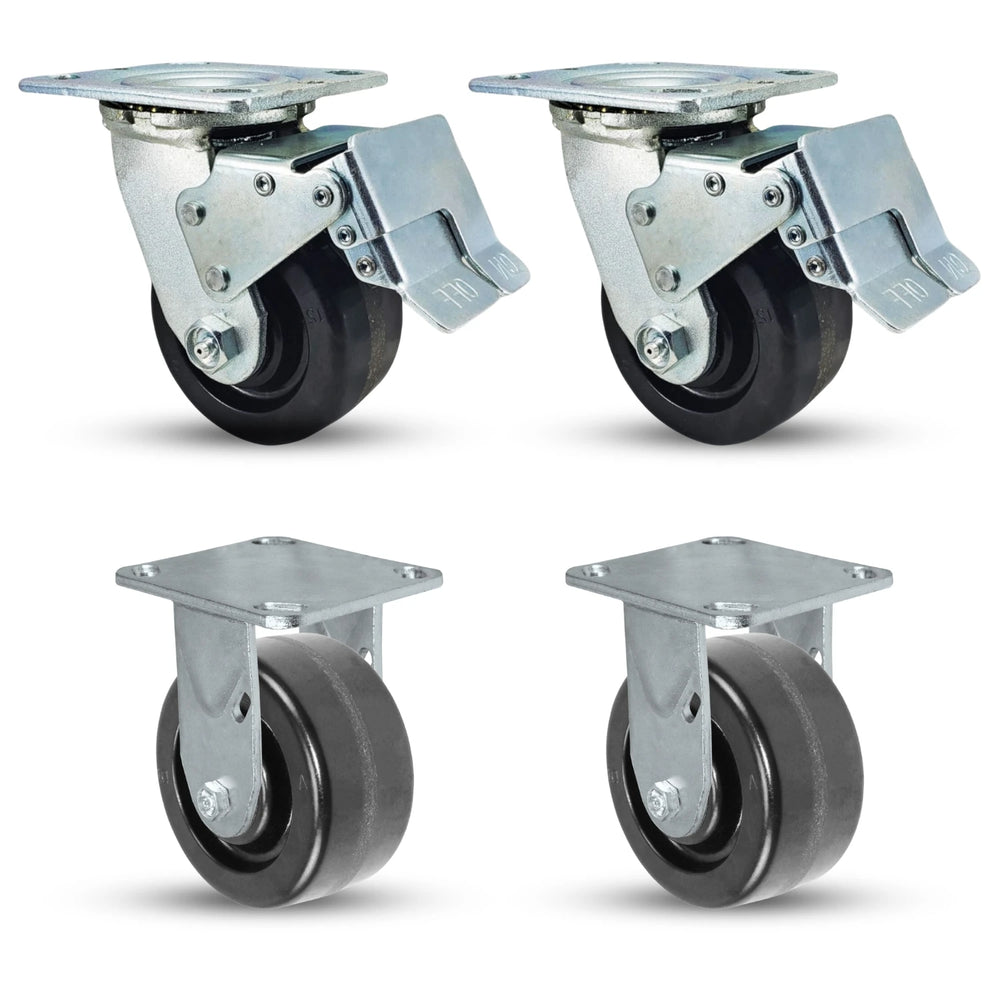

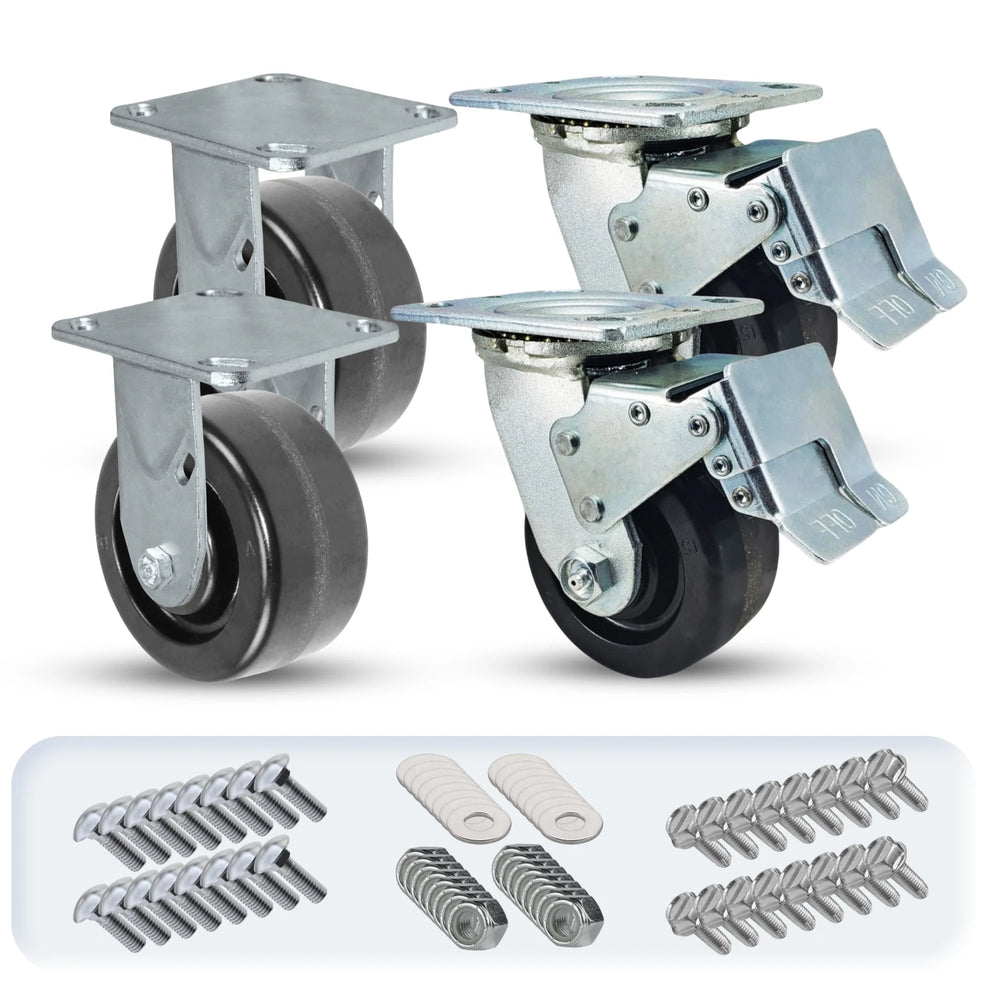

Introducing our 4" x 2" Total Lock Caster Set, a comprehensive solution for enhanced mobility and secure stationary use. This set features a remarkable total capacity of 3,200 lbs, combining two total locking casters with two rigid casters. Each caster is equipped with a high-quality black phenolic wheel, making them ideal for various applications.
Whether for industrial platforms, heavy-duty trolleys, or dynamic workshop environments, this Total Lock Caster Set guarantees optimal performance in both mobile and stationary states, adapting to your specific needs.
Our caster set not only provides robust and reliable mobility but also ensures safety and stability in stationary modes. Ideal for heavy-duty tasks, this set is a must-have for any setting requiring both dynamic movement and secure anchoring.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Introducing our 4-inch by 2-inch Total Lock Caster Set, an ideal combination of mobility and stability for a range of applications. This set, with a total capacity of 3,200 lbs, includes two total locking casters and two rigid casters, each featuring a high-quality black phenolic wheel, suitable for industrial, warehousing, and workshop environments.
The Total Lock Caster Set features a dual metal pedal brake system on locking casters, providing robust and reliable braking. The double ball swivel raceway offers smooth swivel action, while the grease fittings in the swivel raceway and on the zerk axle ensure easy maintenance and longevity. The bright zinc finish adds corrosion resistance and a clean appearance, enhancing both functionality and aesthetics.
Each caster in the set is designed to handle up to 800 lbs, making the total set capacity 3,200 lbs. Additionally, being NSF listed and approved, these casters meet stringent standards for public health protection, assuring quality and safety in every application.
This 4" x 2" Phenolic Total Lock Caster Set 4" x 4-1/2" Plate – 3200 lb is rated to 3200 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Phenolic wheel with a 2" tread width. Phenolic carries high loads on smooth, hard floors and tolerates heat, but transmits more shock than an elastomer tread.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Rigid with Brake caster with a wheel brake. Rigid casters track straight for directional stability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for Up to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Phenolic wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

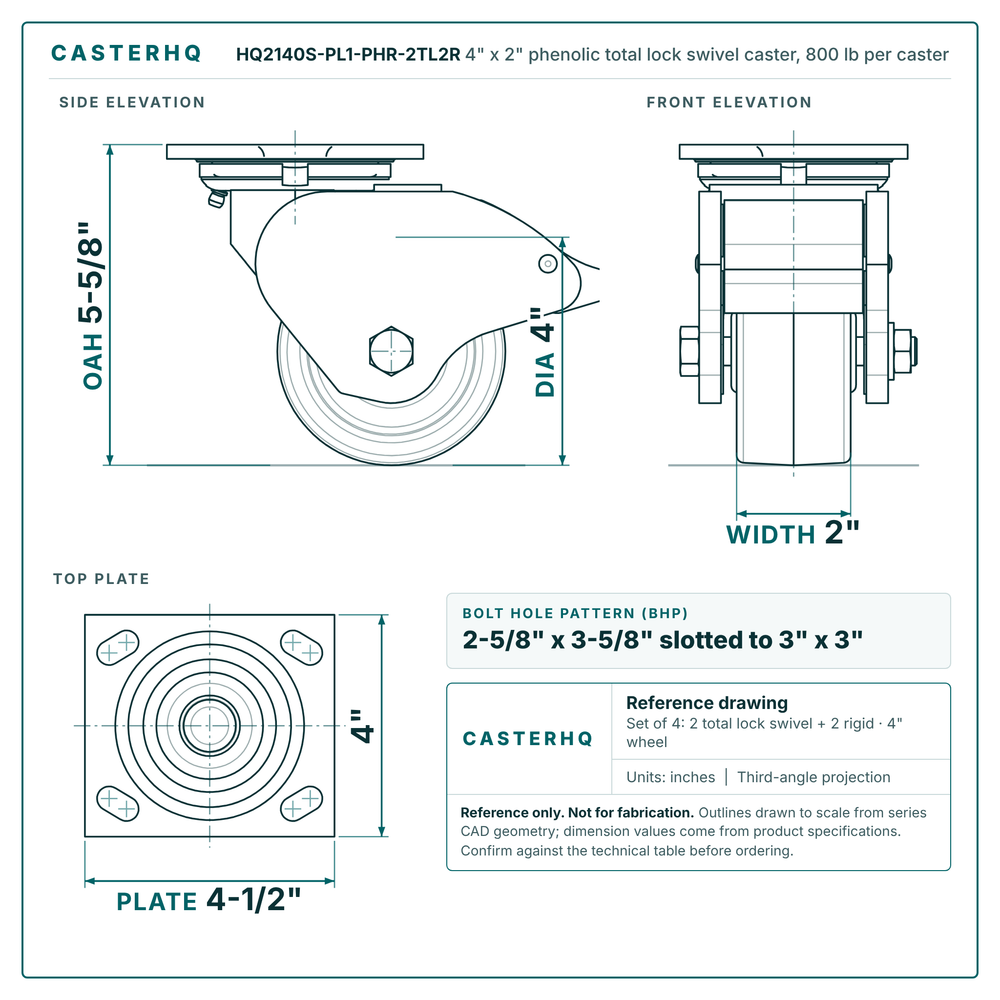

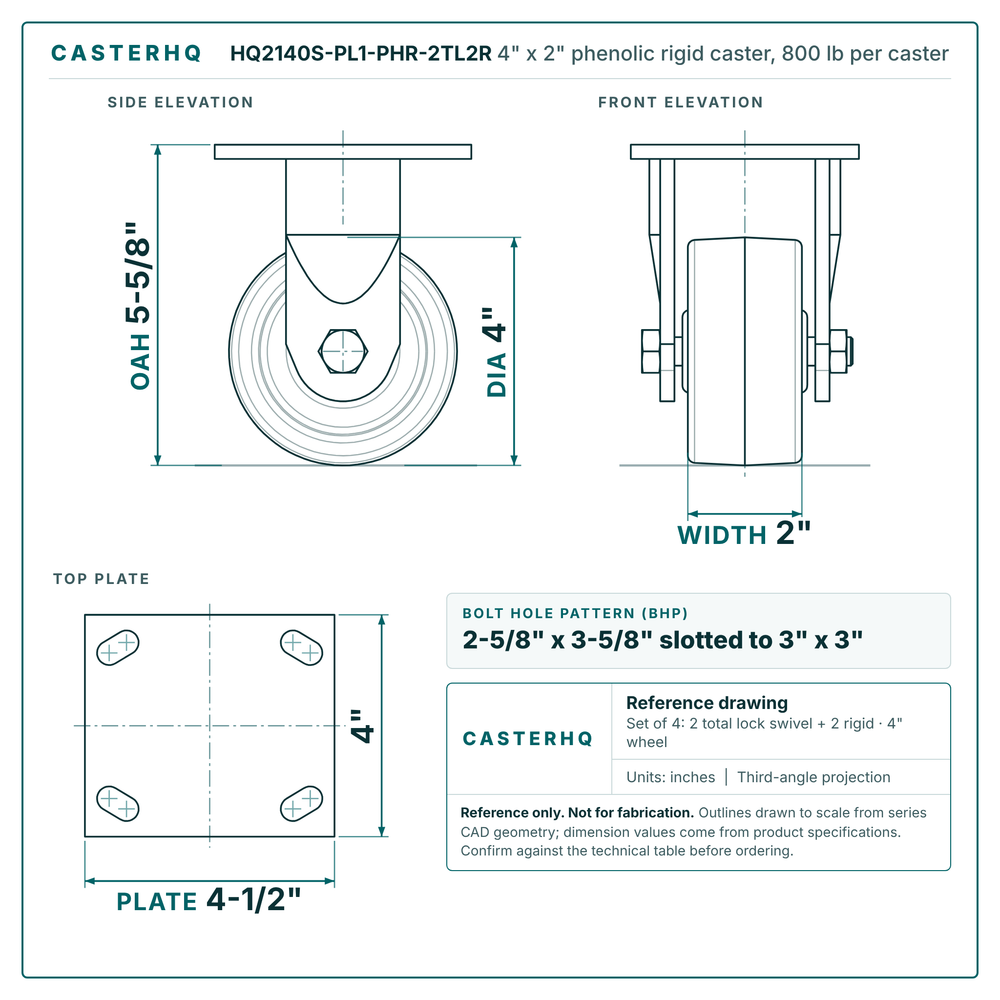

The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$152.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5-5/8" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Rigid with Brake |
| Load & Performance | |
| Wheel Capacity | 3200 lbs |
| Temp Range | Up to 250°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Wheel 2 Swivel & 2 Rigid Caster – 3,200 lb | CasterHQ
4" x 2" · 3200 lbs · Direct fit
$100
4" x 2" Phenolic Swivel & Brake Caster Set – 3,200 lb | CasterHQ
4" x 2" · 3200 lbs · Direct fit
$119
4" x 2" Phenolic Swivel Caster with Brake – 3200 lb | CasterHQ
4" x 2" · 3200 lbs · Direct fit
$138
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2800 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $237.00 | View → | |
| 2800 lbsLighter duty | 4" × 2"Cast Iron | Swivel | 5-5/8" | $121.00 | View → | |
| 3200 lbs | 4" × 2"Phenolic | Rigid with Brake + brake | 5-5/8" | $152.00 | Viewing | |
| 3200 lbsSame capacity | 4" × 2"Phenolic | Swivel, Rigid | 5-5/8" | $100.00 | View → | |
| 3200 lbsSame capacity | 4" × 2"Phenolic | Swivel with Brake + brake | 5-5/8" | $119.00 | View → |
