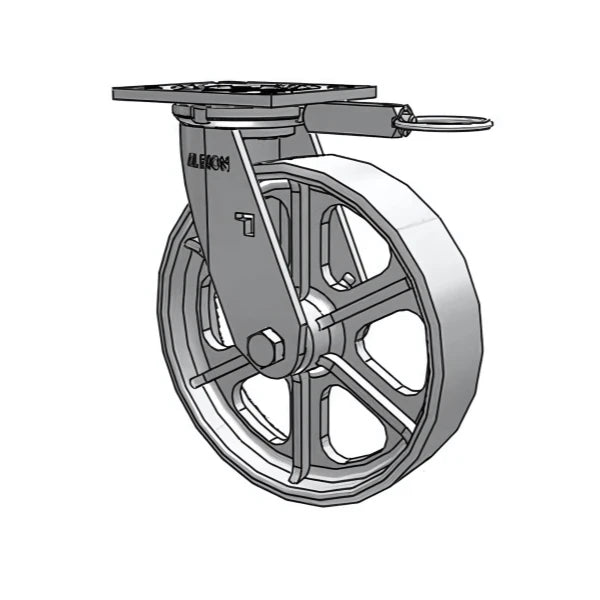

Looking for a reliable and durable caster for your heavy-duty applications? Look no further! Our industrial-grade 8" cast iron swivel caster boasts a massive 1250 lb load capacity, making it perfect for moving heavy machinery, equipment, and furniture with ease. The swivel lock provides added control and stability when needed.
Have questions about our casters or need help choosing the right one for your project? Our knowledgeable customer support team is here to assist you weekdays from 8 am to 5 pm. Contact us today and get expert advice to ensure your project's success!
Our heavy-duty swivel caster is designed to deliver exceptional performance and long-lasting durability. Here are the top 10 features that make it the ideal choice for your industrial applications:
Upgrade your equipment with our top-of-the-line swivel caster and enjoy the benefits of superior performance, durability, and value. Order yours now and take your productivity to the next level!
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our heavy-duty 8" cast iron swivel caster is a premium product designed to meet the demanding requirements of industrial applications. With its robust construction, exceptional performance, and long-lasting durability, this caster is the ideal choice for moving heavy machinery, equipment, and furniture.
Our heavy-duty swivel caster is ideal for a wide range of applications, including:
Our heavy-duty swivel caster is a reliable and durable solution for your industrial applications. With its exceptional features and benefits, it is the perfect choice for moving heavy loads with ease and efficiency. Invest in our caster today and experience the difference.
This Albion 8" x 2" Cast Iron Swivel Caster – 1250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$173.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 9.5" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
4" x 2" Ductile Steel Swivel Caster – 1,500 lb | 4-1/2" x 6-1/4" Plate | CasterHQ
4" x 2" · 1500 lbs
$57
4" x 2" Rigid Caster Yoke 4" x 4-1/2" Top Plate Zinc Plated | CasterHQ
4" x 2" · 1000 lbs
$10
4" x 2" Poly on Aluminum Swivel Caster 4-1/2" x 6-1/4" Plate – 1,000 lb | CasterHQ
4" x 2" · 1000 lbs
$63
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 4" × 2" | Rigid | 5-5/8" | $10.00 | View → | |
| 1000 lbsLighter duty | 4" × 2"Polyurethane | Swivel | 5-5/8" | $63.00 | View → | |
| 1250 lbs | 4" × 2"Cast Iron | Swivel | 9.5" | $173.00 | Viewing | |
| 1500 lbsHeavier duty | 4" × 2"Ductile Iron | Swivel | 5-5/8" | $57.00 | View → | |
| 2000 lbsHeavier duty | 4" × 2"Polyolefin | Rigid | 5-5/8" | $92.00 | View → |
